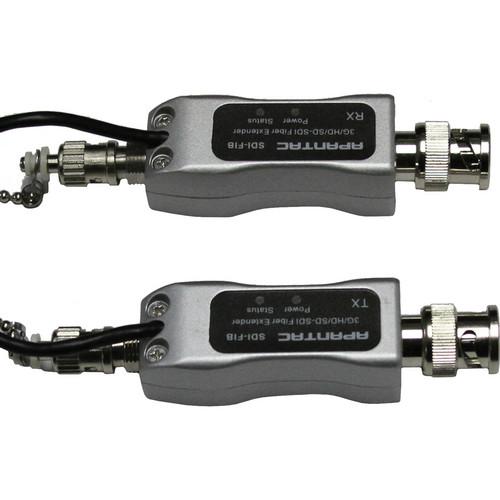

Product description The Apantac SDI-FIB MAZAMA SDI to Fiber Optic Extender comes with ST connectors. It includes a transmitter and a receiver but not the fiber optic cable. It extends SD-SDI and HD-SDI signals up to 18.64mi (30km) and 3G SDI signals up to 12.42mi (20km) over a single fiber.It is a miniature-style extension solution that supports all SDI formats up to 3G, including SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols. To prevent signal loss, input signals are equalized and outputs reclocked to 393.7’ (120 m) for 3G-SDI and 459.32’ (140 m) for HD-SDI. - Includes transmitter / extender and receiver
- Extends multi-rate HD-SDI up to 18 mi (30km) over a single fiber
- Extends multi-rate 3G-SDI up to 12.5 mi (20km) over a single fiber
- Equalized inputs and reclocked outputs up to 393.7' (120m) for 3G-SDI and up to 459.32' (140 m) for HD-SDI
- Uses single-mode or multi-mode fiber optic cable with ST connectors
- Robust miniature-style metal die-casting enclosure for harsh environments
In the Box Apantac SDI-FIB MAZAMA SDI to Fiber Optic Extender Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac SDI-FIB MAZAMA SDI to Fiber Optic Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac SDI-FIB Specs | Input | SDI-FIB-Tx Transmitter: 1 x 3G / HD / SD-SDI via 75 Ω BNC
SDI-FIB-Rx Receiver: 1 x ST via fiber | | Output | SDI-FIB-Tx Transmitter: 1 x ST via fiber
SDI-FIB-Rx Receiver: 1 x 3G / HD / SD-SDI via 75 Ω BNC | | Component | SDI-FIB-Tx Transmitter: 1310 FP laser diode
SDI-FIB-Rx Receiver: InGaAs / InP PIN photo diode | | Power Supply | 5 VDC 1.5 A (4.5 V minimum, 5.5 V maximum) | | Compatible With | Single-mode or multi-mode fiber | | Extension | Limit: 18 mi (30 km) for 1.485 Mb/s (single mode fiber) and 0.62 mi (1 km) for multi-mode fiber, 12.5 mi (20 km) for 3G (1080P) | | Fiber | Recommended Fiber Optic Cable: Glass single-mode fiber with 1310, 1550 nm with ST terminated connectors | | Power Budget | Link: Minimum 11 dB | | Power Budget | 16 dB | | Input Impedance | 75 Ω | | Data Rate | Up to 3 Gb/s | | Signal Level | 800 mVpp ± 50 mV | | Type | Optical Fiber: ST (multi-mode and single-mode) | | Number of Fibers | 1 | | Connector | 75 Ω, male BNC | | Propagation Delay | Sender: 1.5 ns
Receiver: 40 ns | | Wavelength | Sender Unit: 1290 nm (minimum), 1310 nm (typical), 1330 nm (maximum)
Receiver Unit: 1100 nm (minimum), 1310 nm (typical), 1650 nm (maximum) | | Operating Temperature | SDI-FIB-Tx Transmitter / SDI-FIB-Rx Receiver: -4 to 158°F (-20 to 70°C) | | Storage Temperature | SDI-FIB-Tx Transmitter / SDI-FIB-Rx Receiver: -22 to 185°F (-30 to 85°C) | | Humidity | SDI-FIB-Tx Transmitter / SDI-FIB-Rx Receiver: 0 to 95% RH, non-condensing | | Dimensions (W x H x D) | SDI-FIB-Tx Transmitter / SDI-FIB-Rx Receiver: 0.77 x 0.77 x 3.25" (19.50 x 19.50 x 82.70 mm) overall length | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 10.1 x 7.9 x 2.6" |
