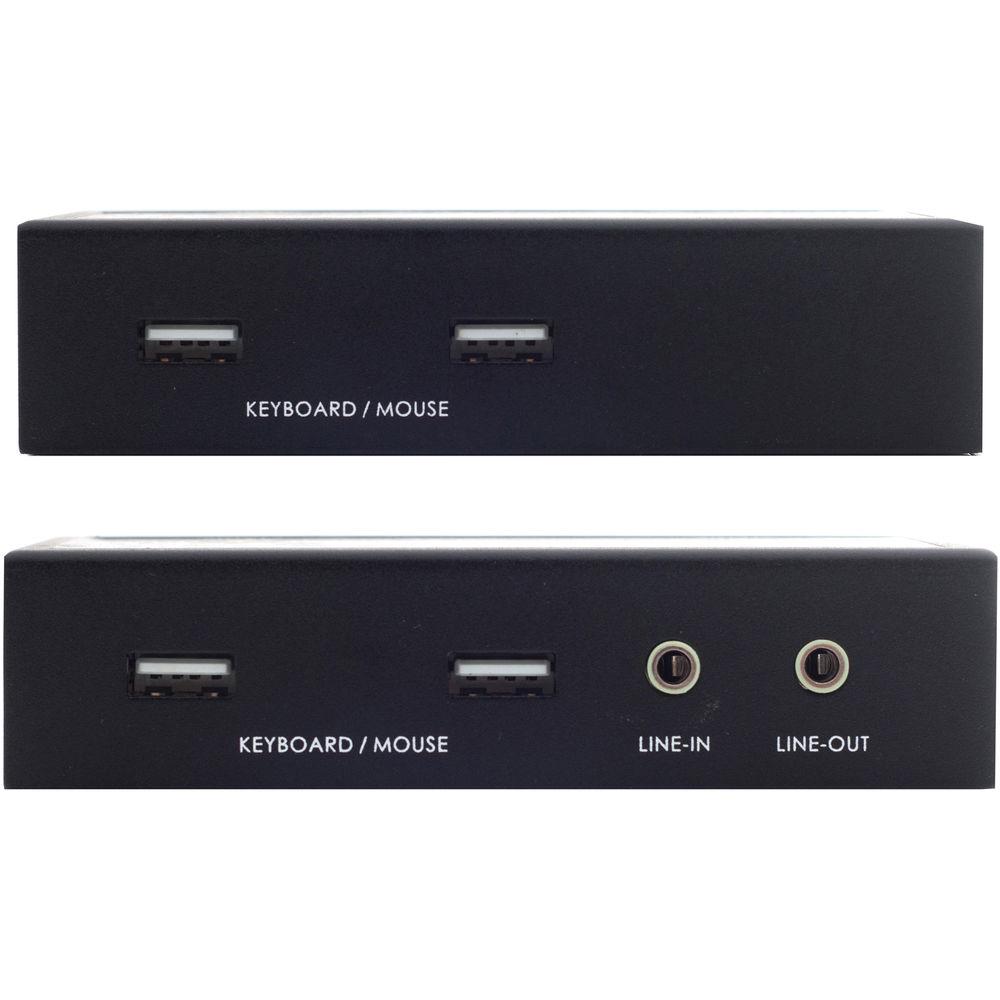

User Manual for Apantac Single Port DVI-D USB over CATx KVM-1-ED Extender & KVM-1-RD Receiver Set Click to enlarge the picture
Contents of the user manual for the Apantac Single Port DVI-D USB over
- Product category: KVM Extenders Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac KVM Extenders
 |
User manual for the Apantac Single Port DVI-D USB over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The Single Port DVI-D/USB over CATx KVM-1-ED Extender & KVM-1-RD Receiver Set from Apantac is designed to extend USB, DVI-D, and KVM signals up to 115' via a single CATx cable. It has a resolution of up to 1920x1200. This plug and play set also features remote/local monitoring and control. It supports MS-DOS, Windows, FreeBSD, Linux, Unix, and Novel operating systems. - Extend audio, USB, DVI-D, KVM signals over a single CATx cable
- Maximum DVI-D resolution of 1920x1200 up to 115'
- Plug and play - no software required
- Remote or local monitoring and control
- Supports MS-DOS, Windows, FreeBSD, Linux, Unix, and Novel operating systems
In the Box Apantac Single Port DVI-D/USB over CATx KVM-1-ED Extender & KVM-1-RD Receiver Set 3' VGA-Audio-USB Combo Cable 2 x Mounting Plates 5 VDC 1A Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac Single Port DVI-D USB over CATx KVM-1-ED Extender & KVM-1-RD Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac KVM-SET-10 Specs | Connectors | Extender:
1 x DVI-D female, input
1 x 3.5 mm phone jack, audio input
1 x 3.5 mm phone jack, audio output
1 x RJ45, output
1 x DVI-D, output
Receiver:
1 x RJ45, input
1 x DVI-D, output
2 x USB, output
1 x 3.5 mm phone jack, audio output | | Cable | DVI, USB, Audio Combo Cable | | Adjustments | Receiver: Equalizer | | Mount | Magnetic | | Operating Systems Supported | MS-DOS, Windows, FreeBSD, Linux, Unix, Novel | | Transmission Range | Up to 115' (35 m) | | Maximum Resolution | 1920 x 1200 | | Power | Extender: 5 VDC from USB
Receiver: 5 VDC, 1000 mA | | Dimensions | Each Unit: 2.4 x 4.4 x 1.1" (6.2 x 11.3 x 2.9 cm) |
