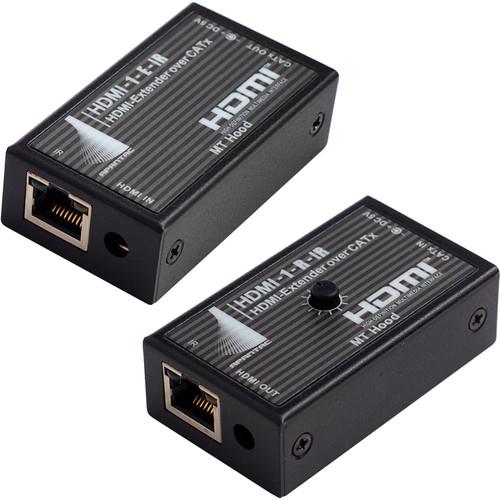

User Manual for Apantac Single-Port HDMI Extender Receiver Set with IR Click to enlarge the picture
Contents of the user manual for the Apantac Single-Port HDMI Extender Receiver Set
- Product category: Video Extenders & Repeaters Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Video Extenders & Repeaters
|
User manual for the Apantac Single-Port HDMI Extender Receiver Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The Single-Port HDMI Extender / Receiver Set with IR from Apantac is a set of one HDMI-1-E-IR extender and one HDMI-1-R-IR receiver with infrared support. The extender set is HDMI 1.3 & HDCP compliant, and supports 3D at 1080p up to 115' over a single CATx cable. - Full 480p, 720p, 1080i, 1080p support
- Supports 1080p up to 115'
- Cost-effective solution to extend HDMI signals
- IR pass-through from input to output
- No software needed, plug and play
In the Box Apantac Single-Port HDMI Extender / Receiver Set with IR Power Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac Single-Port HDMI Extender Receiver Set with IR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac HDMI-SET-7 Specs | | | Inputs | 1 x HDMI
1 x IR Emitter | | Outputs | 1 x RJ-45 | | Resolution | Maximum: 1920 x 1200 up to 115' (35 m) | | Power | 5 VDC 1000 mA | | Dimensions | 2.6 x 1.5 x 0.9" (67 x 37 x 24 mm) | | | | Input | 1 x RJ-45 | | Outputs | 1 x HDMI
1 x IR Emitter | | Control | Equalizer | | Resolution | Maximum: 1920 x 1200 up to 115' (35 m) | | Power | 5 VDC 1000 mA | | Dimensions | 2.6 x 1.5 x 0.9" (67 x 37 x 24 mm) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.4 x 6.4 x 3.1" |
