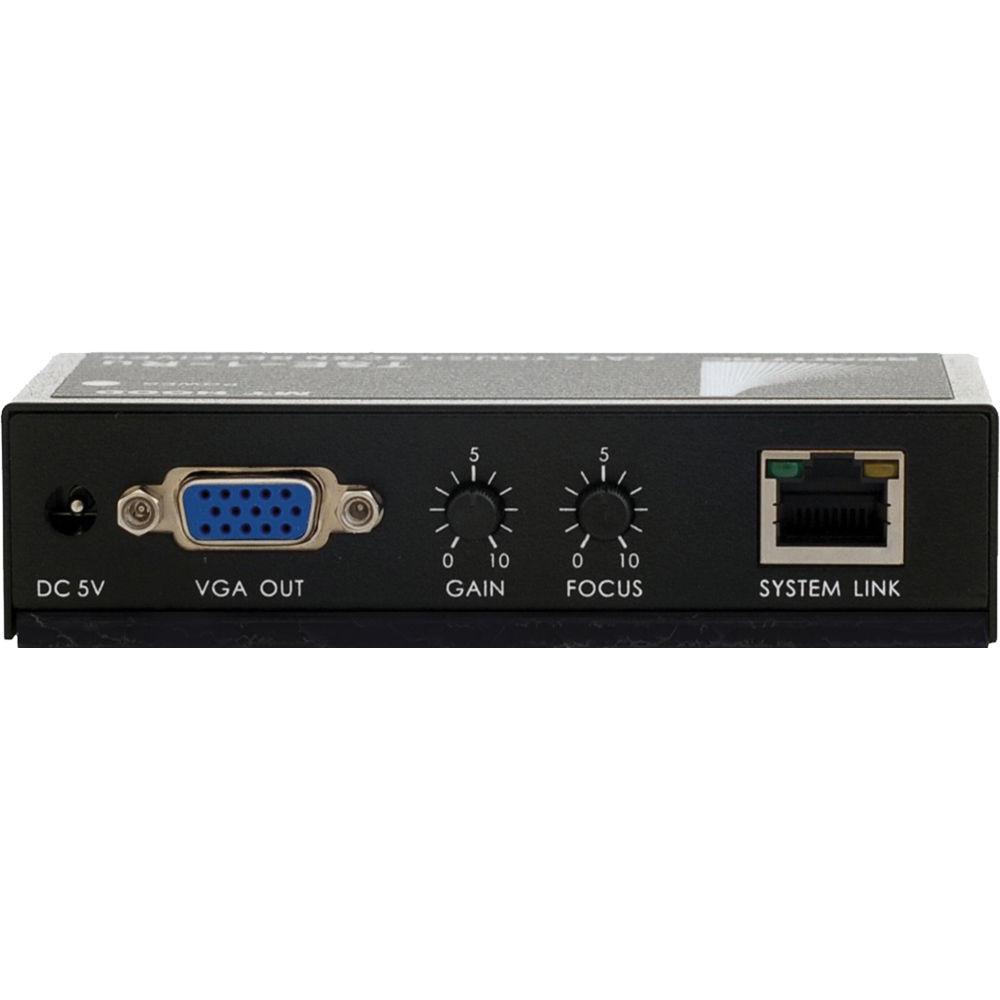

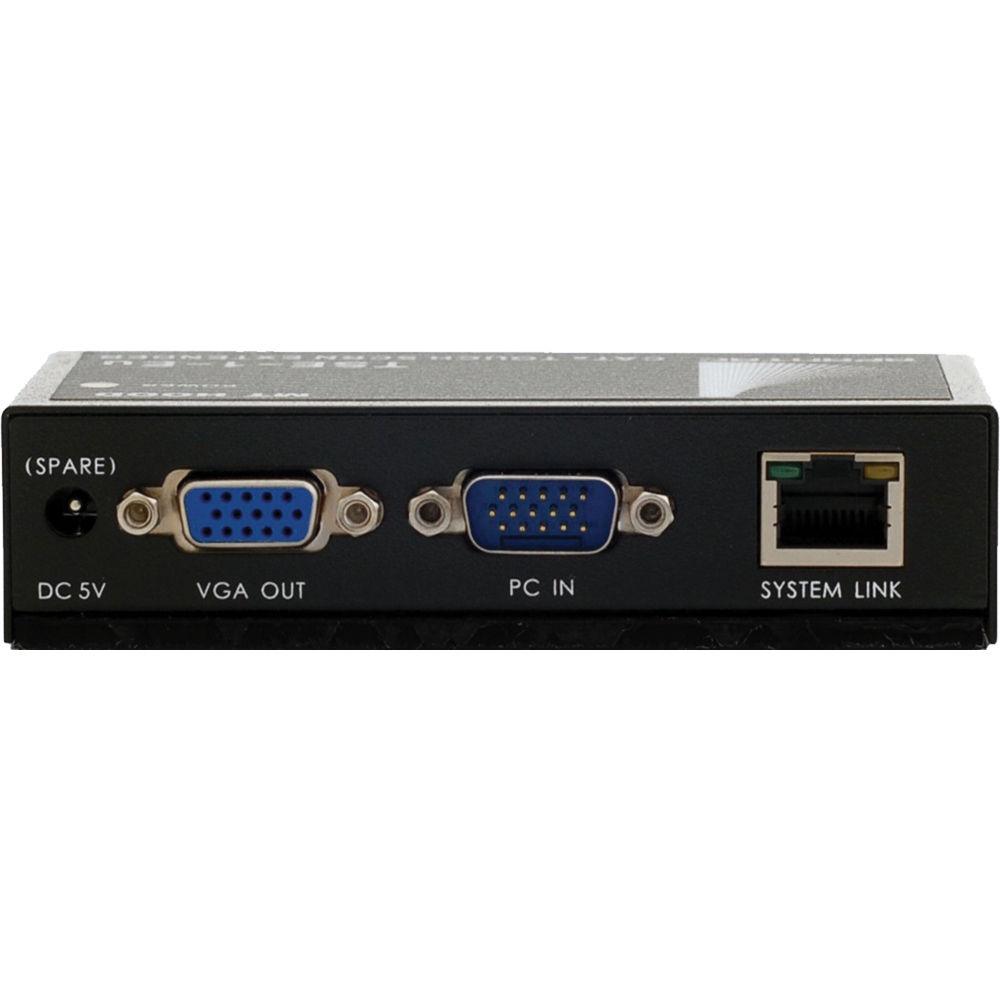

User Manual for Apantac TSE-1-Eu TSE-1-Ru MT HOOD VGA Touch-Screen Extender & Receiver Click to enlarge the picture
Contents of the user manual for the Apantac TSE-1-Eu TSE-1-Ru MT HOOD VGA
- Product category: KVM Extenders Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac KVM Extenders
 |
User manual for the Apantac TSE-1-Eu TSE-1-Ru MT HOOD VGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|

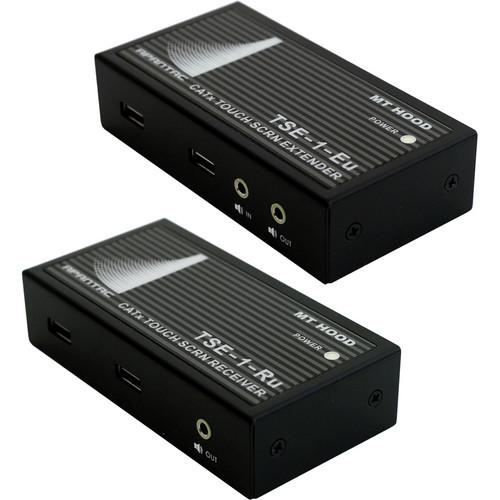

Product description The Apantac TSE-1-Eu/TSE-1-Ru MT HOOD VGA Touch-Screen Extender & Receiver is a set of one TSE-1-Eu extender and TSE-1-Ru receiver. It extends VGA signals with USB control over a single CATx cable. - Extends VGA signals with USB control over a single CATx cable
- Maximum VGA resolution of 2048 x 1536 up to 1,000' (330 m)
- Plug-and-play; no software required
- Remote / local monitoring and control
- Video gain and focus control for image quality adjustment
- Supports MS-DOS, Windows, Unix, Linux, Novell, FreeBSD operating systems
- Ideal for point of sale and digital signage applications
In the Box Apantac TSE-1-Eu/TSE-1-Ru MT HOOD VGA Touch-Screen Extender & Receiver TSE-1-Eu Transmitter TSE-1-Ru Receiver 3' (1 m) VGA, Audio, & USB Combo Cable 5 VDC, 1 A Power Supply For Receiver 2 x Mounting Plate Manual 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac TSE-1-Eu TSE-1-Ru MT HOOD VGA Touch-Screen Extender & Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac TSE-SET-2 Specs | | | Ports | Transmitter:
1 x HD15 VGA (Output)
1 x 3.5 mm Audio (Output)
1 x RJ45 Ethernet (Output)
1 x 3.5 mm Audio (Input)
2 x USB Type-A (Input)
Receiver:
1 x HD15 VGA (Output)
1 x USB Type-A (Output)
1 x 3.5 mm Audio (Output)
1 x RJ45 (Input) | | Supported Resolutions | 2048 x 1536 @ 60 Hz | | | | DC Input Power | 5 VDC at 1 A | | | | Dimensions | 4.5 x 2.4 x 1.1" / 113.0 x 62.0 x 29.0 mm | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 12.4 x 7.7 x 2.9" |
