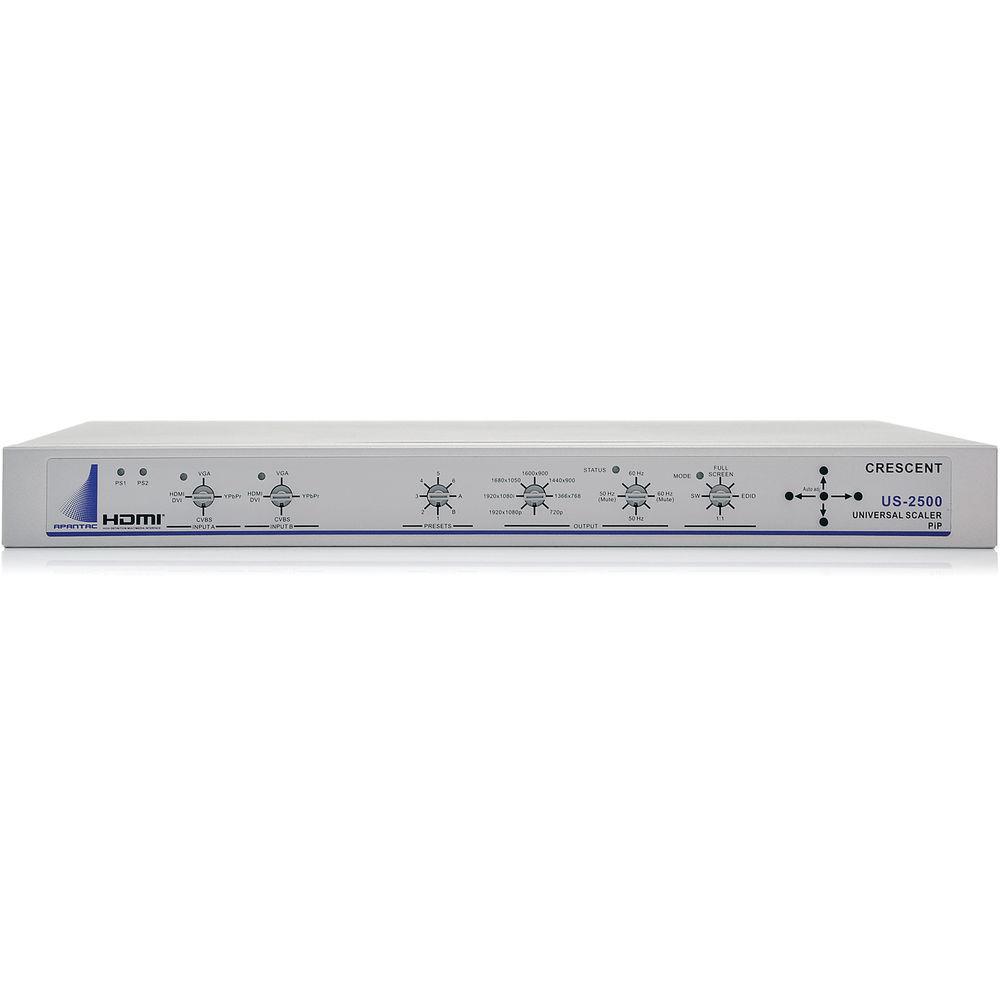

User Manual for Apantac US-2500 Universal Scaler with Genlock Click to enlarge the picture
Contents of the user manual for the Apantac US-2500 Universal Scaler with Genlock
- Product category: Signal Converters Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Signal Converters
 |
User manual for the Apantac US-2500 Universal Scaler with Genlock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The US-2500 Universal Scaler with Genlock from Apantac is a video scaler that converts two video signals from one size or resolution to another size or resolution. It supports multiple resolutions and can be controlled via GPI and RS232. In addition, it also supports optional redundant power supply. - Supports HDMI, DVI, VGA, YPbPr and composite inputs (two of each)
- Features 2 stereo analog audio inputs
- Can operate in PiP, side by side, or 2 x 1 clean switch mode
- Supports generator locking (genlock) which is a common technique where the video output of one source is used to synchronize other television picture sources together.
- Outputs HDMI/DVI in various resolutions
- GPI and RS232 controllable
- Rack mountable (1 rack-unit)
- Supports optional redundant power supply
In the Box Apantac US-2500 Universal Scaler with Genlock Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac US-2500 Universal Scaler with Genlock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac US-2500 Specs | Inputs | 2 x HDMI, DVI, VGA, YPbPr, Composite | | Output | HDMI/DVI: 720p, 1366 x 768, 1440 x 900, 1600 x 900, 1680 x 1050, 1920 x 1080i, 1920 x 1080p @ 50/59.94/60 Hz
SDI: 720p, 480p, 480i, 1080i, 1080p | | Audio Inputs | 2 x Stereo analog | | IP | IP control supported | | Power | 90 to 250 VAC with optional redundant 12 VDC | | Dimensions | 22 x 12 x 6" (56 x 30 x 15 cm) | | Weight | 10 lb (4.5 kg) |
