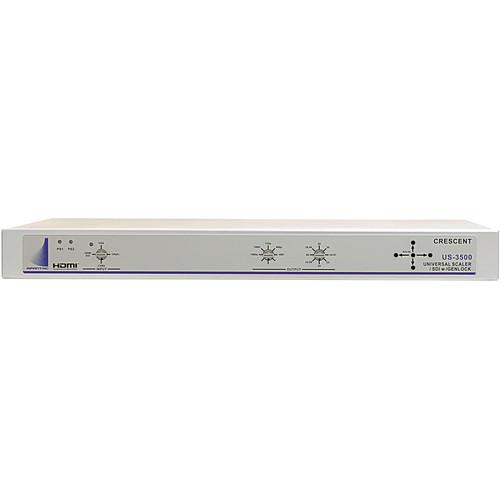

User Manual for Apantac US-3500 Universal Scaler with SDI Output and Genlock Click to enlarge the picture
Contents of the user manual for the Apantac US-3500 Universal Scaler with SDI
- Product category: Signal Converters Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Signal Converters
|
User manual for the Apantac US-3500 Universal Scaler with SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The US-3500 Universal Scaler from Apantac features a DVI input port that accepts HDMI, DVI, VGA, YpbPr (Component), and Composite inputs (adapters included). The scaler outputs videos in 720p, 480p, 480i, 1080i, 1080p via dual SDI ports with embedded audio. The unit also features a stereo analog input and Ethernet and RS-232 ports for control and firmware upgrades (Ethernet port only). The universal scaler features reference input and loop out for analog black burst genlock reference signals. For reliability and uninterrupted performance, the unit is provided with a redundant 12VDC power input (adapter not included) in addition to the universal 90 to 250VAC power inlet. The device can be mounted in 19" racks via the included ears. - Multi-format DVI input accepts HDMI, VGA, YPbPr (component), and composite inputs (via included adapters)
- Stereo analog audio input
- Dual SDI outputs support 720p, 480p, 480i, 1080i, 1080p
- Supports multiple modes; full screen mode, EDID learning mode, 1:1 mode, software control mode
- IP (Ethernet) and RS-232 control
- Reference (genlock) in with loop out
- Analog black burst genlock input
- Option of using a 12VDC redundant power supply (adapter not included)
- 19" rack mountable via included rack ears
In the Box Apantac US-3500 Universal Scaler with SDI Output and Genlock VGA to DVI Adapter HDMI to DVI Adapter YPbPr/Composite to DVI Adapter 75 Ohm Terminator 2 x Rack Ear Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac US-3500 Universal Scaler with SDI Output and Genlock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac US-3500 Specs | Video Input | 1 x Multi-format DVI (HDMI/VGA/Component/Composite using included adapters) | | Input Resolution | HDMI: 480i; 576i; 480p @ 59.94 Hz; 576p @ 50 Hz; 720p @ 59.94, 60, 50 Hz; 1080i @ 59.94, 60, 50 Hz; 1080p @ 59.94, 60, 50 Hz
DVI: 800 x 600; 1024 x 768; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1280 x 1024; 1360 x 768; 1366 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080i; 1920 x 1080p; 1920 x 1200 (R.B.) @ 60 Hz
VGA: 800 x 600; 1024 x 768; 1280 x 800; 1280 x 960; 1280 x 1024; 1360 x 768; 1366 x 768; 1440 x 900; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200 @ 60 Hz
YPbPr (Component): 480i; 576i; 720p @ 50, 60, 59.94 Hz; 1080i @ 50, 60, 59.94 Hz; 1080p @ 50, 60, 59.94 Hz | | Video Output | 2 x SDI via BNC Connectors | | Output Resolution | 720p, 480p, 480i, 1080i, 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz | | Audio Input | 1 x Analog stereo audio, unbalanced | | Audio Output | 4 channels (1 group) of audio with HDMI input; 2 channels of audio with analog audio input | | Standards | Composite Input: PAL (ITU624-2); NTSC (SMPTE-170M)
SDI Output: SD-SDI (SMPTE-259M); HD-SDI (SMPTE-292M); 3G-SDI (SMPTE-424M)
Reference Input: NTSC (SMPTE-170M), PAL (ITU624-2) | | Reference | Input/Output: Genlock; analog black burst with loop out | | Genlock Adjustments | Vertical (-1000 to 1000 lines), horizontal (-2000 to 2000 clock) | | Control | 1 x RS-232 for remote control
1 x Ethernet (IP) for remote control and firmware upgrade | | Power Connector | 1 x AC inlet
1 x DC input for redundant power supply | | Power Input | 90 to 250 VAC; redundant 12 VDC (adapter not included) | | Mounting | 19" rack mountable via included rack ears | | Dimensions (L x W x H) | 20 x 12 x 6" (51 x 30 x 15 cm) | | Weight | 10.0 lb (4.5 kg) | | | | Package Weight | 8.515 lb | | Box Dimensions (LxWxH) | 20.3 x 11.7 x 6.1" |
