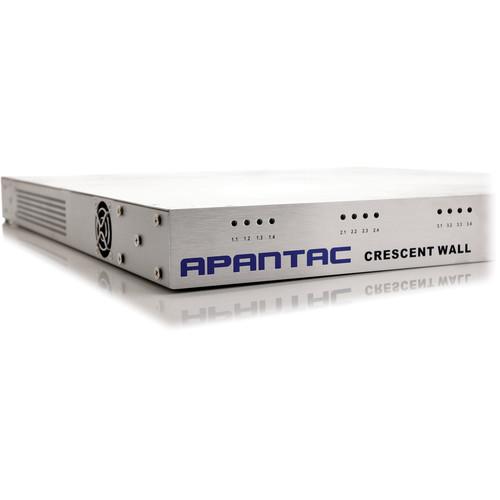

User Manual for Apantac W-4x4 Crescent Video Wall Click to enlarge the picture
Contents of the user manual for the Apantac W-4x4 Crescent Video Wall
- Product category: Multiviewer Processors Apantac
- Brand: Apantac
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Apantac Multiviewer Processors
|
User manual for the Apantac W-4x4 Crescent Video Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Apantac product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Apantac user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Apantac product will considerably shorten its lifespan!
|
Product description The W-4x4 Crescent Video Wall from Apantac can display a single 1080p signal onto sixteen 1366 x 768 or 1080p panels. This plug and play processor supports a maximum resolution of up to 7680 x 4230. The source can be placed up to 115' away. The video wall supports sixteen 1920 x 1080 or sixteen 1366 x 768 LCD/Plasma panels. - 4 x 4, 3 x 4 (crop), four 1 x 3 or four 2 x 2 or four 1 x 4 Video Wall
- Plug and play - no software required for operation
- Color temperature adjustments
- Pure hardware architecture, not a PC
- Source can be up to 115' away
- Maximum resolution up to 7680 x 4230
- Supports sixteen 1920 x 1080 or sixteen 1366 x 768 LCD/plasma panels (with mullion compensation)
- Can also be configured as four 2 x 2 wall or four 1 x 3 wall
- Can also be configured as 3 x 4 (crop) wall
- Can also be configured as 4 x 4 wall
In the Box Apantac W-4x4 Crescent Video Wall 2 x 1U Rack Ears Power Cord 3 x Cat 6 Cables (7.8") 17 x Cat 6 Cables (16.4') 16 x RJ45 to HDMI Cables HDMI-1-E Cable RJ45 to DB9 Cable RJ50 to DB9 Cable DB0-Breakout Cable 10 x Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Apantac W-4x4 Crescent Video Wall in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersApantac W-4X4 Specs | Inputs | RJ45 | | Outputs | 16 x HDMI with RJ45 Extenders, 1 x low resolution monitor | | Maximum Resolution | 7680 x 4320 | | Interface | 1 | | Serial Interface | RS-232 | | IP | 100BaseT | | Electrical | 100 W, 90 to 250 V, 50/60 Hz | | EMI/RFI | Complies with FCC Part 15, Class A, CE EU EMC, C-tick | | Dimensions | 1 RU, 17.5 x 23.6" / 44.45 x 60 cm | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 26.0 x 23.5 x 10.0" |
