User Manual for Aparo Luna-S LED Soft Light Click to enlarge the picture
Contents of the user manual for the Aparo Luna-S LED Soft Light
- Product category: LED Lights Aparo
- Brand: Aparo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aparo LED Lights
 |
User manual for the Aparo Luna-S LED Soft Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aparo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aparo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aparo product will considerably shorten its lifespan!
|

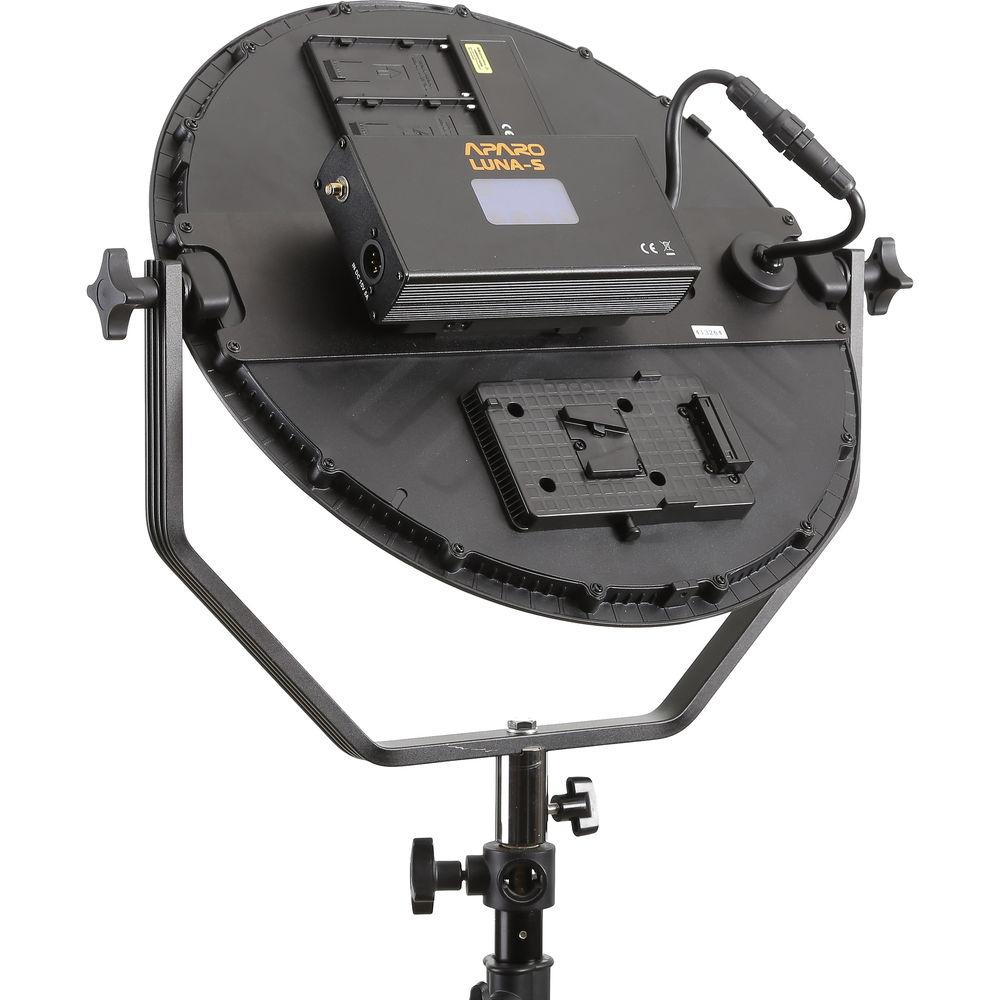

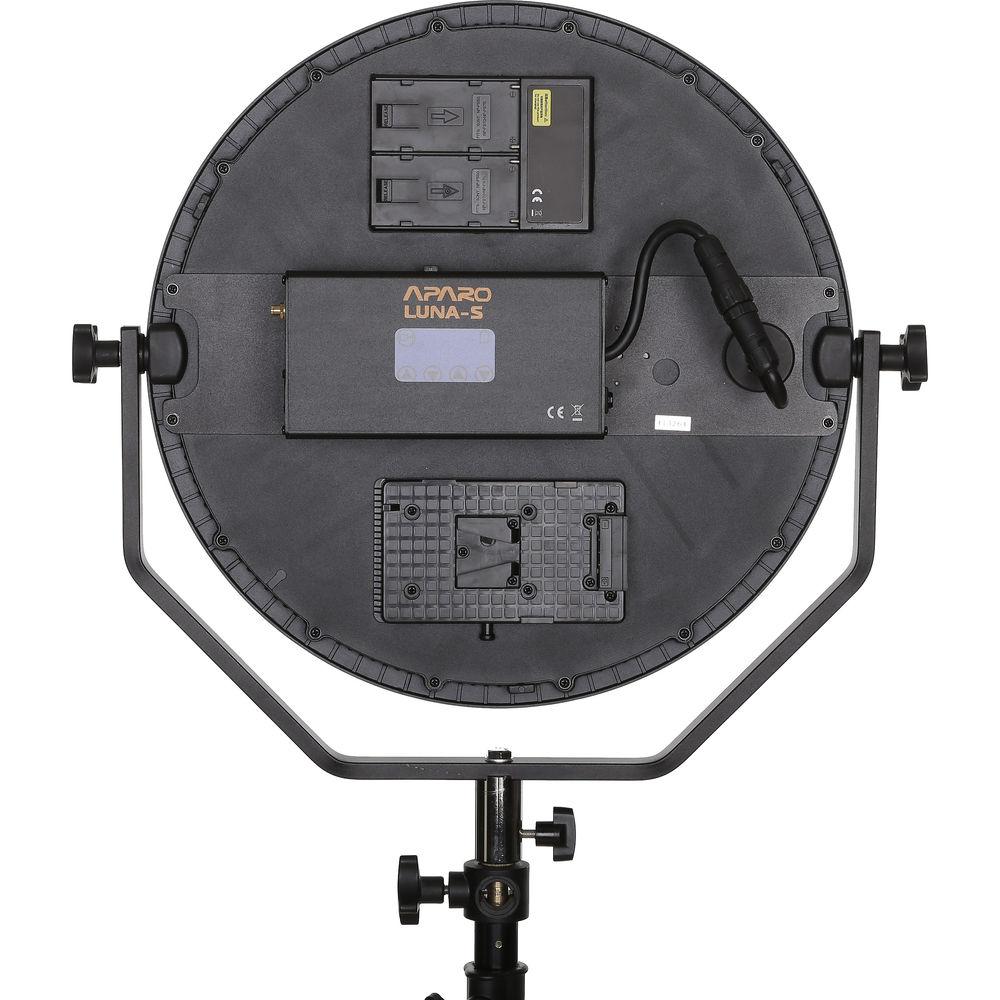

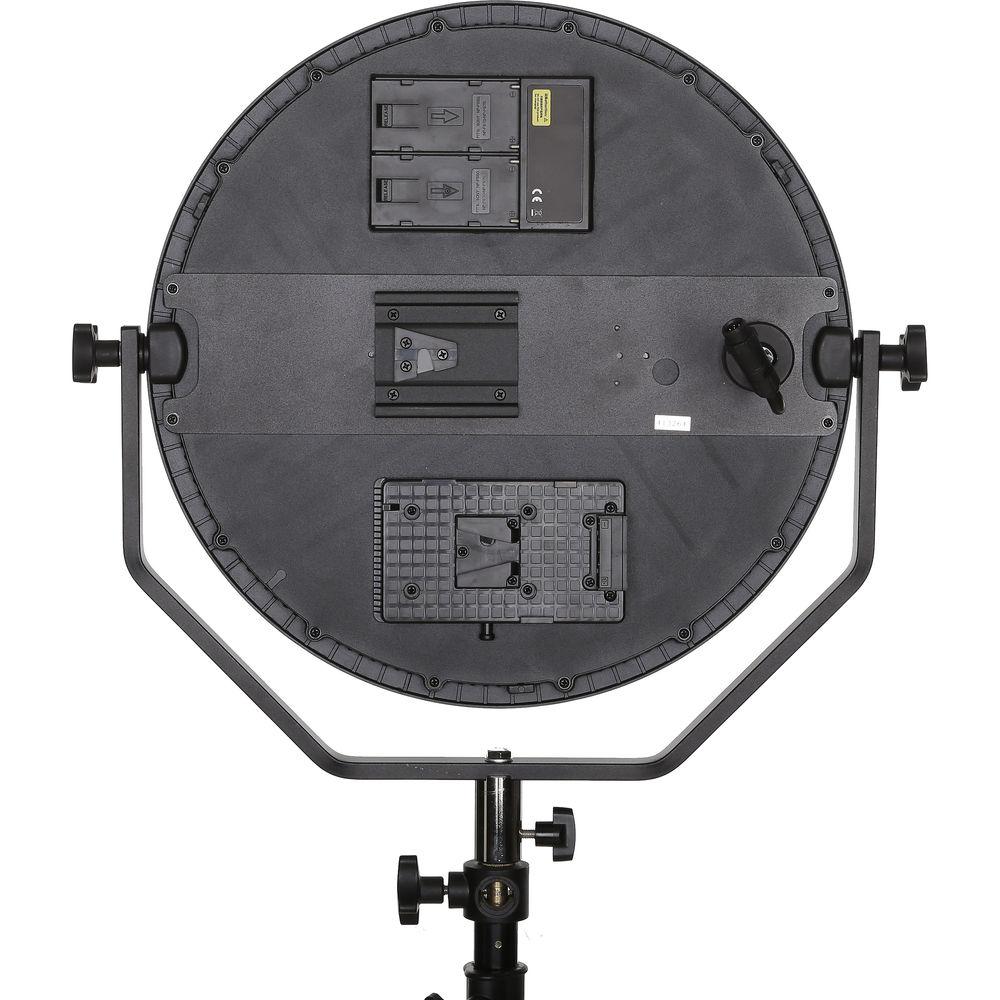

Product description Featuring variable color temperature, AC or battery power options, and a thin profile, the 16" Luna-S LED Soft Light from Aparo has what it takes for superior light quality in the studio or on the road. A good choice for portraiture, glamour, or hair and makeup, the first thing you notice is the Luna's distinctive round shape that yields circular, natural-looking catchlights in the eyes of your subject. To achieve maximum softness the fixture's LEDs have, unlike the standard "direct" orientation, an "edge-lit" design whereby the diodes are located around the periphery of the luminaire and pointed toward the center where their output converges without hot spots. Mounted to a yoke with a 5/8" receiver, the light's thin profile and low heat allows you to squeeze it into tight spaces or work close to the talent without causing discomfort. It's also a solution for low ceilings, in fact, with the right hardware you could mount the Luna overhead to the ceiling. The Luna-S has color temperature control from 3000 to 5600K, saving you the bother of applying gels and allowing you to meet any ambient light challenge. Light intensity is variable too, from 0-100% without color shift. You can make these changes locally on the fixture, or remotely via DMX. Adjustments are simple to make on the fixture's touch screen. A special feature of the Luna-S is its 2.4 GHz Master/Slave control, whereby one light designated the master, can wirelessly adjust several other lights to its settings. The Luna-S is ready for world-wide use thanks to its 110-240 VAC adapter but it can also run on V-mount or two NP-F-type batteries in situations where mains power is unavailable. UPC: 610877751143 In the Box Aparo Luna-S LED Soft Light (16") AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aparo Luna-S LED Soft Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAparo Luna-S Specs | | | Beam Angle | 65° | | Color Temperature | 3000 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD Touchscreen | | Photometrics | 65° at 5600K:
1129.7 fc / 344.3 lux at 6.56' / 2 m | | Circular Panel Size | 15.75" / 400 mm Diameter (Circle) Diameter of illuminated area of the light | | Fixture Weight | 5.14 lb / 2.33 kg (Including Yoke) | | | | Battery Plate | 1 x V-Mount | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Wi-Fi | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 50 W | | Power Pass-Thru | None |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
