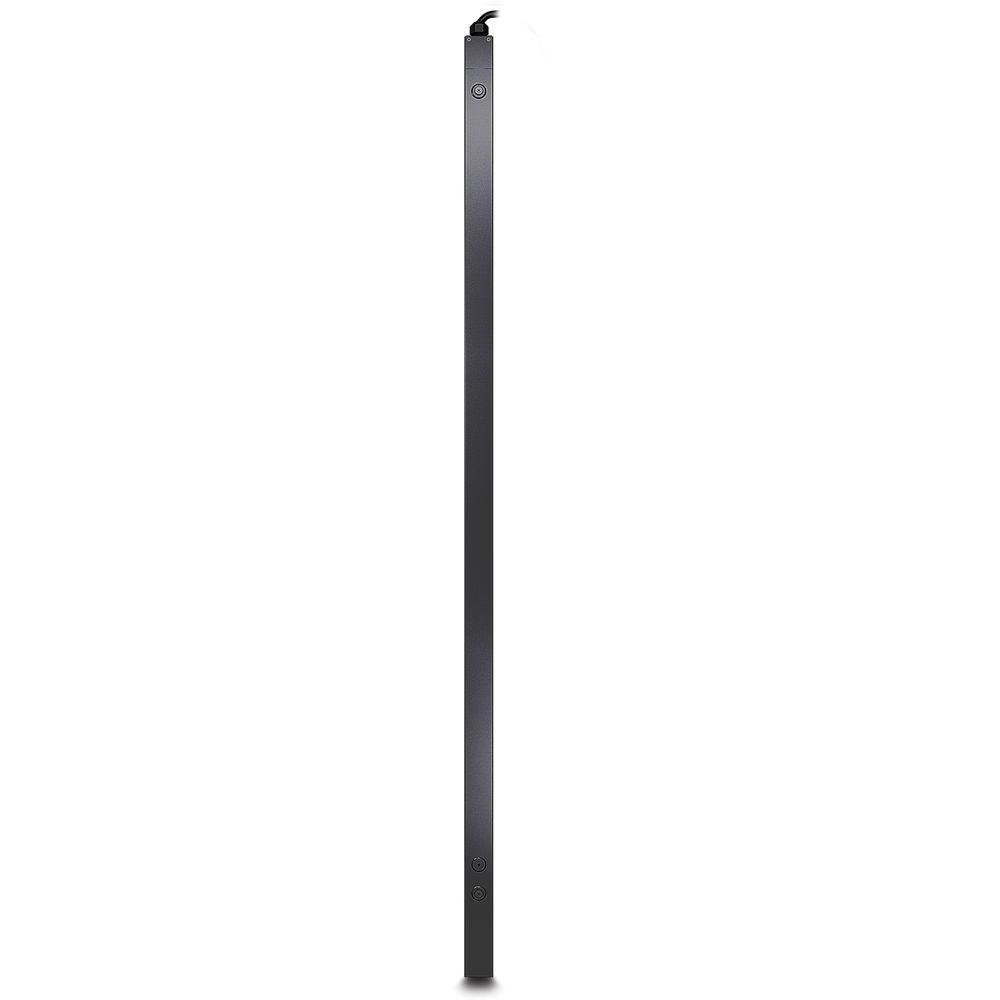

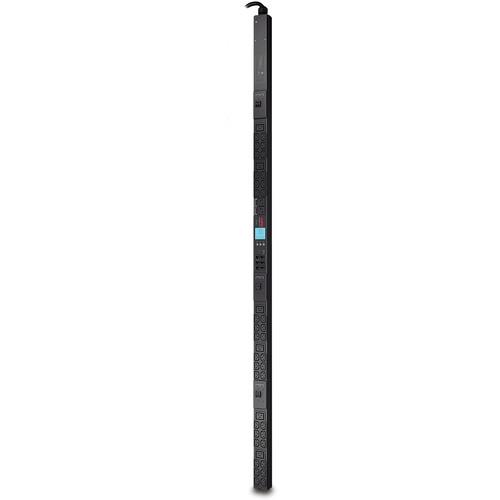

User Manual for APC 0 RU Rack Power Distribution Unit Click to enlarge the picture
Contents of the user manual for the APC 0 RU Rack Power Distribution
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
 |
User manual for the APC 0 RU Rack Power Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Provided by third party: APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow data center managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure web, SNMP, or telnet interfaces which are complimented by APC centralized management platforms using InfraStruxure central, operations, capacity, and energy efficiency.
- Key Features
-
- Local and web-based monitoring. Status available to customers both in the data center and remotely
- Local Current Monitoring Display. The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip
- Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits
- Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems
- Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip
- Remote management capabilities
- Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
- Local current monitoring display
- The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
- Alarm thresholds
- Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
- Load indicator LED
- Indicates overload and warning conditions based on the user-defined alarm thresholds. It alerts users of potential overloaded circuits.
- Integrates with StruxureWare data center expert
- An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.
- Flash upgradeable
- Quickly and easily upgrade firmware via network download for future product enhancements. It eliminates the need to replace products already installed in the field when new features are released.
- Single input power source
- Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
UPC: 731304277064 In the Box APC 0 RU Rack Power Distribution Unit (Metered, 208V) Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC 0 RU Rack Power Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

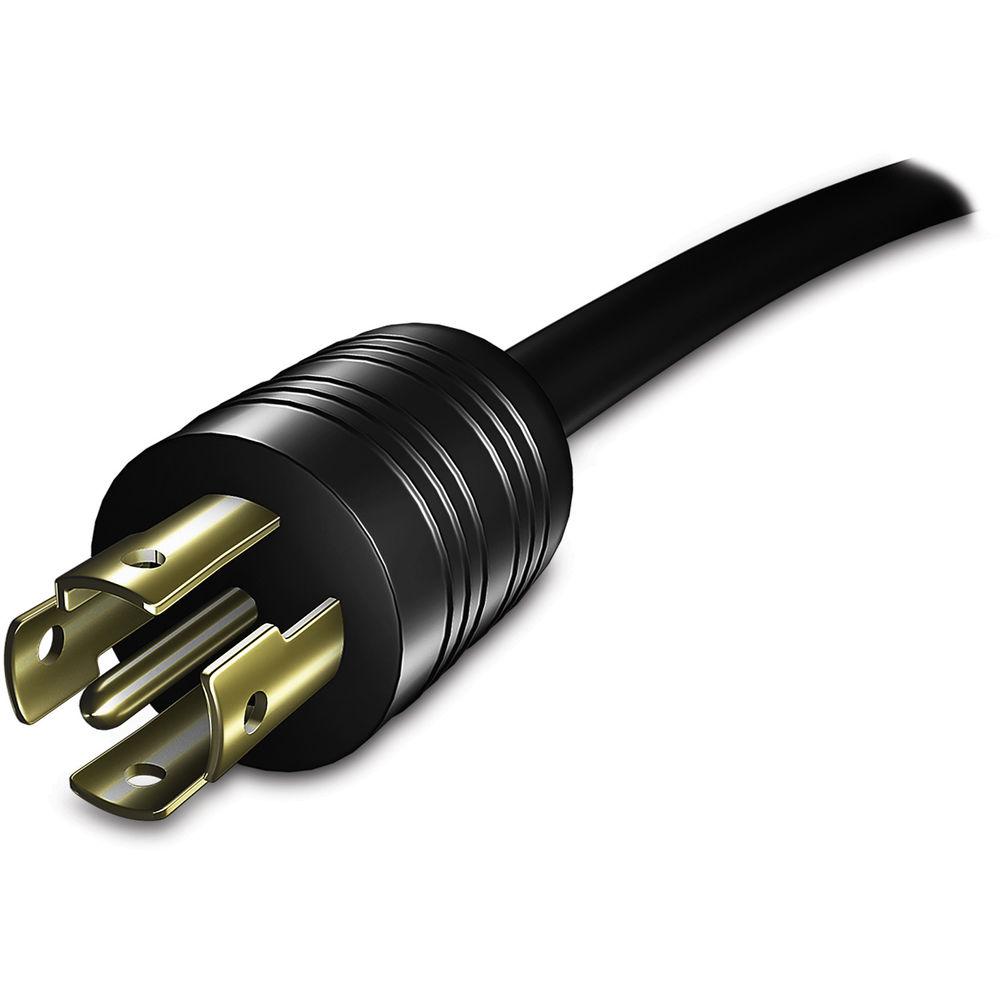

Technical parametersAPC AP8865 Specs | | | Device Type | Power distribution strip - rack-mountable | | Height (Rack Units) | 0U | | Color | Black | | | | Input Voltage | AC 208 V | | Frequency Required | 50/60 Hz | | Input Connectors | Power NEMA L21-30 | | Power Output Connectors Details | 36 x power IEC 60320 C13
6 x power IEC 60320 C19
2 x power NEMA 5-20 | | Output Voltage | AC 208 V | | Max Electric Current | 30 A | | Power Capacity | 8.6 kW | | Circuit Protection | Circuit breaker | | | | Remote Management Protocol | SNMP, Telnet, HTTP | | | | Interfaces | 1 x management | | | | Cables Included | Power cable 6 ft
Serial cable - external | | Rack Mounting Kit | Included | | Features | LCD display, current meter, LED indicators, overload protection | | Compliant Standards | CSA C22.2, RoHS, UL 60950-1 | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 41
