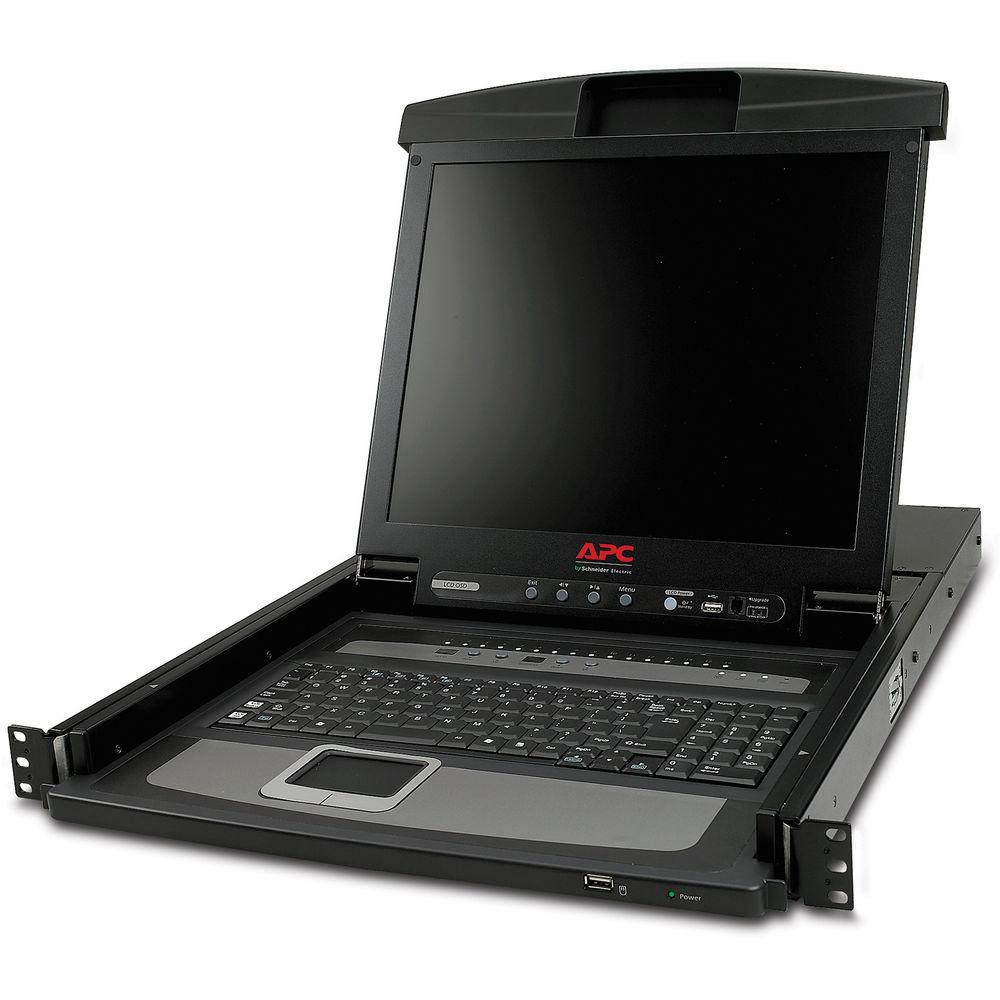

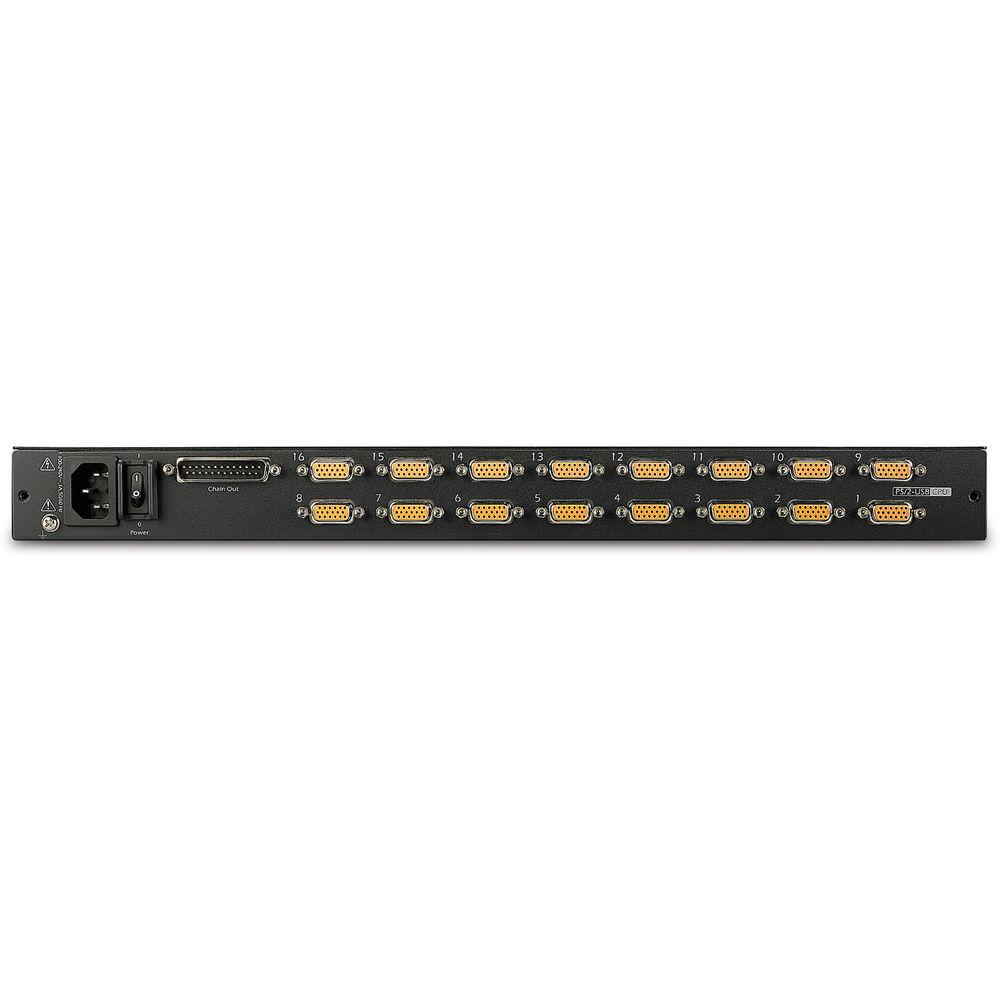

Product description The black 17" Rack LCD Console with Integrated 16-Port Analog KVM Switch from APC combines the functionality of a Rack LCD Console and Analog KVM switches in one convenient package, optimizing U space in the rack environment and eliminating cable clutter. The switch offers a value of two product's functionality in a single package. - Out-of-Band Management
- Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
- Scalable Architecture
- Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. 1
Please Note: Please see the user manual for specific cascading capabilities. close - Occupies 1U of Rack Space
- Conserve valuable rack space in the data center.
- Multi-Platform Support
- Compatible with Windows, Sun, UNIX and Linux platforms.
- Integrated Touchpad Pointing Device
- Eliminates the need for a separate, external mouse.
- Power Tilt Sensor
- Saves power by automatically powering down the device when it is closed.
- PS/2 Terminations
- Connects to a server or KVM switch via standard PS/2 connectors.
- Standard VGA Connector
- Connects to a server or KVM switch via a standard VGA connector.
- Low Cooling Requirements
- Emits less heat than comparable CRT monitors.
- Low Power Consumption
- Uses less than half the power of comparable CRT monitors.
- Slide Rails
- Quickly and easily install in square, round and threaded hole racks.
- Quick Release Tabs
- Insert or remove the device with ease.

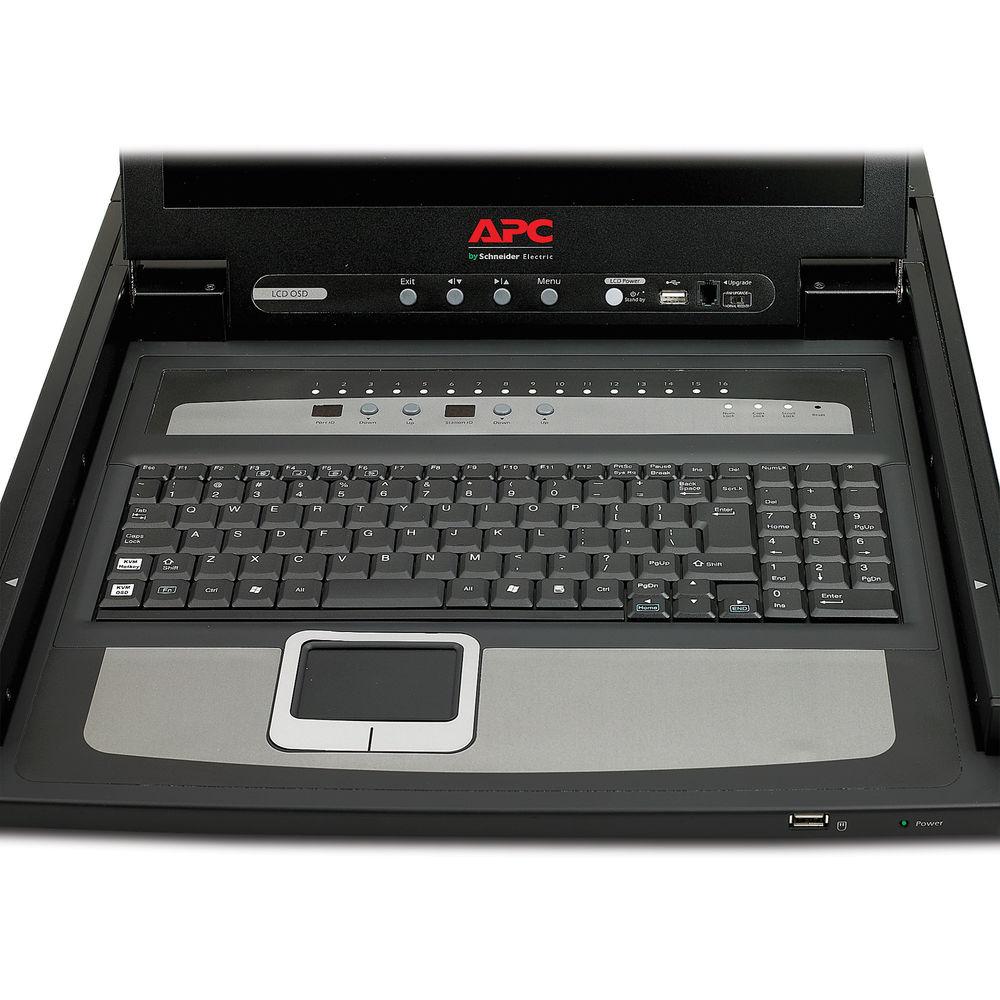

- On-Screen Display (OSD) Adjustments
- Adjust the on-screen image, including auto adjust, exit, power on/off, brightness, menu and a power indicator.
- Cable Management Arm
- Prevent interference with surrounding devices by organizing multiple cables.
UPC: 731304278818 In the Box APC 17" Rack LCD Console with Integrated 16-Port Analog KVM Switch (Black) C13-C14 Power Cord Documentation CD Firmware Upgrade Cable NEMA 5-15 Power Cord PS2 KVM Cable Single User Rack Mount Kit USB KVM Cable Installation Guide 2-Years Repair or Replace Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC 17" Rack LCD Console with Integrated 16-Port Analog KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC AP5816 Specs | | | Nominal Input Voltage | 120 V, 240 V | | Input Frequency | 50/60 Hz | | Input Connections | IEC-320 C14 | | Cord Length | 6' (1.8 m) | | | | Panel Size | 17 | | Display Size | (H) x (V) : 13.26 x 10.62" (33.7 x 27 cm) | | Display Colors | 16 | | Trackball | PS/2 touchpad, USB mouse | | | | Operating Environment | 32 to 104°F (0 to 40°C) | | | | Regulatory Approvals | cUL Listed, C-tick, CE, EN 60950, FCC Part 15 Class A, GOST, IEC 60950, Industry Canada, KCC, UL Listed, VDE | | | | Compliance | RoHS
China RoHS | | Reach | REACH: Contains No SVHCs | | | | Rack Height | 1U | | Dimensions (W x H x D) | 19 x 1.7 x 28" (48.3 x 4.3 x 71.1 cm)
Minimum Mounting Depth: 26.77" (68 cm)
Maximum Mounting Depth: 41.33" (105 cm) | | Weight | 30.8 lb (14 kg) | | | | Package Weight | 43.0 lb | | Box Dimensions (LxWxH) | 32.75 x 26.5 x 5.3" |
