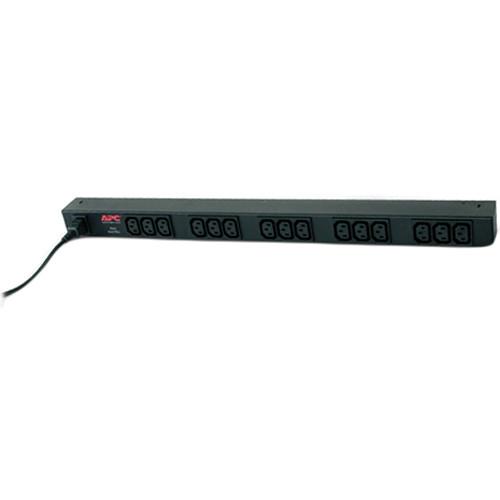

User Manual for APC 230V Basic Rack Power Distribution Unit Click to enlarge the picture
Contents of the user manual for the APC 230V Basic Rack Power Distribution
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
|
User manual for the APC 230V Basic Rack Power Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The 230V Basic Rack Power Distribution Unit from APC is designed for use in rackmount environments. It features fifteen IEC 320 C13 output and IEC-320 C14 input. It supplies power from one branch whip to multiple pieces of equipment, and conveniently powers rackmount equipment Capabilities - Tool-Less Rackmounting Capabilities
- Server cases do not require additional tools to mount into NetShelter enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
- Vertical Mounting Capabilities
- Easily mounts vertically in racks or enclosures and occupies zero U of the rack space, which allows more equipment in the rack. The units that mount vertically are optimized to fit in a NetShelter enclosures.
Agility - Rackmountable
- Includes horizontal, vertical, and toolless mounting options. Puts power where it is needed in the rack near the equipment.
- Single Input Power Source
- Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Total Cost of Ownership - Low Cost Power Distribution
- Provides fifteen IEC 320 C13 output and IEC-320 C14 input to bring power to rack equipment.
UPC: 731304207054 In the Box APC 230V Basic Rack Power Distribution Unit Rackmounting Brackets Tool-Less Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC 230V Basic Rack Power Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC AP9568 Specs | | | Outlets | 15 x IEC-320 C13 | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 240 VAC, 50 Hz | | Load Capacity | 2300 W | | Rated Current | 10 A | | | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -13 to 149°F / -25 to 65°C | | Storage Humidity | 0 to 95% | | | | Cable Length | 6.5' / 2 m | | Cable Management | None | | Dimensions (L x W x H) | 1.8 x 24.0 x 1.8" / 44.5 x 609.6 x 44.5 mm | | Weight | 4.4 lb / 2.0 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 25.5 x 7.0 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
