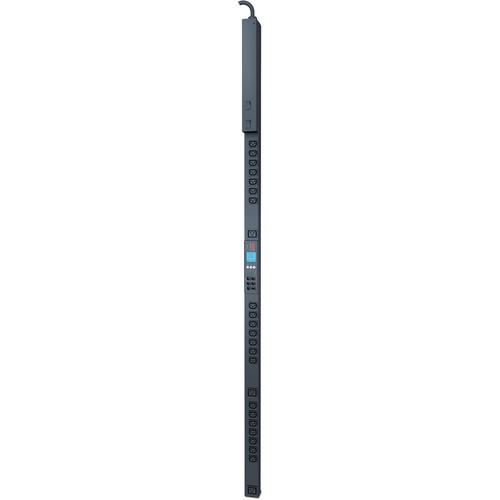

User Manual for APC 24-Outlet Metered-by-Outlet Power Distribution Unit Click to enlarge the picture
Contents of the user manual for the APC 24-Outlet Metered-by-Outlet Power Distribution Unit
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
|
User manual for the APC 24-Outlet Metered-by-Outlet Power Distribution Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Power multiple pieces of IEC C13 and C19 equipment with the 24-Outlet Metered-by-Outlet Power Distribution Unit from APC. This power distribution unit supports up to 30A of current and sports 21 IEC-320 C13 and three IEC-320 C19 receptacles. With real-time remote monitoring of connected loads, each metered receptacle lets you make informed decisions on energy optimization and circuit protection. The unit has an acceptable input voltage range of 200 to 240 VAC and comes with a L6-30 plug on a 10' cord. Other notable features include a temperature/humidity sensor port along with locking IEC receptacles and low-profile circuit breakers. Moreover, you can access and configure this PDU through secure Web, SNMP, or Telnet interfaces. - Flash Upgradeable
- Quickly and easily upgrade firmware via network download for future product enhancements
- Integrates with StruxureWare Data Center Expert
- An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments
- Load Indicator LED
- Indicates overload and warning conditions based on the user-defined alarm thresholds as well as alerts users of potential overloaded circuits
- Local Current Monitoring Display
- Current draw per rack is displayed via an onboard display, which helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip
- Alarm Thresholds
- Define alarm thresholds in order to avoid overloaded circuits, while network and visual alarms inform the user of possible problems
- Metering-by-Outlet Capability
- Individual outlet level power metering provides a granular view of the power distributed to equipment within the enclosure. It also lets you analyze component power trends and perform capacity planning
- Network Management Capabilities
- Network management interfaces provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations as well as easily upgrade the firmware via a network download for future product enhancements
- Single-Input Power Source
- Supplies power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment
UPC: 731304317548 In the Box APC 24-Outlet Metered-by-Outlet Power Distribution Unit CAN Port Terminator Rack Mounting Bracket Kit Serial Configuration Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC 24-Outlet Metered-by-Outlet Power Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC AP8441 Specs | Output Voltage | 200 V, 208 V | | Overload Protection | Yes | | Maximum Current Draw | 30 A | | Output Connections | 3 x IEC 320 C19 (Battery Backup)
21 x IEC 320 C13 (Battery Backup) | | Nominal Input Voltage | 200 V, 208 V, 230 V
200 to 240 VAC (acceptable) | | Input Frequency | 50/60 Hz | | Input Connection | NEMA L6-30P | | Maximum Input Current | 30 A | | Maximum Line Current | 30 A | | Regulatory Derated Input Current | 24 A | | Operating Temperature | 23 to 113°F / -5 to 45°C | | Operating Humidity | 5 to 95% | | Operating Elevation | 0 to 10,000' / 0 to 3048 m | | Storage Temperature | -13 to 149°F / -25 to 65°C | | Storage Humidity | 5 to 95% | | Storage Elevation | 0 to 50,000' / 0 to 15,240 m | | Approvals | cUL Listed, FCC Part 15 Class A, ICES-003, IEC 60950, PSE, UL Listed, VCCI Class A | | Green Compliance | RoHS, REACH | | Cord Length | 10' / 3 m | | Dimensions (H x W x D) | 72 x 2.2 x 2" / 182.9 x 5.6 x 5.1 cm | | Weight | 18.1 lb / 8.2 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 68.0 x 7.0 x 4.5" |
