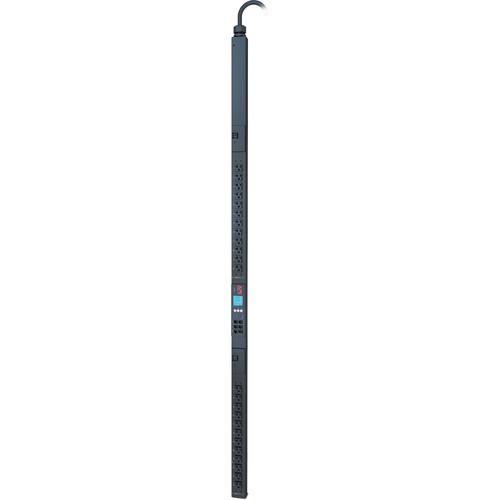

User Manual for APC 24-Outlet Metered Power Distribution Unit Click to enlarge the picture
Contents of the user manual for the APC 24-Outlet Metered Power Distribution Unit
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
|
User manual for the APC 24-Outlet Metered Power Distribution Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The APC 24-Outlet Metered Power Distribution Unit supports 120V environments and comes with 24, 5-20R outlets to power multiple equipment. Drawing power is done by a 9.8' long cable that comes outfitted with an NEMA L5-30P plug on the end. Furthermore, the strip is designed in a 0U rackmount form factor and can be installed vertically inside the rack.
To help prevent an overload, an indicator LED is on board to alert you when the current draw is close to the strip's 30A current rating. Other notable features include a temperature/humidity sensor port along with locking IEC receptacles and low-profile circuit breakers. Moreover, you can access and configure this PDU through secure Web, SNMP, or Telnet interfaces. - Vertical Mounting Capabilities
- Mounts vertically in racks or enclosures, which allows more equipment in the rack
- Single Input Power Source
- Supplies power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment
- Flash Upgradeable
- Quickly and easily upgrade firmware via network download for future product enhancements
- Remote Management Capabilities
- Network management interfaces provide standards-based management via Web, SNMP, and Telnet, allowing users to access, configure, and manage units from remote locations
- Local Current Monitoring Display
- Current draw per rack is displayed via an onboard display, which helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip
- Alarm Thresholds
- Define alarm thresholds in order to avoid overloaded circuits, while network and visual alarms inform the user of possible problems
- Load Indicator LED
- Indicates overload and warning conditions based on the user-defined alarm thresholds as well as alerts users of potential overloaded circuits
- Integrates with StruxureWare Data Center Expert
- An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments
UPC: 731304307334 In the Box APC 24-Outlet Metered Power Distribution Unit Rack Mounting Bracket Kit Serial Configuration Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC 24-Outlet Metered Power Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC AP8832 Specs | Output Voltage | 100 V, 120 V | | Overload Protection | Yes | | Output Connections | 24 x NEMA 5-20R (Battery Backup) | | Nominal Input Voltage | 100 V, 120 V
100 to 120 VAC (acceptable) | | Input Frequency | 50/60 Hz | | Input Connection | NEMA L5-30P | | Load Capacity | 2880 VA | | Maximum Input Current | 30 A | | Regulatory Derated Input Current | 24 A | | Operating Temperature | 23 to 113°F / -5 to 45°C | | Operating Humidity | 5 to 95% | | Operating Elevation | 0 to 10,000' / 0 to 3048 m | | Storage Temperature | -13 to 149°F / -25 to 65°C | | Storage Humidity | 5 to 95% | | Storage Elevation | 0 to 50,000' / 0 to 15,240 m | | Approvals | cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed | | Green Compliance | RoHS, REACH | | Cord Length | 9.8' / 3 m | | Dimensions (H x W x D) | 70.5 x 2.2 x 1.7" / 179.1 x 5.5 x 4.4 cm | | Weight | 14.7 lb / 6.7 kg | | | | Package Weight | 19.05 lb | | Box Dimensions (LxWxH) | 78.8 x 6.6 x 4.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
