User Manual for APC 3000mAh Mobile Power Pack Click to enlarge the picture
Contents of the user manual for the APC 3000mAh Mobile Power Pack
- Product category: Portable Battery Packs APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Portable Battery Packs
 |
User manual for the APC 3000mAh Mobile Power Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

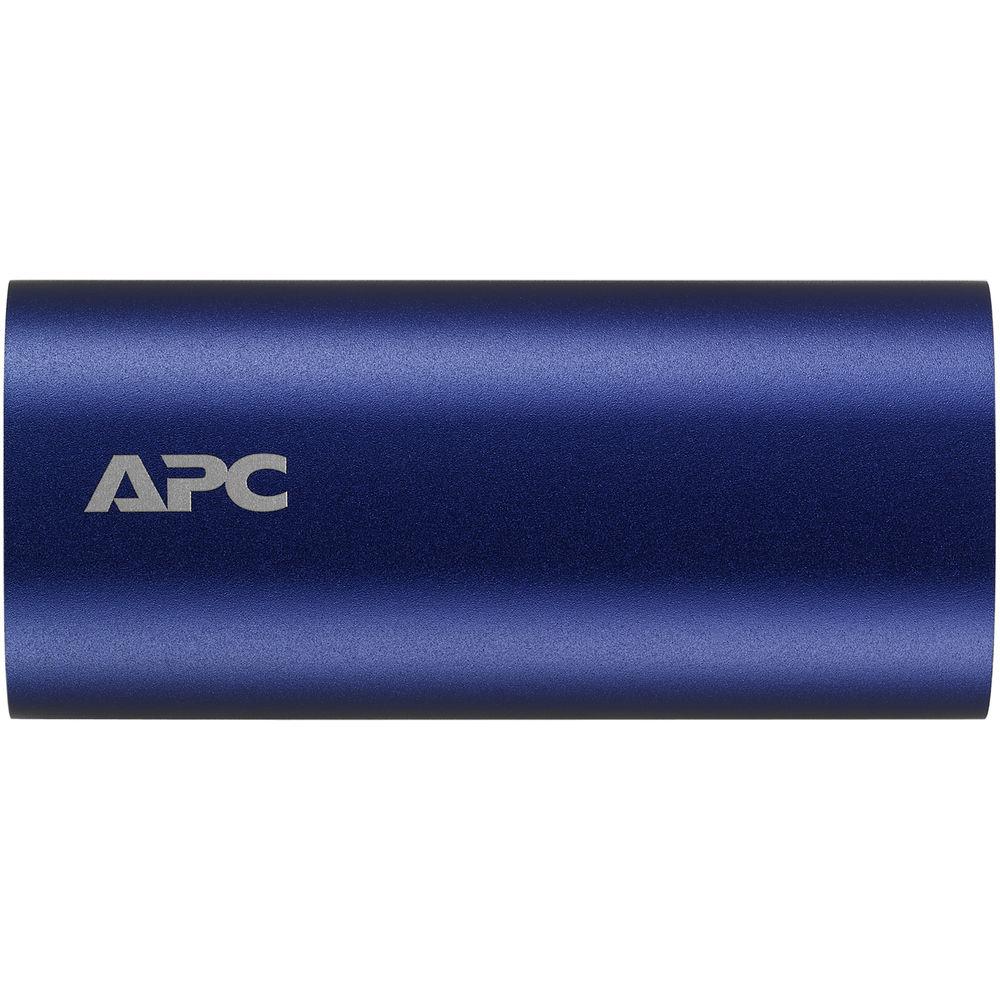

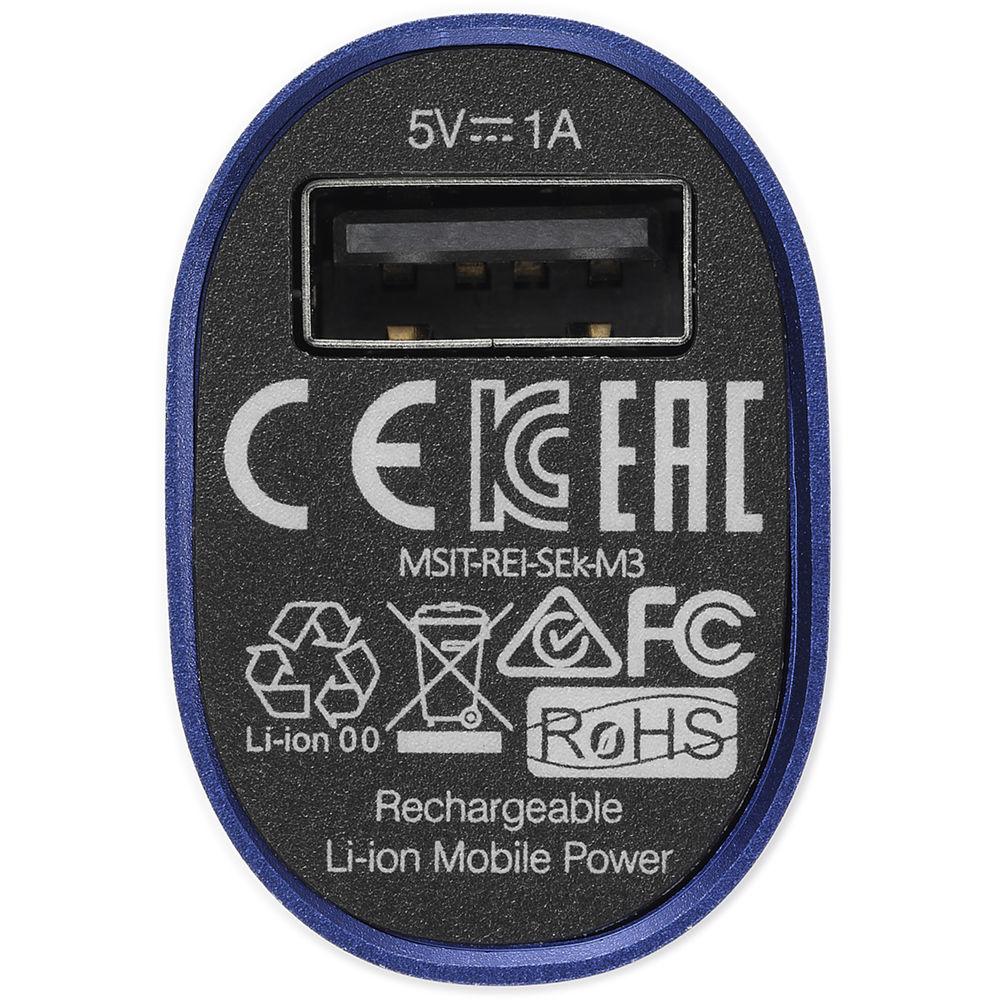

Product description The blue 3000mAh Mobile Power Pack from APC is a portable lithium-ion battery pack with an overall capacity of 3000mAh that allows you to charge one tablet, smartphone, or other compatible device using its one 5V/1A USB Type-A port. When the battery is depleted, it can be recharged up to 360 times using its 5V/1A micro-USB input, and recharging takes around 3.5 hours. Thanks to pass-through charging, this power pack can charge external devices while it is charging.
APC has designed this battery pack with over-temperature, over-charging, over-discharge, short circuit, overload, overcurrent, low standby current, and auto shutdown protections, all of which help provide protection for this battery and attached devices. Included is an 11.8" USB charging cable and a limited 1-year repair or replace warranty is valid in North America, Latin America, and Asia. General Features - Auto Shutdown and Other Safety Features
- The M3 power pack provides a range of features to help ensure long-term, reliable operation. Safety features include overload, overcharge, over-discharge, over-current, and over-temperature protection, as well as low standby current and short circuit protection. Additionally, the M3 helps save battery life and energy by automatically shutting down when a connected device is fully charged.
- Portable Power for Your Mobile Device
- A 3000mAh lithium-ion battery efficiently charges most USB-enabled devices, including smartphones, tablets, portable gaming consoles, cameras, and more. When you are on the go and desperate for extra power to complete a phone call, send an email, find directions, or snap photos, the M3 mobile power pack gives your device the boost it needs.
- Status Indicators and Pass-Through Charging
- Connect your mobile device to the M3 mobile power pack's 1A charging port and get a full charge for your smartphone or a 20% charge for your tablet, depending on the model of each. LED indicators show available power status at a glance, and pass-through charging saves time by charging a connected device and the mobile power pack simultaneously.
- Compact Design Comes in Five Colors
- This convenient traveling companion has a lightweight, compact design. It weighs less than one pound and fits in the palm of your hand. Stick it in your pocket, toss it in your bag, or stash it in your glove compartment to ensure you have crucial backup power wherever life takes you. The M3 has a sleek look to complement your mobile devices.
UPC: 731304319207 In the Box APC 3000mAh Mobile Power Pack (Blue) USB Charging Cable (11.8") Limited 1-Year Warranty User Manual PDF 1mb More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC 3000mAh Mobile Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Mobile Power Pack Specs | | | Input Charging Port | Micro-USB | | Output Ports | 1 x USB Type-A | | Cable Length | 11.8" / 299.72 mm | | | | Battery Chemistry | Lithium-Ion | | Capacity (Wh) | 11 Wh | | Capacity (mAh) | 3000 mAh | | Charging Time | 3.5 Hours | | Charge Cycles | 360 | | | | DC Input Power | 5 VDC at 1 A | | Port Output Power | 5 V, 1 A | | | | Material | Aluminum | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 32 to 122°F / 0 to 50°C | | Dimensions (W x H x D) | 1.3 x 0.9 x 2.8" / 33.0 x 22.9 x 71.1 mm | | Weight | 0.2 lb / 0.1 kg | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.4 x 3.7 x 1.4" |
