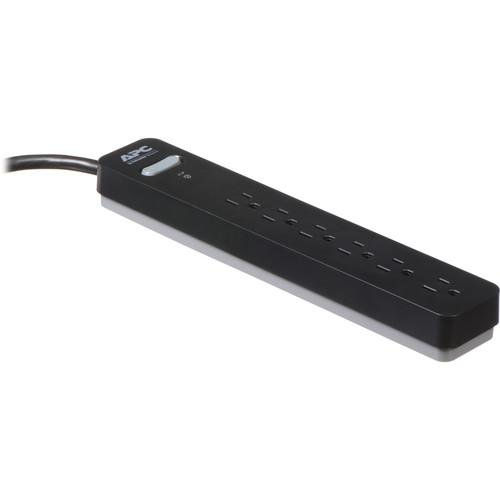

User Manual for APC 6-Outlet Essential SurgeArrest Click to enlarge the picture
Contents of the user manual for the APC 6-Outlet Essential SurgeArrest
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
|
User manual for the APC 6-Outlet Essential SurgeArrest contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The 6-Outlet Essential SurgeArrest from APC helps prevent damage to your equipment that can result from electric power surges and spikes. It features six NEMA 5-15R outlets that draw power via its NEMA 5-15P plug with a nominal input voltage of 120 VAC @ 50/60 Hz. It can tolerate a maximum input and line current of 15A, as well as a maximum input power of 1200W and a surge energy rating of 1080 joules. General Features - Lightning and Surge Protection
- This helps prevent damage to your equipment from electric power surges and spikes.
- Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Protection Working Indicator
- SurgeArrest will warn you if its circuitry has been damaged by a heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
- Fail Safe Mode
- Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest is equipped with a fail safe, meaning that once the circuit of an APC SurgeArrest has been compromised, the unit disconnects equipment from the power supply, helping to ensure that no damaging surges reach your equipment.
- Catastrophic Event Protection
- SurgeArrest components such as MOVs and thermal fuses help ensure an instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to a power spike or over voltage, excess power cannot reach your equipment. Other surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
- Resettable Circuit Breaker
- Recovering from overloads is user-friendly with no need to replace any fuses.
- Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, helping to ensure improved performance of protected equipment.
- IEEE Let-Through Ratings and Regulatory Agency Compliance
- APC surge protectors undergo stringent testing by the IEEE and are awarded "let-through ratings," which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers performance with a let-through rating of less than 330 to 500V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
UPC: 731304336600 In the Box APC 6-Outlet Essential SurgeArrest Limited Lifetime $50,000 Equipment Protection Policy Limited Lifetime Warranty More info from APC utacxvycryftsfuwtsxyzfvq Table of Contents
|
Upload User Manual
Have you got an user manual for the APC 6-Outlet Essential SurgeArrest in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC PE610 Specs | | | Number of Outlets | 6 | | Receptacle Style | NEMA 5-15R | | | | Nominal Input Voltage | 120 V | | Input Frequency | 50/60 Hz ±5 Hz (auto-sensing) | | Input Connections | NEMA 5-15P | | Cord Length | 10.0' / 3.05 m | | Number of Power Cords | 1 | | Input Power | 1200 W | | Maximum Input Current | 15 A | | Maximum Line Current | 15 A | | | | Surge Energy Rating | 1080 joules | | NM Surge Response Time | 1 ns | | Peak Current Common Mode | 72,000 A | | Peak Current Normal Mode | 60,000 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Relative Humidity | 0 to 95% | | Operating Elevation | 0 to 10,000 / 0 to 3048 m | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Relative Humidity | 0 to 95% | | Storage Elevation | 0 to 50,000' / 0 to 15,240 m | | | | RoHS | Compliant | | REACH | Contains no SVHCs | | | | Dimensions | 2.0 x 11.25 x 1.5" / 5.08 x 28.58 x 3.81 cm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 12.5 x 5.8 x 1.7" |
