User Manual for APC AP7900B Switched Rack Power Distribution Unit Click to enlarge the picture
Contents of the user manual for the APC AP7900B Switched Rack Power Distribution
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
 |
User manual for the APC AP7900B Switched Rack Power Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The AP7900B Switched Rack Power Distribution Unit from APC provides advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management. When compared to the first generation AP7900 model, the AP7900B has been upgraded to support Transport Layer Security (TLS) 1.2 cyber protocol. The AP7900B also features an enhanced web user interface, improved mobile support, expanded support for authenticated encryption, such as the Advanced Encryption Standard (AES), updated application Command Line Interface (CLI), support for up to four simultaneous user sessions, and the 2048-bit Diffie-Hellman (DH) Prime Key.

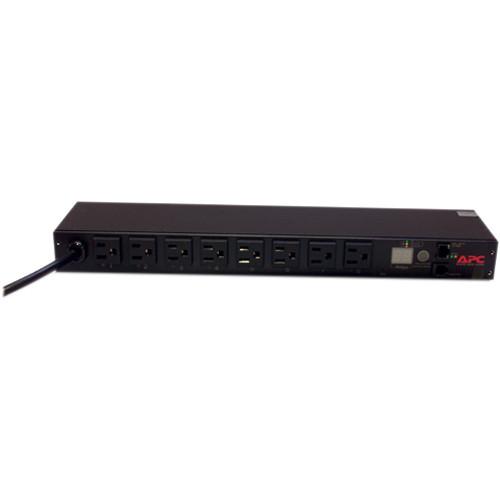

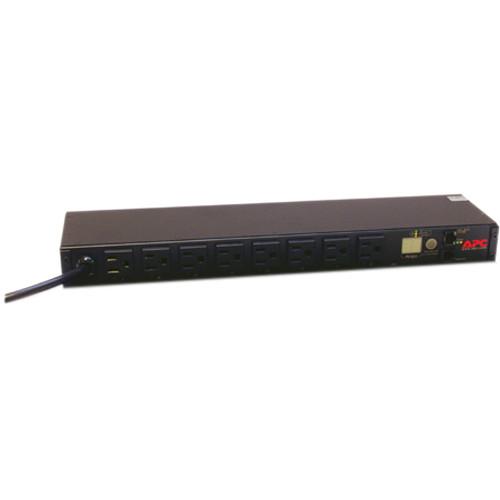

Technically, APC's AP7900B Switched Rack Power Distribution Unit has been configured with eight NEMA 5-15R outlets, one NEMA 5-15P input, a nominal output voltage of 120 VAC, a nominal input voltage of 100-120 VAC, an input frequency of 50/60 Hz, a load capacity of 1440 VA, a maximum input current of 15A, and nominal power of 1.4 kW. It has a horizontal 1 RU form factor and an integrated 12' power cord. Features Introduced with the AP7900B - Enhanced web user interface
- Expanded support for authenticated encryption
- Advanced Encryption Standard (AES)
- Updated application Command Line Interface (CLI)
- Support for up to four simultaneous user sessions
- 2048-bit Diffie-Hellman (DH) Prime Key
General Features Agility - Single Input Power Source
- Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
- Rack Mountable
- Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most–in the racks near the equipment.
Availability - Power Delays
- Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to pre-determine which piece of equipment is turned on first so other equipment dependent on that unit will function properly.

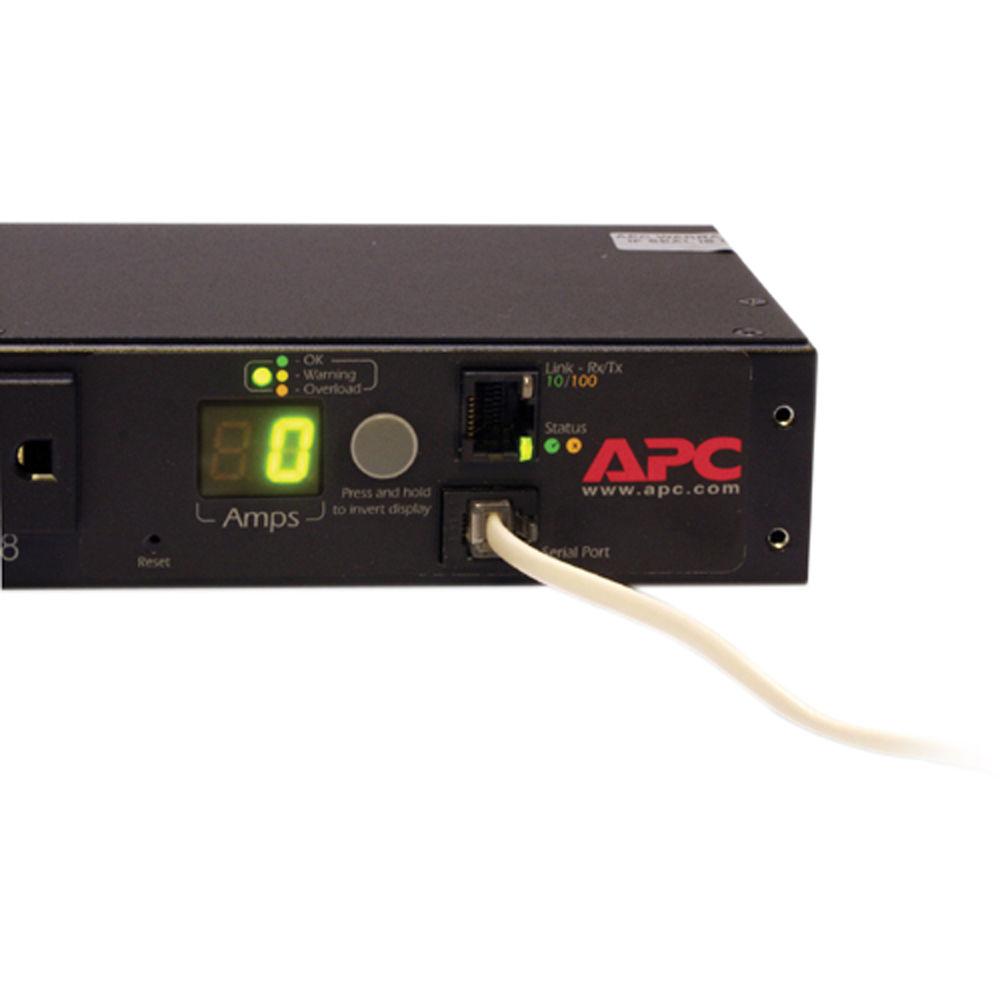

- Local Current Monitoring Display
- The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
- Alarm Thresholds
- Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
- Remote Individual Outlet Control
- Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).
- Network/Remote Management Capabilities
- Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
- Integrates with StruxureWare Data Center Expert
- An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video, and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
- Flash Upgradeable
- Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
- Load Indicator LED
- Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
UPC: 731304331568 In the Box APC AP7900B Switched Rack Power Distribution Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC AP7900B Switched Rack Power Distribution Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC AP7900B Specs | | | Wall Plug Type | NEMA 5-15P | | Outlets | 8 x NEMA 5-15R | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 100 VAC, 60 Hz | | Load Capacity | 1440 W | | Rated Current | 15 A | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Operating Humidity | 0 to 95% | | Storage Temperature | -13 to 149°F / -25 to 65°C | | Storage Humidity | 0 to 95% | | | | Cable Length | 12' / 3.7 m | | Cable Management | None | | Dimensions (L x W x H) | 17.5 x 4.2 x 1.7" / 44.5 x 10.8 x 4.4 cm | | Weight | 5.0 lb / 2.3 kg | | | | Package Weight | 8.125 lb | | Box Dimensions (LxWxH) | 19.1 x 13.4 x 2.7" |
