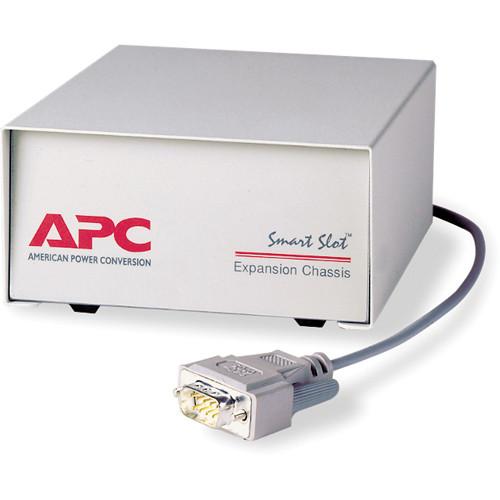

User Manual for APC AP9600 Smartslot Expansion Chassis Click to enlarge the picture
Contents of the user manual for the APC AP9600 Smartslot Expansion Chassis
- Product category: UPS Accessories APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Accessories
|
User manual for the APC AP9600 Smartslot Expansion Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The APC AP9600 Smartslot Expansion Chassis allows you to use APC management cards with APC UPSes that have an advanced computer interface port but do not have a card slot. You can also use the chassis with UPSes that have a card slot for using additional management cards.
Along with a card slot, cable marked UPS, a UPS monitoring port, and a power connector (for optional power adaptor), the Smartslot Expansion Chassis includes a status LED that provides installation and power indications. - Allows you to use APC management cards with APC UPSes that have an advanced computer interface port
- You can also use the chassis with UPSes that have a card slot for using additional management cards
- Includes a card slot, a cable marked UPS, a power connector (for optional power adaptor), and a UPS monitoring port
- Status LED provides installation and power indications
UPC: 731304002628 In the Box APC AP9600 Smartslot Expansion Chassis Mounting Pads User Manual 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC AP9600 Smartslot Expansion Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC AP9600 Specs | Maximum Height | 2.5" (64 mm) | | Maximum Width | 5" (127 mm) | | Maximum Depth | 5.2" (133 mm) | | Shipping Weight | 2.4 lb (1.1 kg) | | Shipping Height | 3.1" (80 mm) | | Shipping Width | 9.6" (235 mm) | | Shipping Depth | 5.6" (143 mm) | | Color | Beige | | Units Per Pallet | 200 | | | | Operating Environment | 0 to 104° F (0 to 40° C) | | Storage Temperature | 5 to 149° F (-15 to 65° C) | | Operating Relative Humidity | 0-95% | | Storage Relative Humidity | 0-95% | | Operating Elevation | 0-9,842.5' (0-3000 m) | | Storage Elevation | 0-49,212.6' (0-15000 m) | | Regulatory Approvals | C-tick,CE,DOC/Industry Cananda,EN 55022 Class B,FCC Part 15 Class B,VCCI | | Environmental Compliance | RoHS 7b Exemption,China RoHS | | Net/Gross Weight | 1.9 lb (0.9 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.3 x 5.7 x 3.3" |
