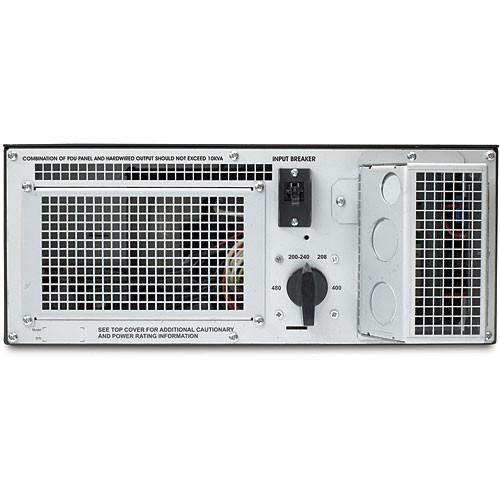

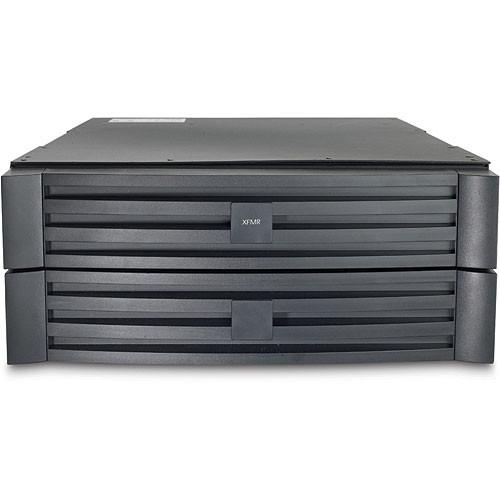

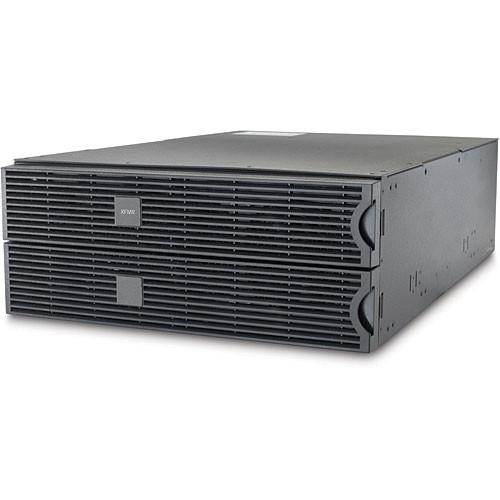

Product description The APTF10KW01 Step-Down Transformer from APC is a professional heavy-duty transformer that features a rackmount design. It can be used for step-down, step-up, or isolation control of power feeds. - Transformer
- Use this unit for step-down, step-up, or isolation control of power feeds.
- Rack Ready
- This unit include rackmount brackets that make it easy to install and manage in your rack.
UPC: 731304242208 In the Box APC APTF10KW01 Step-Down Transformer Transformer Hardwire Panel Installation Guide Mounting Hardware Rackmount Brackets User Manual Two-Year Repair or Replace Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC APTF10KW01 Step-Down Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC APTF10KW01 Specs | Construction | Metal, plastic | | Finish | Black | | Power | INPUT
Nominal Input Voltage: 230V
Input Frequency: 45 - 65 Hz
Input Connections:
Hard Wire 3-wire (2PH + G)
Hard Wire 3 wire (1PH+N+G)
Maximum Line Current per Phase: 60A
Maximum Input Current per Phase: 60A
Load Capacity: 10 kVA OUTPUT
Nominal Output Voltage: 230V
Maximum Total Current Draw per Phase: 60A
Output Connections: (1) Hard Wire 3-wire (H N + G) | | Standards | C-tick, CE, CSA,EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, UL Listed, VDE | | Dimensions (HxWxD) | Product Dimensions: 6.9 x 17 x 29.5” (175 x 432 x 749mm)
Shipping Dimensions: 16 x 23.63 x 39.38” (406 x 600 x 1000mm) | | Weight | Product Weight: 220 lbs (100 kg)
Shipping Weight: 275 lbs (125 kg) | | | | Package Weight | 275.0 lb | | Box Dimensions (LxWxH) | 38.0 x 23.0 x 11.0" |
