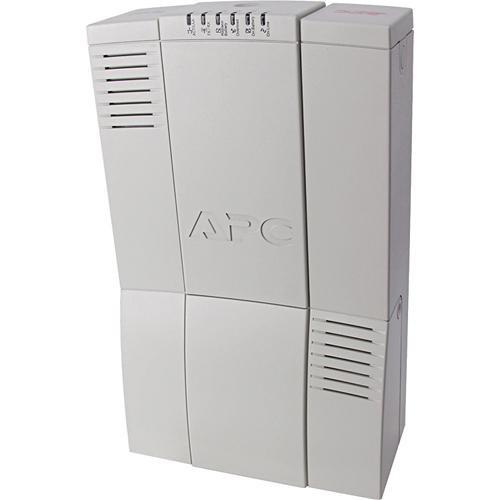

User Manual for APC Back-UPS 500 Structured Wiring UPS International Version Click to enlarge the picture
Contents of the user manual for the APC Back-UPS 500 Structured Wiring UPS
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Back-UPS 500 Structured Wiring UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Back-UPS HS 500VA 230V from APC provides professional power protection and battery backup for computer systems. In addition to standard AC surge protection, the Back-UPS protects your cable, Ethernet, and DSL connections from surges.
The UPS features 4 outlets, all of which provide battery backup. Its battery provides 13.2 minutes of run time at half-load capacity. APC offers guaranteed protection from surges and spikes with a lifetime, €10,000 Equipment Protection Policy. - Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Transformer-Block Spaced Outlets
- Protect equipment with input transformer blocks without blocking access to other receptacles.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Network Manageable
- Provides remote management of the UPS over the network.
UPC: 731304206415 In the Box APC Back-UPS 500 Structured Wiring UPS International Version (230V) Cat6 Ethernet Cable CD with Software Installation Guide User Manual Limited 2-Year Warranty Manual PDF 1.7mbwzdvxvysbvwrdzbzcuasrbwaruvwveardqec Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS 500 Structured Wiring UPS International Version in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 500 Specs | | | Total Outlets | 4 x IEC-320 C13 | | Plug Type | IEC-320 C14 | | Data Line Protection | RJ11, RJ45 | | | | Surge Energy Rating | 600 Joules | | Maximum Wattage | 300 W | | Nominal Input Voltage | 230 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 230 VAC | | Load Capacity | 500 VA | | Circuit Breaker Rating | 4 A | | | | Cells | 1 | | Chemistry | Lead-Acid | | Full-Load Runtime | 3.3 Minutes | | Half-Load Runtime | 13.2 Minutes | | Charging Time | 8 Hours | | Replacement Battery | RBC2 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 40 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 8' / 2.4 m | | Dimensions (W x H x D) | 8.9 x 14.6 x 4.1" / 225.0 x 372.0 x 105.0 mm | | Weight | 16.3 lb / 7.4 kg | | | | Package Weight | 18.45 lb | | Box Dimensions (LxWxH) | 18.0 x 12.0 x 6.3" |
