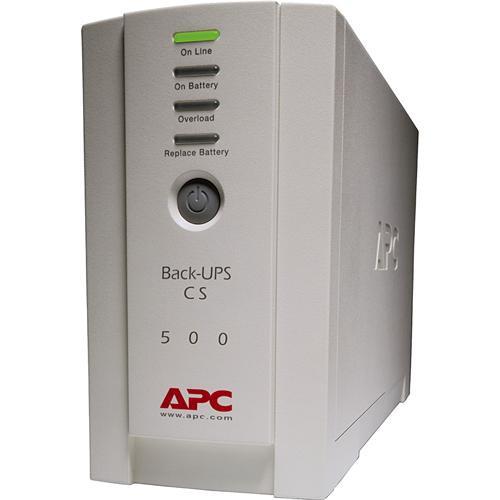

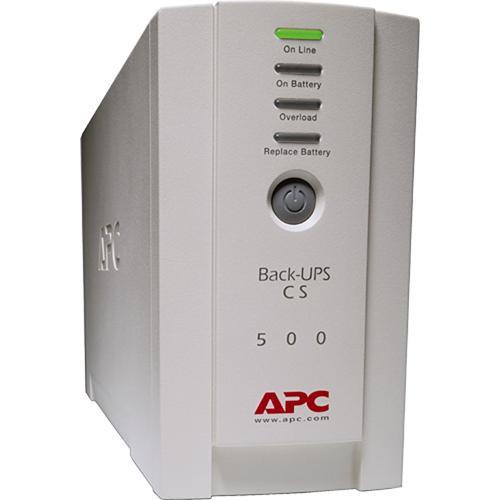

User Manual for APC Back-UPS 500VA International Version Click to enlarge the picture
Contents of the user manual for the APC Back-UPS 500VA International Version
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Back-UPS 500VA International Version contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Back-UPS 500VA International Edition(230V) from APC provides professional power protection and battery backup for computer systems. Safe system shutdown and advanced power management capabilities keep systems and data safe via serial or USB connection, and built-in fax/modem connections protect systems from surges traveling on data lines.

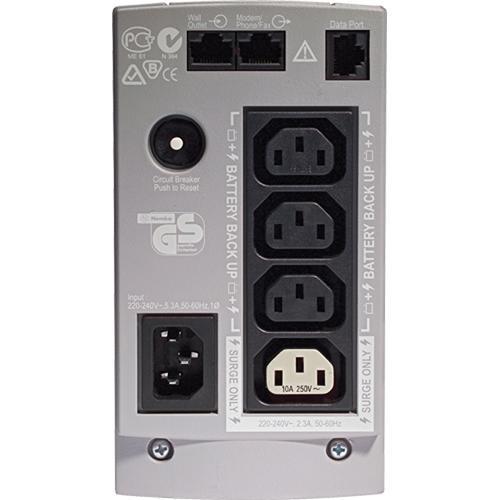

The UPS features 4 outlets, 3 of which provide battery backup. Its battery provides 13.9 minutes of run time at half-load capacity. It also delivers battery-powered AC, and APC offers guaranteed protection from surges and spikes with a lifetime, €100,000 (£50,000) Equipment Protection Policy. - USB/Serial Connectivity
- USB connectivity provides management of the UPS via a USB port and Serial Connectivity provides management of the UPS via a serial port.
- Lightning and Surge Protection
- Protection from surges, spikes and even lightning is guaranteed!
- Resettable Circuit Breaker
- Instead of a hard to find fuse, there is a push-button circuit breaker for easy recovery from an overload or short circuit.
- Audible Alarms
- Proactively notifies you of changing UPS and utility power conditions.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Transformer Block Spacing
- Designed to allow the use of up to two transformer block plugs without blocking access to other receptacles.
UPC: 731304016359 In the Box APC Back-UPS 500VA International Version (230V) Software CD Detachable 1.2m IEC Power Cord Detachable 1.8m IEC Power Cord Telephone Cable USB Cable Documentation CD Limited 2-Year Warranty Manual PDF 407.2kbyusuaawrvxaesxuawvtzerafax Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS 500VA International Version in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 500 Specs | | | Total Outlets | 4 | | Protected Outlets | 3 x IEC-320 C13 (Battery and Surge)
1 x IEC-320 C13 (Surge Only) | | Plug Type | IEC-320 C14 | | Data Line Protection | RJ11, RJ45 | | Communications | USB | | Noise Filtering | 5% | | Topology | Standby | | | | Surge Energy Rating | 310 Joules | | Maximum Current | 7 A | | Maximum Wattage | 300 W | | Nominal Input Voltage | 230 VAC | | Input Voltage Adjustable Range | 160 to 300 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 230 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Load Capacity | 500 VA | | Circuit Breaker Rating | 7 A | | Waveform | Simulated Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 3.8 Minutes | | Half-Load Runtime | 13.9 Minutes | | Replacement Battery | RBC2 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 3.6 x 6.5 x 11.2" / 9.1 x 16.5 x 28.4 cm | | Weight | 13.8 lb / 6.3 kg | | | | Package Weight | 14.85 lb | | Box Dimensions (LxWxH) | 8.8 x 7.5 x 6.5" |
