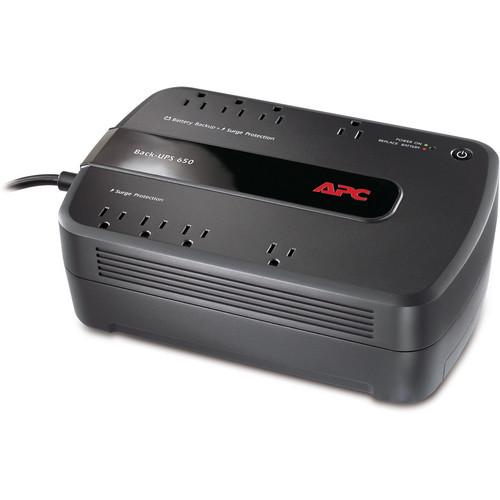

User Manual for APC Back-UPS 650 8 Outlet Surge Protector and Battery Backup Click to enlarge the picture
Contents of the user manual for the APC Back-UPS 650 8 Outlet Surge
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Back-UPS 650 8 Outlet Surge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Back-UPS 650 8 Outlet Surge Protector and Battery Backup (120V) from APC provides backup battery power and surge protection for your devices that require outlet power, such as your computer. This Uninterruptible Power Supply (UPS) features four surge-only protected outlets and four surge and battery-protected outlets with a total output power of 390W. At half-load, or 195W, the battery can last for up to 12 minutes; at full load, or 390W, it can last for 3.3 minutes. This UPS is compatible with devices that have an input voltage of 120V and a frequency of 50/60Hz, such as those found in the United States.
Beyond the more fundamental functions of this UPS, it also boasts more advanced features. If power conditions change while your devices are connected, this UPS will sound an alarm. If the utility power is out, you can rely upon the unit's battery to turn on any devices connected to battery-protected outlets. The battery is hot-swappable and the UPS can be monitored via its built-in USB port. These features, among others, make this UPS a great way to ensure that any devices requiring steady, constant power are protected, such as servers, workstation computers, monitors, IP cameras, and more. It also delivers battery-powered AC. Fear the rain and lightning no more! - Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- LED Indicators
- Provide easy-to-read status of the unit and utility power conditions
- Resettable Circuit Breaker
- No need to replace a fuse. Just push the circuit breaker button for easy recovery from an overload or short circuit
- Battery-protected and Surge-only Outlets
- Reserves power capacity and run time for connected equipment that require battery
- Cold-start Capable
- Provides temporary battery power when the utility power is out
- Hot-swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
- Dataline Surge Protection
- Provides protection of connected equipment from power surges on the data lines
- Automatic Self-test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Audible Alarms
- Provides notification of changing utility power and UPS conditions
- User-replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- USB Connectivity
- Provides management of the UPS via a USB port
- Transformer-block Spaced Outlets
- Protect equipment with input transformer blocks without blocking access to other receptacles
- Intelligent Battery
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Safety-agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Lifetime Data Recovery Warranty
- Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit
- Battery Replacement without Tools
- Allows quick, easy battery replacement
UPC: 731304285434 In the Box APC Back-UPS 650 8 Outlet Surge Protector and Battery Backup (120V) USB Cable User Manual Limited 3-Year Warranty User Manual PDF 84.2kb More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS 650 8 Outlet Surge Protector and Battery Backup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 650 Specs | | | Total Outlets | 8 | | Protected Outlets | 4 x NEMA 5-15R (Battery and Surge)
4 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ45 | | Communications | USB | | Noise Filtering | 5% | | | | Surge Energy Rating | 340 Joules | | Maximum Current | 12 A | | Maximum Wattage | 390 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 50/60 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz | | Load Capacity | 650 VA | | Waveform | Simulated Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 3.3 Minutes | | Half-Load Runtime | 12 Minutes | | Charging Time | 24 Hours | | Replacement Battery | RBC17 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 5 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 3.3 x 7.1 x 11.8" / 8.6 x 18.0 x 28.4 cm | | Weight | 13.7 lb / 6.2 kg | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 15.2 x 9.2 x 5.3" |
