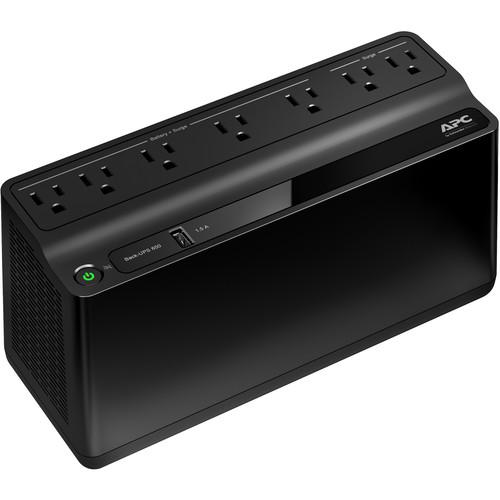

User Manual for APC Back-UPS 650VA Battery Backup & Surge Protector with USB Charging Port Click to enlarge the picture
Contents of the user manual for the APC Back-UPS 650VA Battery Backup &
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Back-UPS 650VA Battery Backup & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Safely shut down computer systems and guard connected equipment from surges with the Back-UPS 650VA Battery Backup & Surge Protector from APC. The UPS is armed with a total of seven NEMA 5-15R outlets, with five providing surge and backup power and two designed for surge protection only. In the event of a power outage, it comes equipped with an internal battery that delivers up to 360W of power. The battery-powered outlets provide up to 2.5 minutes of use at full load and 51 minutes at 50W. For electrical spikes, the UPS has a 490J surge energy rating. There's also a USB port that delivers up to 1.5A of power for charging smartphones, MP3 players, and other battery-powered devices. Included along with the backup UPS is a USB cable and a downloadable PowerChute software program to monitor energy usage and prevent data corruption by automatically saving files and shutting down a computer system. - Battery Backup
- The BN650M1 is designed to maximize runtime for devices such as multiple PCs and television equipment that consume high amounts of power. After these devices are safely shut down, the BN650M1 continues to run low power loads (such as home networking equipment) for over 4 hours during extended outages.
- Power Protection and Convenience
- The BN650M1 features a total of seven power outlets, all of which shield your devices against surges and spikes in voltage. Five of these are UPS battery backup outlets that provide instant power to connected devices when there is an outage. For added convenience, the BN650M1 provides one USB charging port, allowing you to conveniently charge your mobile devices during power emergencies. This UPS also offers 3 transformer-block spaced outlets, so you can connect bulky transformers without covering other outlets.
- Shutdown and Power Management Software
- APC PowerChute Personal Edition power and energy management software prevents data corruption by automatically saving files and shutting down your system in an extended power outage or low-battery condition. PowerChute monitors and displays energy usage and reduces costs via customized energy management planning. Simply connect the USB cable that's included with the UPS to your computer to easily download and use the software.
- Warranty and Equipment Protection Policy
- The Back-UPS BN650M1 is covered by a three-year limited warranty. It also comes with a lifetime connected equipment protection policy of up to $75,000. APC will repair or replace attached devices that sustain surge-related damage while properly connected to a registered Back-UPS uninterruptible power supply unit.
UPC: 731304325123 In the Box APC Back-UPS 650VA Battery Backup & Surge Protector with USB Charging Port USB Cable Limited Lifetime $75,000 Equipment Protection Policy Limited 3-Year Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS 650VA Battery Backup & Surge Protector with USB Charging Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the APC Back-UPS 650VA Battery Backup & Surge Protector with USB Charging Port can be downloaded in PDF format at the link stated below.
Technical parametersAPC Back-UPS 650VA Specs | | | Output Power Capacity | 360 W / 650 VA | | Max Configurable Power | 360 W / 650 VA | | Nominal Output Voltage | 120 V | | Output Frequency (Sync to Mains) | 50/60 Hz ±3 Hz | | Topology | Standby | | Waveform Type | Stepped approximation to a sinewave | | Output Connections | 2 x NEMA 5-15R (Surge)
5 x NEMA 5-15R (Battery Backup)
1 x USB Type-A (1.5 A) | | Transfer Time | 6 ms typical
10 ms maximum | | Runtime | 51.5 minutes at 50 W
22.9 minutes at 100 W
8.7 minutes at 200 W
4 minutes at 300 W
Full Load: 2.5 minutes at 360 W
Half Load: 10.2 minutes at 180 W | | | | Nominal Input Voltage | 120 V | | Input Frequency | 50/60 Hz ±3 Hz (auto sensing) | | Input Connections | NEMA 5-15P | | Cord Length | 5.0' / 1.5 m | | Input Voltage Range for Utility Operation | 92 to 139 V | | | | Battery Type | Maintenance-free and leakproof sealed lead-acid battery with suspended electrolyte | | Typical Recharge Time | 10 hours | | Expected Battery Life | 3-5 years | | | | Interface Ports | USB Type-B | | Control Panel | LED status display with On Line, On Battery, Replace Battery, and Overload indicators | | Audible Alarm | Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm | | | | Surge Energy Rating | 490 joules | | Filtering | Full time multi-pole noise filtering: 5% of IEEE surge let-through, zero clamping response time (instantaneous) | | | | Operating Environment | 32 to 104°F / 0 to 40°C | | Operating Relative Humidity | 0 to 90% (non-condensing) | | Operating Elevation | 0 to 10,000' / 0 to 3,048 m | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Relative Humidity | 0 to 95% (non-condensing) | | Storage Elevation | 0 x 50,000' / 0 x 15,240 m | | Audible Noise | 35 dBA (at 3.3' / 1.0 m from surface of unit) | | Online Thermal Dissipation | 16 BTU/hour | | | | Approvals | California (CEC) Battery Charger, cTUVus, Energy Star v1.0 (USA), FCC Part 15 Class B, NOM, UL 1778 | | | | RoHS | Compliant | | REACH | REACH: Contains No SVHCs | | | | Dimensions | 5.5 x 10.8 x 4.1" / 13.9 x 27.4 x 10.5 cm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 8.65 lb | | Box Dimensions (LxWxH) | 14.1 x 7.5 x 6.6" |
