User Manual for APC Back-UPS 650VA International Version Click to enlarge the picture
Contents of the user manual for the APC Back-UPS 650VA International Version
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Back-UPS 650VA International Version contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

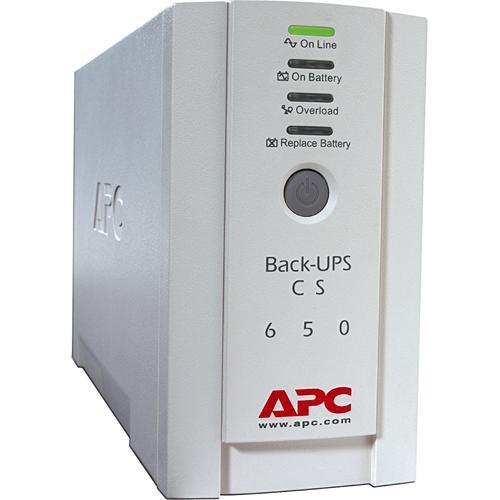

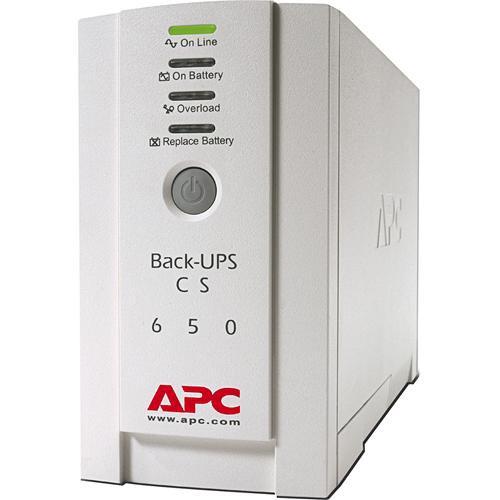

Product description The Back-UPS 650VA International Version (230V) from APC provides professional power protection and battery backup for computer systems. Safe system shutdown and advanced power management capabilities keep systems and data safe via USB connection, and built-in fax/modem connections protect systems from surges traveling on data lines.
The UPS features 4 outlets, 3 of which provide battery backup. Its battery provides 14.8 minutes of run time at half-load capacity. APC offers guaranteed protection from surges and spikes with a lifetime, €100,000 (£50,000) Equipment Protection Policy. - USB Connectivity
- Provides management of the UPS via a USB port (not available on all models).
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Lightning and Surge Protection
- Protection from surges, spikes and even lightning is guaranteed!
- Resettable Circuit Breaker
- Instead of a hard to find fuse, there is a push-button circuit breaker for easy recovery from an overload or short circuit.
- Audible Alarms
- Proactively notifies you of changing UPS and utility power conditions.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Transformer Block Spacing
- Designed to allow the use of up to two transformer block plugs without blocking access to other receptacles.
UPC: 731304219781 In the Box APC Back-UPS 650VA International Version (230V) Software CD-ROM 2 x Detachable IEC C13 to IEC C14 Power Cords USB Cable User Manual CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS 650VA International Version in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

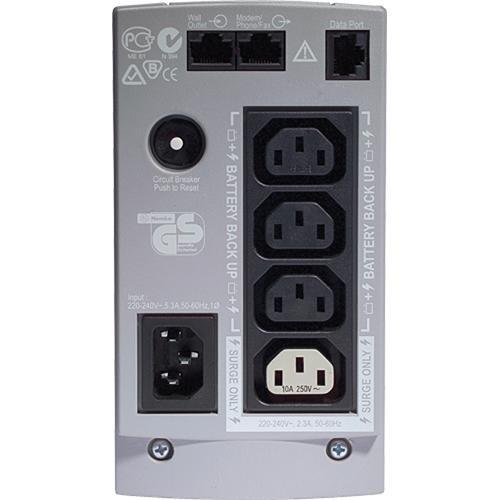

Technical parametersAPC 650 Specs | | | Total Outlets | 4 | | Protected Outlets | 3 x IEC-320 C13 (Battery and Surge)
1 x IEC-320 C13 (Surge Only) | | Plug Type | IEC-320 C14 | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | | | Maximum Wattage | 400 W | | Nominal Input Voltage | 230 VAC | | Input Voltage Adjustable Range | 160 to 282 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 230 VAC | | Load Capacity | 650 VA | | | | Cells | 1 | | Chemistry | Lead-Acid | | Full-Load Runtime | 4.7 Minutes | | Half-Load Runtime | 14.9 Minutes | | Charging Time | 8 Hours | | Replacement Battery | RBC17 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 30,000' / 9000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 6.6' / 2 m | | Dimensions (W x H x D) | 3.6 x 6.5 x 11.2" / 9.1 x 16.5 x 28.4 cm | | Weight | 13.3 lb / 6.0 kg | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 16.0 x 9.5 x 7.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to APC Back-UPS 650VA International Version
| Subject: enquiry | | Date: 30.08.2022 19:43:58 | Name: chris loubser | is it possible to run my tv decoder full time on this ups as it was on a PC before.
it works for 5 min but then shuts down and does not restart automaticaly after loadshedding.
the decoder uses very little watts | | Post reply |
