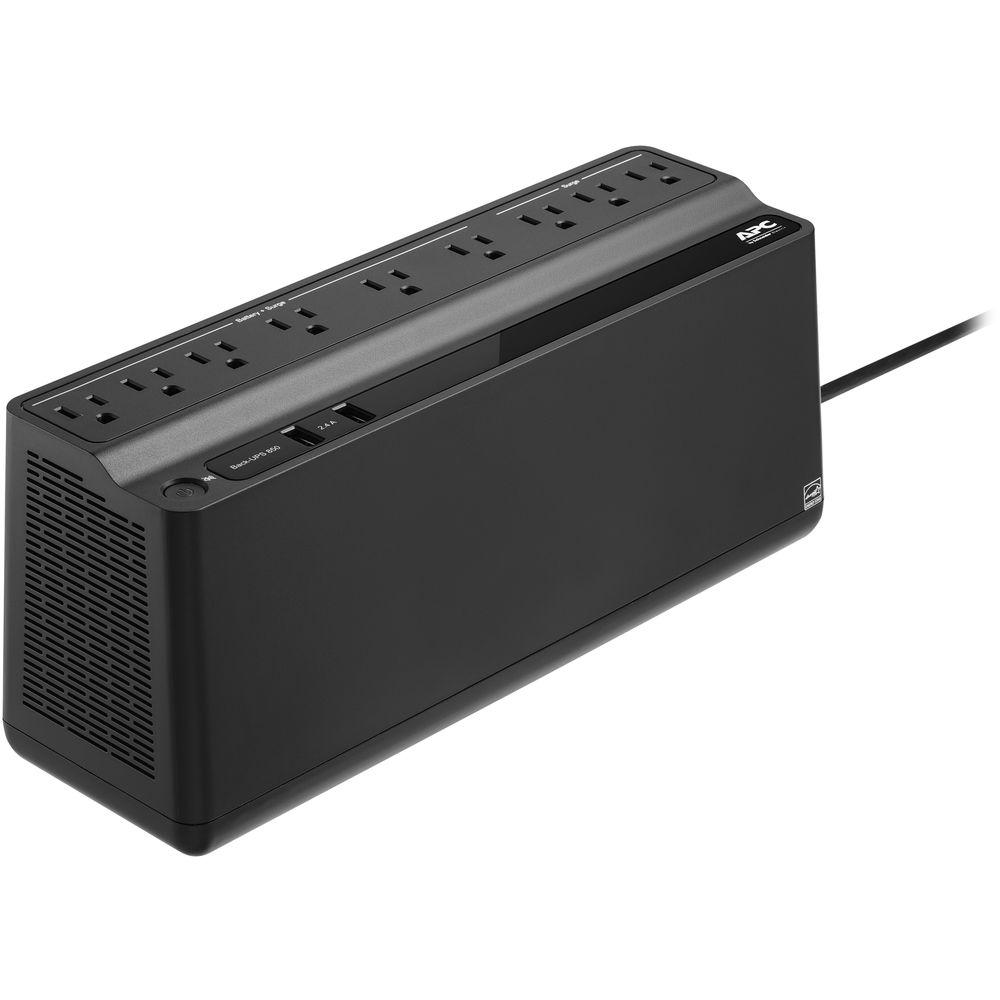

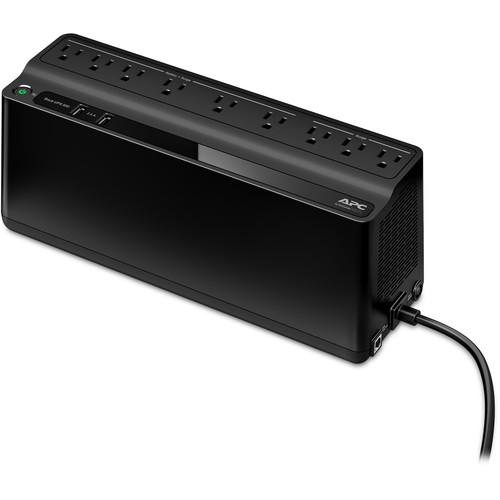

User Manual for APC Back-UPS BE850M2 Power Supply Click to enlarge the picture
Contents of the user manual for the APC Back-UPS BE850M2 Power Supply
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Back-UPS BE850M2 Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description - APC BE850M2 UNINTERRUPTED POWER SUPPLY

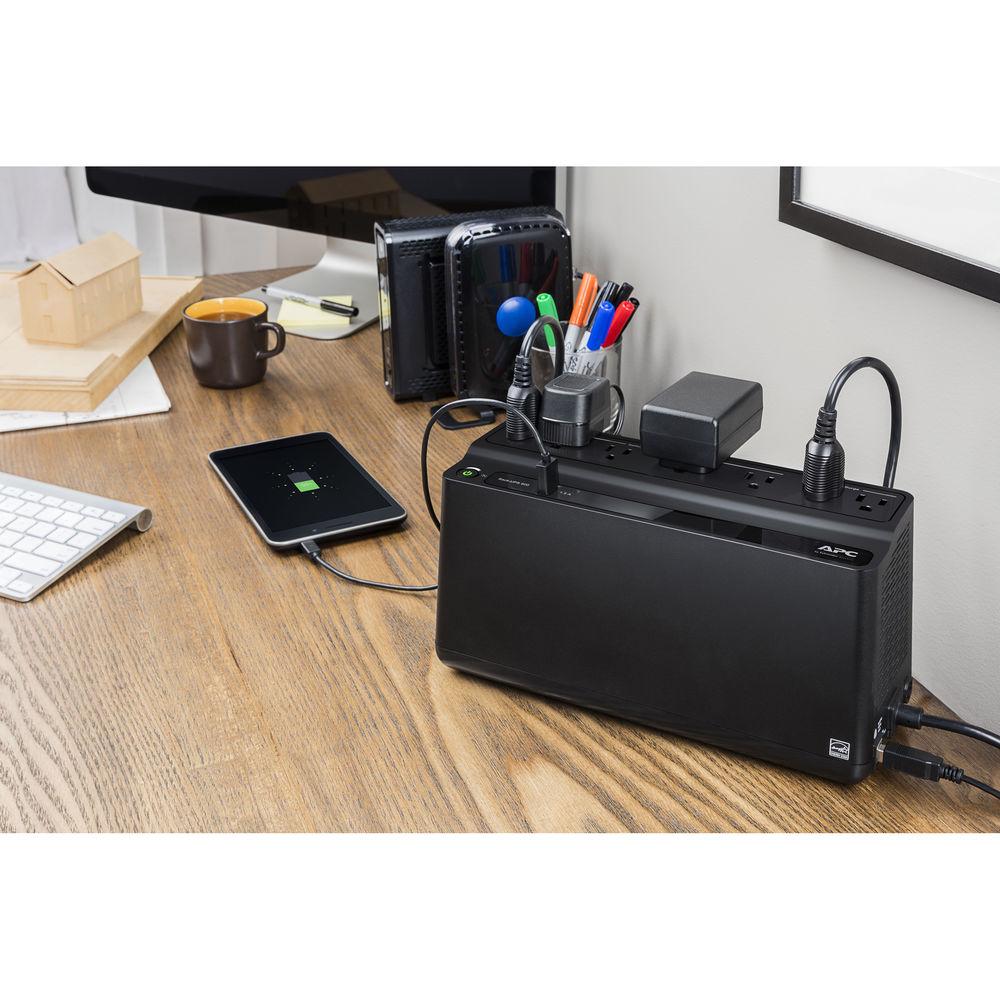

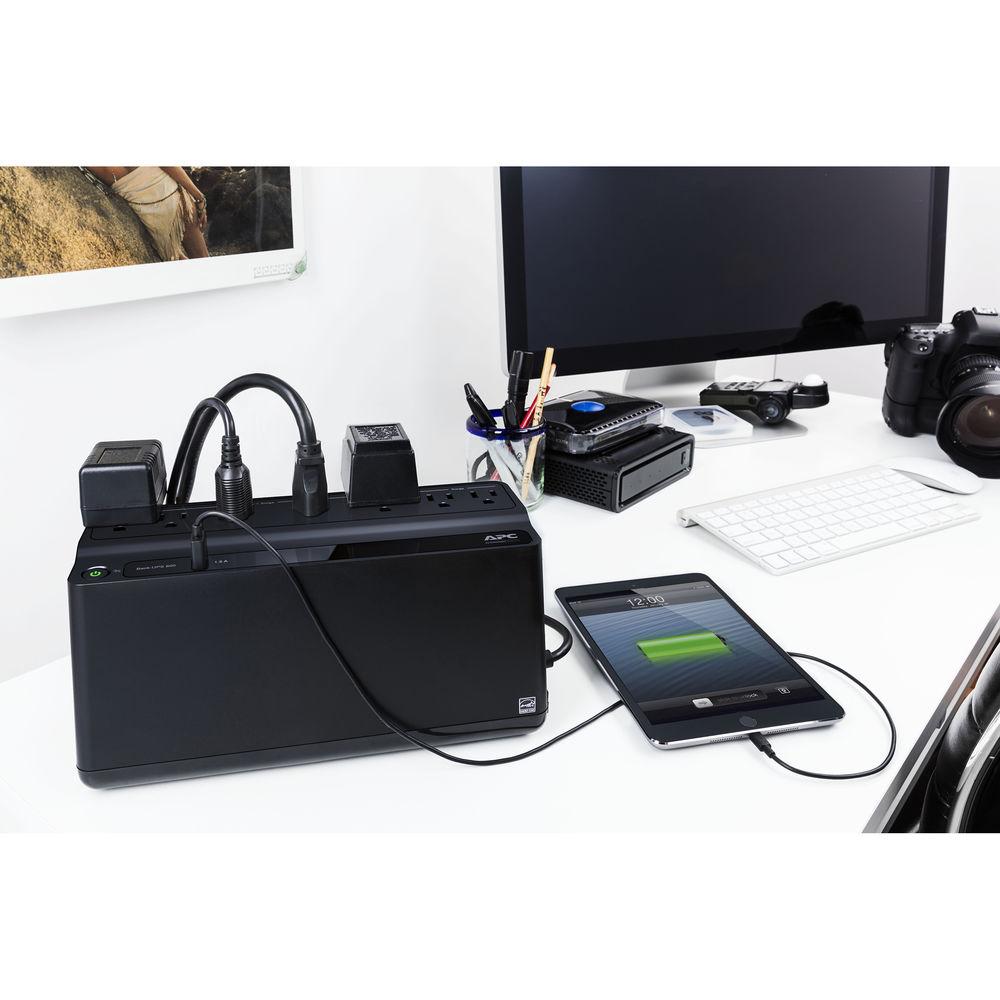

The Back-UPS BE850M2 Power Supply from APC is a combination of a battery backup and surge protector to offer protection and power for your connected electronic equipment. This power supply sports a total of nine power outlets, and six of these outlets provide power in the event of a power outage. It comes built with a hot-swappable battery that powers an entry-level computer up to 90 minutes or lets you safely power down a mid-range computer system connected to multiple support devices. For convenience, it comes with three transformer-sized outlets as well as two USB ports, which allow you to charge mobile devices without using USB wall adapters. There are also audio alarms and LED indicators to notify you of replacing the onboard battery or damaged wiring inside a building. - Battery and surge protected outlets protect your hardware and data during power outages, surges and spikes
- Battery-protected and surge-only outlets reserve power capacity and run time for connected equipment that require UPS battery backup while providing surge only protection for less critical equipment
- Surge-only outlets safeguard secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage
- Safety-agency approval ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging
- LED status display for quickly understanding unit and power status with visual indicators
- Adjustable voltage sensitivity provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
- Audible alarms offer notification of changing utility power and UPS power conditions
- Periodic automatic battery self-test ensures early detection of a battery that needs to be replaced
- Early-warning fault analysis on batteries enabling timely preventive maintenance
- Building wiring fault LED indicator informs users of potentially dangerous wiring problems in the wall circuit
- Cold-start support provides temporary battery power when the utility power is out
- Disconnected battery notification warns when a battery is not available to provide backup power
- Hot-swappable batteries help ensure clean, uninterrupted power to protected equipment while batteries are being replaced

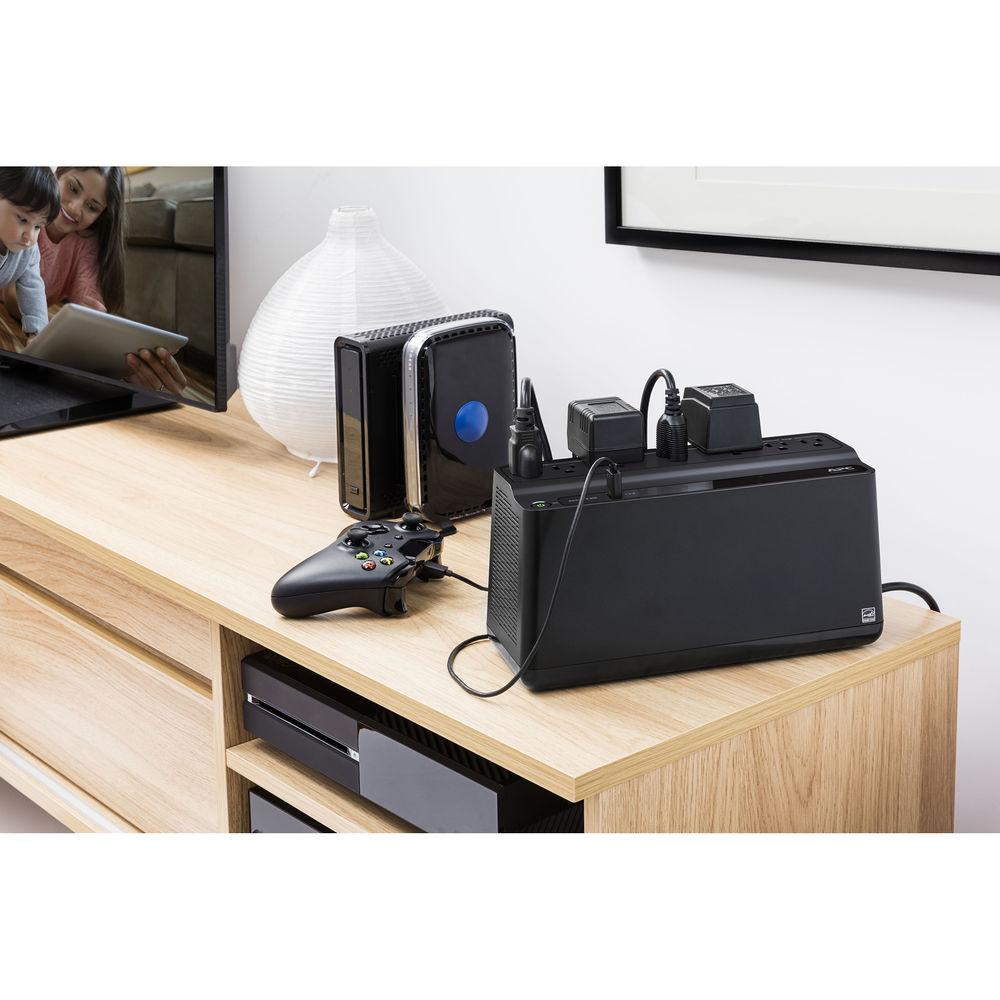

- With a transformer block spacing design, you can connect bulky transformer block plugs without covering up other outlets
- $75,000 Equipment Protection Policy
UPC: 731304325260 In the Box APC Back-UPS BE850M2 Power Supply USB Cable Limited 3-Year Warranty More from Manufacturer scseqxxdduyeuwzeyyddtvu More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS BE850M2 Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC BE850M2 Specs | | | Total Outlets | 9 | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge)
3 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P | | USB Charging Ports | 2 x USB Type-A (2.4 A) | | Communications | USB | | Topology | Standby | | Transfer Time | 6 to 10 ms | | | | Surge Energy Rating | 354 Joules | | Maximum Wattage | 450 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 92 to 139 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1 Hz | | Load Capacity | 850 VA | | Waveform | Simulated Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 8 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Noise Level | 45 dBA | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 5.5 x 12.9 x 4.1" / 14.0 x 32.8 x 10.4 cm | | Weight | 9.0 lb / 4.1 kg | | | | Package Weight | 10.5 lb | | Box Dimensions (LxWxH) | 16.3 x 7.6 x 6.9" |
