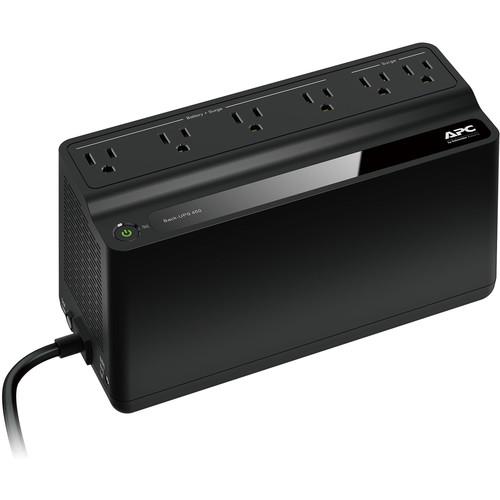

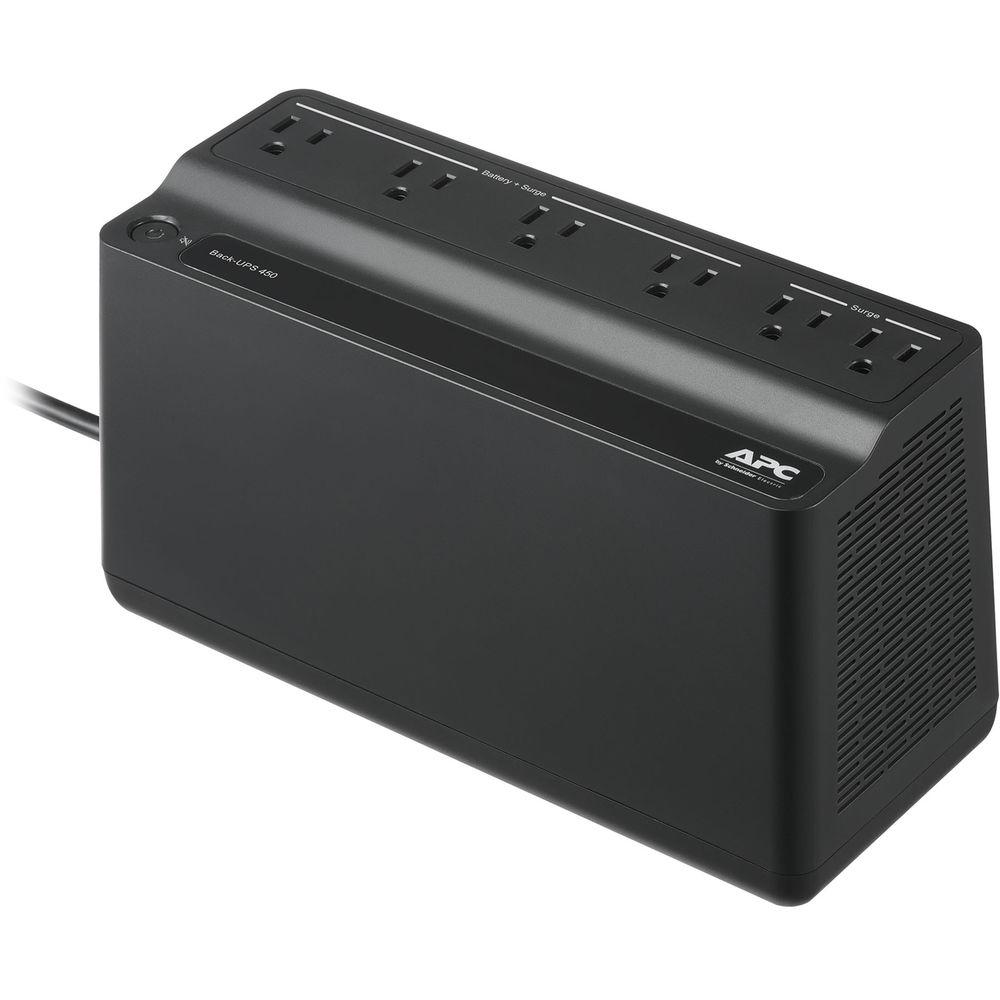

User Manual for APC Back-UPS BN450M

Click to enlarge the picture
APC Back-UPS BN450M Contents of the user manual for the APC Back-UPS BN450M
  • Product category: UPS Backup APC
  • Brand: APC
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for APC UPS Backup

User manual for the APC Back-UPS BN450M contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any APC product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!

Product description

Designed for computers, wireless networking devices, gaming consoles, security systems, and other electronics, the Back-UPS BN450M from APC not only provides power to your critical electronics when the power goes out, but also offers surge, spike, and lighting protection for attached devices. It offers six total NEMA 5-15R outlets, two of which are surge-only outlets and four of which are battery backup & surge outlets, with three of the outlets featuring block spacing to allow bulky transformers to be plugged in without covering other outlets.

The BN450M provides an output capacity of 255W / 450 VA, a nominal output voltage of 120V, an output frequency of 50/60 Hz ±3 Hz, an input voltage of 120V at 50/60 Hz ±3 Hz using its included 5' cord with a NEMA 5-15P plug, has a surge energy rating of 180 joules, and a square waveform. Its sealed, lead-acid battery is maintenance-free and has suspended electrolytes and can be recharged in around 8 hours. When its load is 10W, the BN450M has a runtime of around 214.6 minutes and can also run for 37 minutes when its load is 50W, 15 minutes when its load is 100W, 11 minutes when running a half load of 127.5W, 5 minutes when its load is 200W, and 3 minutes when it is running a full load of 255W. Protection is provided by a limited 3-year warranty and a lifetime connected equipment guarantee of $75,000.

General Features

    Stay Connected for Hours During Storms and Blackouts
  • The BN450M is designed to maximize runtimes for devices such as multiple computers and television equipment that consume high amounts of power. After these devices are safely shut down, the BN450M continues to run low power loads (such as home networking equipment) for over 3 hours during extended outages.
    Trusted Power Protection and Convenience
  • The BN450M features a total of six power outlets, all of which shield your devices against dangerous surges and spikes in voltage. Four of these are battery-backed outlets that will continue to provide power to connected devices when there is an outage. This UPS also offers 3 transformer block spaced outlets, so you can connect bulky transformers without covering other outlets.
    ENERGY STAR Rated for Efficiency
  • The Back-UPS BN450M is ENERGY STAR certified for its efficient operation and ability to help realize lower energy costs.
    Warranty and Equipment Protection Policy
  • The Back-UPS BN450M is covered by a limited 3-year warranty. It also comes with a limited lifetime connected equipment protection policy of up to $75,000. APC will repair or replace attached devices that sustain surge-related damage while properly connected to a registered Back-UPS uninterruptible power supply unit.


    Safety-Agency Approved
  • Helps ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.


    Battery-Protected and Surge-Only Outlets
  • Battery-protected outlets reserve power capacity and run time for connected equipment that require UPS battery backup, while also providing surge-only protection for less critical equipment. Surge-only outlets protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.


    Battery Failure Notification
  • This provides early-warning fault analysis on batteries, thus enabling timely preventive maintenance.
    Automatic Self-Test
  • A periodic battery self-test ensures early detection of a battery that needs to be replaced.
    Intelligent Battery Management
  • Helps maximize battery performance, life, and reliability through intelligent, precision charging.


    LED Status Display
  • Quickly understand unit and power status with visual indicators.
    Audible Alarms
  • Provides notification of changing utility power and UPS power conditions.
UPC: 731304329374 In the Box APC Back-UPS BN450M
  • 5.0' / 1.5m Line Cord with NEMA 5-15 Right Angle Plug End
  • Limited Lifetime $75,000 Equipment Protection Policy
  • Limited 3-Year Warranty
  • More from Manufacturer zfxrddubaxfszfba More info from APC Table of Contents

    Upload User Manual

    Have you got an user manual for the APC Back-UPS BN450M in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    APC 450VA Specs

    Total Outlets 6
    Protected Outlets 4 (Battery and Surge)
    2 (Surge Only)
    Plug Type NEMA 5-15P
    Topology Standby
    Transfer Time 6 to 10 ms
    Surge Energy Rating 180 Joules
    Maximum Current 5 A
    Maximum Wattage 255 W
    Nominal Input Voltage 120 VAC
    Input Voltage Adjustable Range 88 to 139 VAC
    Input Frequency 50/60 Hz ± 3 Hz (Auto Sensing)
    Nominal Output Voltage 120 VAC
    Output Frequency 50/60 Hz ± 3 Hz
    Load Capacity 450 VA
    Waveform Sine Wave
    Chemistry Lead-Acid
    Charging Time 8 Hours
    Operating Temperature 32 to 104°F / 0 to 40°C
    Operating Humidity 0 to 95%
    Storage Temperature -4 to 122°F / -20 to 50°C
    Storage Humidity 0 to 95%
    Operating Altitude 10,000' / 3000 m
    Storage Altitude 50,000' / 15,000 m
    Certifications REACH, RoHS, as per Manufacturer
    Cable Length 5' / 1.5 m
    Dimensions (W x H x D) 5.5 x 10.0 x 4.1" / 14.0 x 25.4 x 10.5 cm
    Weight 5.8 lb / 2.6 kg
    Package Weight 6.64 lb
    Box Dimensions (LxWxH) 12.5 x 8.5 x 5.7"


    90% users recommend this product to others. And what about you?
    Rating: 4.5 of 5

    This product has already been rated by 55 owners. Add your rating and experience with the product.


    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to APC Back-UPS BN450M

    Subject: APC Model BN450M
    Date: 24.11.2022 22:05:18Name: jim beishline
    my BN450M surge protector unit keeps beeping, the light flashes green to red.
    I tried plugging it into other outlets, same thing. beeping, flashing.!!
    there is a yellow plastic piece on the bottom that says battery connector. could
    that be the problem? it doesn't seem to want to come out. is this a possibility
    for the unit malfunctioning? the unit is probably almost 15 years old. I really like the unit it. it is solid and heavy. I hope I don't have to throw it out. what do you guys think, is it the yellow plastic chip card on the bottom? if so how would i find another one these yellow things?
    Post reply

    Subject: Battery charge
    Date: 15.05.2021 12:13:40Name: Larah
    How to know if BN450M is charging since there is no battery indicator?
    Post reply
