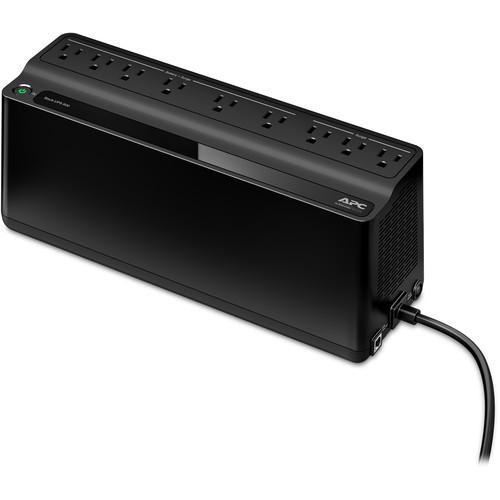

User Manual for APC Back-UPS BN900M Battery Backup & Surge Protector Click to enlarge the picture
Contents of the user manual for the APC Back-UPS BN900M Battery Backup &
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Back-UPS BN900M Battery Backup & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Power and protect your critical electronics in home and small business environments while also maintaining your Internet connection during prolonged outages using the Battery Back-UPS BN900M from APC. In the case of a power outage, it can provide 5.9 hours of use at 10W, 90 minutes of use at 40W, 41 minutes of use at 80W, and 14.8 minutes of use at 180W. It also provides an output capacity of 900 VA / 480W, nine total NEMA5-15R outlets (six battery backup & surge and three surge-only), an input voltage of 120 VAC at 50/60 Hz ±3 Hz using its 5' cord with a NEMA5-15P plug, and a surge energy rating of 354 joules. Its sealed, lead-acid battery is maintenance-free and has suspended electrolytes.
APC's Battery Back-UPS BN900M has been designed for desktop computers, wireless routers, broadband modems, mobile devices, external monitors, VoIP phones, Wi-Fi cameras, structured wiring closets, televisions, security systems, automation hubs, gaming consoles, and more. Included is a USB cable, a lifetime $75,000 equipment protection policy, and a limited 3-year repair or replace warranty. General Features - Runtime
- Internet Modem and Router: 10W / 5.9 hours
Entry Level PC: 40W / 90 minutes
Notebook computer + Network Gateway: 80W / 41 minutes
Mid-Range PC with 20" LCD + Notebook + Network Gateway: 180W / 14.8 minutes - Safety-Agency Approved
- Helps ensure the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Battery-Protected & Surge-Only Outlets
- Reserves power capacity and run time for connected equipment that require UPS battery backup while providing surge-only protection for less critical equipment. Surge-only outlets help protect against lightning, surges, and spikes without reducing the battery power used to run primary electronics during an outage.
- Automatic Self-Test
- Periodic battery self-tests help ensure early detection of a battery that needs to be replaced.
- Intelligent Battery Management
- Helps maximizes battery performance, life, and reliability through intelligent and precise charging.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries, enabling timely and preventive maintenance.
- LED Status Display
- Understand the unit's and power status with visual indicators.
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions. Alarms can be quickly muted with the touch of a button.
- More Battery Backup Outlets
- The BN900M has enough outlets to power up to 6 devices at once.
- Wide Outlet Spacing
- Wide outlet spacing allows you to plug in bulky transformer plugs without covering other outlets.
- Smaller and Lighter
- The BN900M is smaller and lighter than previous models, allowing you to easily relocate and position your UPS in most environments.
- Stay Connected
- Power your wireless home networking equipment (router, modem, and VoIP phones) and maintain your Internet connection for nearly 6 hours after safely shutting down your PC or other high powered devices.
- Wall Mounting Sockets
- Keyhole sockets allow wall mounting in structured wiring closets, behind desks, in basements and garages, and more.
UPC: 731304326144 In the Box APC Back-UPS BN900M Battery Backup & Surge Protector USB Cable Limited Lifetime $75,000 Equipment Protection Policy Limited 3-Year Warranty More from Manufacturer crrufdcyftqazubfefqezzddb More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS BN900M Battery Backup & Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC NS 900VA Specs | | | Total Outlets | 9 | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge)
3 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P | | Communications | USB | | Topology | Standby | | Transfer Time | 6 to 10 ms | | | | Surge Energy Rating | 354 Joules | | Maximum Current | 15 A | | Maximum Wattage | 480 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 92 to 136 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 115 VAC | | Output Voltage Range | 115 to 120 VAC | | Output Frequency | 50/60 Hz ± 1 Hz | | Load Capacity | 900 VA | | Circuit Breaker Rating | 15 A | | Waveform | Simulated Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 8 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 45 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 5.5 x 12.9 x 4.1" / 13.9 x 32.7 x 10.5 cm | | Weight | 9.0 lb / 4.1 kg | | | | Package Weight | 10.65 lb | | Box Dimensions (LxWxH) | 16.0 x 7.0 x 7.0" |
