User Manual for APC Back-UPS Connect 50 Mobile Power Pack Click to enlarge the picture
Contents of the user manual for the APC Back-UPS Connect 50 Mobile Power
- Product category: UPS & Accessories APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS & Accessories
|
User manual for the APC Back-UPS Connect 50 Mobile Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

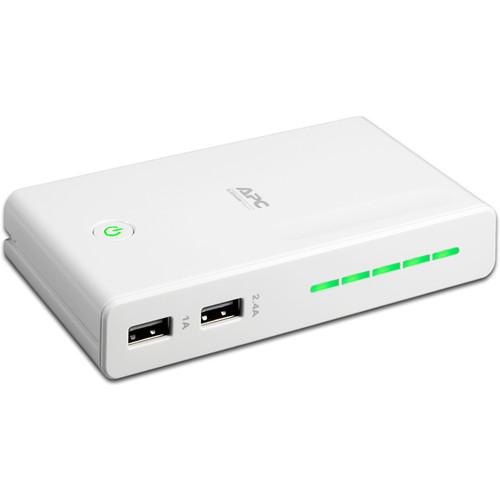

Product description The APC Back-UPS Connect 50 Mobile Power Pack will charge any portable device that charges via USB, and it will function as a battery for the APC BGE50ML UPS. It has two USB outputs and a micro-USB input for charging independent of the UPS. When charging through the UPS, it will charge in approximately 2.5 hours, while charging via micro-USB will charge it in about 8 hours. It has a 3- to 5-year expected life, and includes a micro-USB cable. - Lithium-Ion Battery
- Lithium-ion batteries are designed to provide approximately twice the service life of a typical lead acid battery and are smaller, lighter, and more environmentally friendly.
- USB Charging Ports are Mobile Device Compatible
- Simultaneously charge all devices that connect to power using a USB cable, including your mobile phone, tablet, audio player, handheld gaming console, and e-reader.
- Smart Charging Port
- A 2.4 amp USB port integrates Smart Charging technology to maximize charging speeds according to the type of device detected.
- Fast Recharge
- The mobile power pack charges in under 2.5 hours when docked in the base unit, so you always have network or mobile power when you need it.
- Efficient Charging
- Extends the Mobile Power Pack's battery life by automatically shutting down when the connected devices have completely charged.
- LED Battery Charge Indicator
- Push-button activated LED display provides battery charge status.
UPC: 731304316473 In the Box APC Back-UPS Connect 50 Mobile Power Pack Micro-USB Cable Limited 3-Year Warranty More info from APC wstzxxrbfywwzutufyvsvssuryvdatscxdud Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS Connect 50 Mobile Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC M12USWH Specs | Battery Type | Lithium-ion | | Battery Capacity | 11,400 mAh | | Rating | 41.2 Wh | | Maximum Input Current | Micro-USB: 2.1 A | | Input Voltage | 5 VDC | | Output Current | USB1: 2.4 A
USB2: 1.0 A | | Output Voltage | 5 V | | Indicator LEDs | 5 x Level LEDs for capacity | | Charging Time | UPS: 2.5 hours
Micro-USB: 8 hours | | Expected Battery Life | 3 to 5 years | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Conformance | Approvals: cTUVus, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-8, EN61000-4-2, EN61000-4-3, FCC Part 15 Class B, ICES-003, UN 38.3 | | Sustainability | RoHS: Compliant
REACH: Contains no SVHCs
Battery Directive: Compliant | | Dimensions (W x H x D) | 5.1 x 0.9 x 2.9" (13.0 x 2.2 x 7.4 cm) | | Weight | 9.4 oz (267.0 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.6 x 5.0 x 1.2" |
