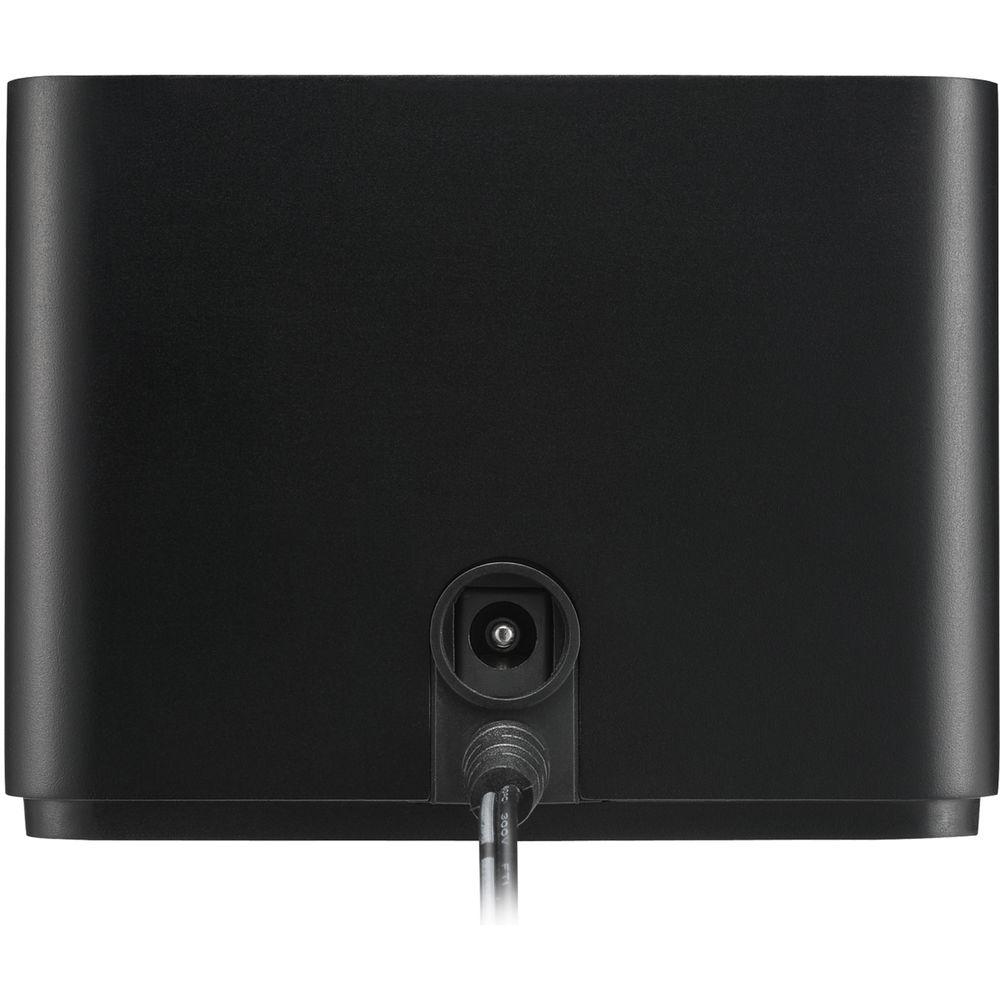

Product description The Back-UPS Connect CP12142LI from APC is an uninterruptible, external power supply (UPS) that is specifically designed for compatible routers, modems, and VoIP telephony systems in case of emergencies for prolonged periods of time during a power outage. This UPS consists of a 12 VDC / 19,500 mAh lithium-ion battery that is compact and lightweight. It maintains an extended runtime for up to 12 hours, can be recharged in up to 24 hours, and features an output power capacity of 38W / 140 VA with a nominal output voltage of 12 VDC. General Features - Battery Charging Indicator
- Lets you know when your battery is charging and when it is fully charged.
- Lithium-Ion Battery
- Lithium-ion batteries provide a longer service life when compared to a typical lead-acid battery and are small, light, and environmentally friendly.
- Compatibility
-
- ASUS RT-ACRH13
- AT&T 5031NV, 5168NV, NVG589, NVG599, 5268AC, and BGW210-700
- Linksys Max-Steam EA750
- NetGear Nighthawk R6700-100NAS and R7000-100PAS
- TP-Link TL-WR940N, Archer C1200, Archer C7, and Archer C9
- Wattage and Runtimes
- 5W / 24+ hours
10W / 10+ hours
13W / 9+ hours
18W / 7+ hours
20W / 6+ hours
30W / 4+ hours Protection - Battery Backup and Surge Protection

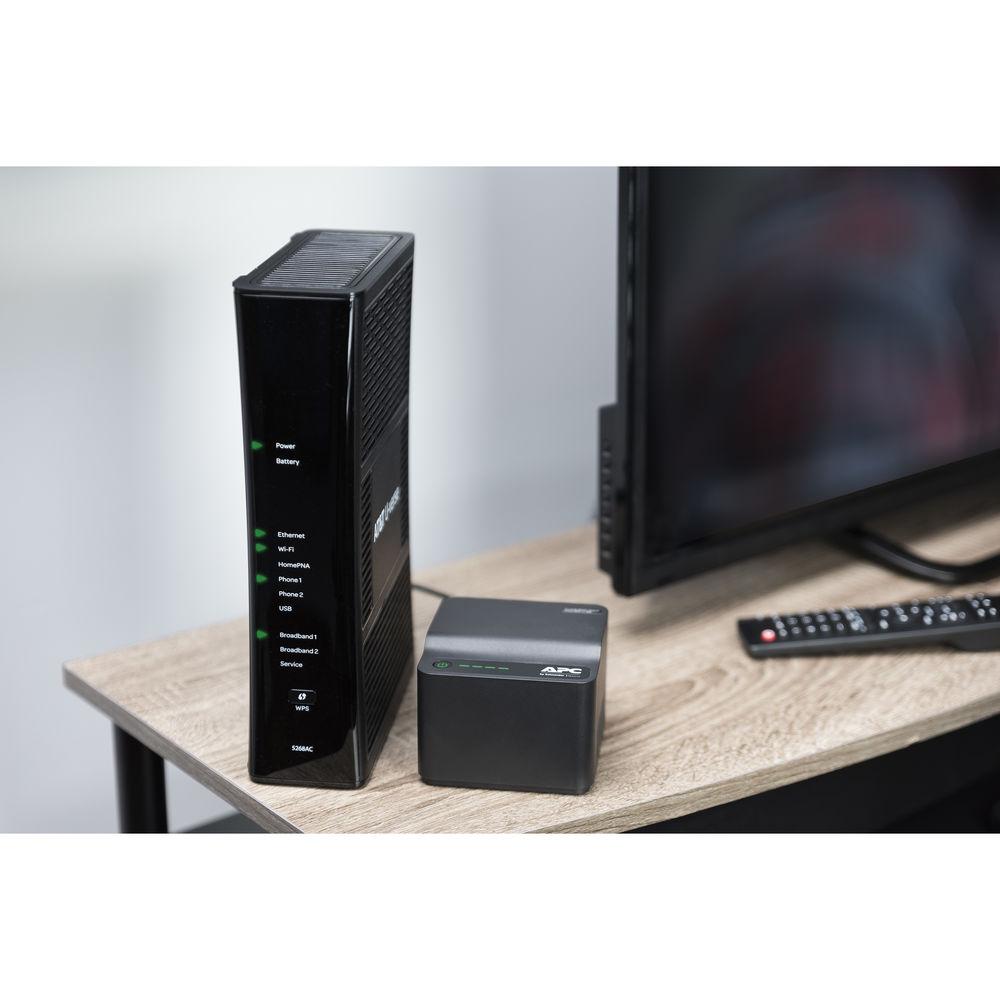

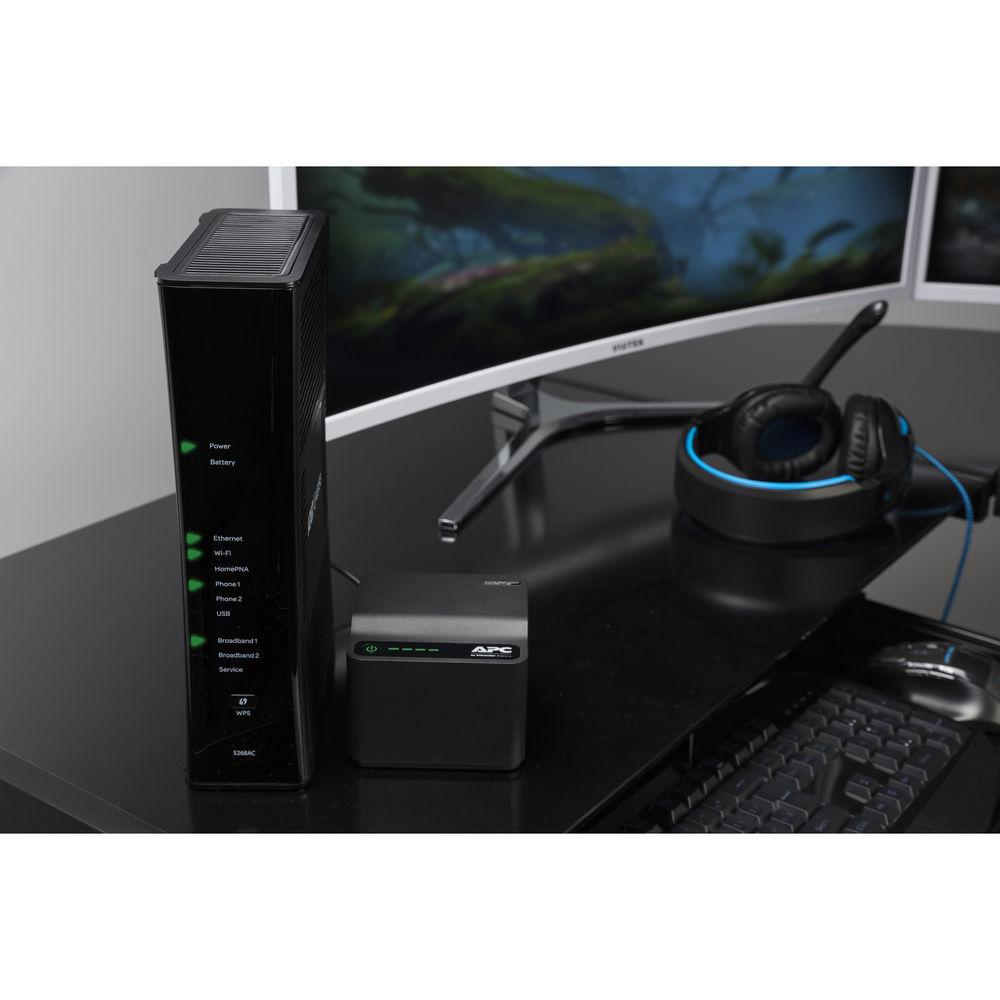

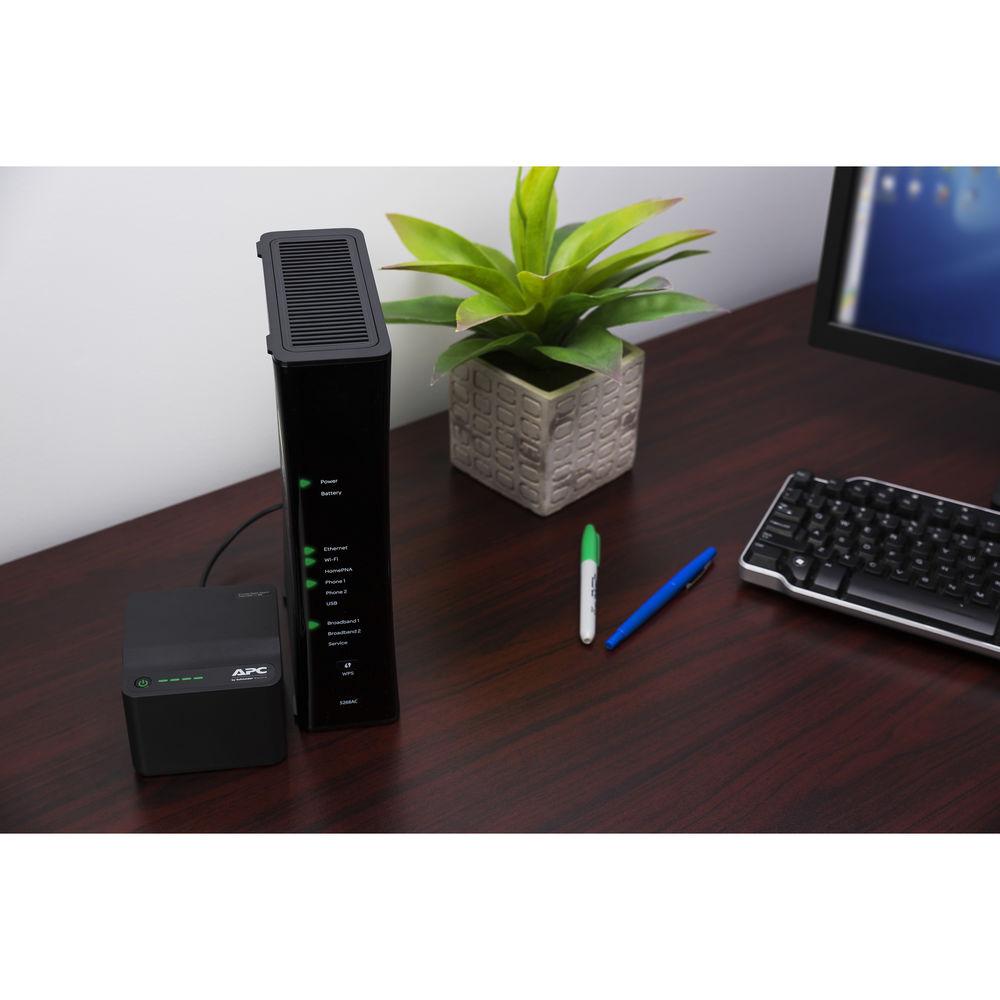

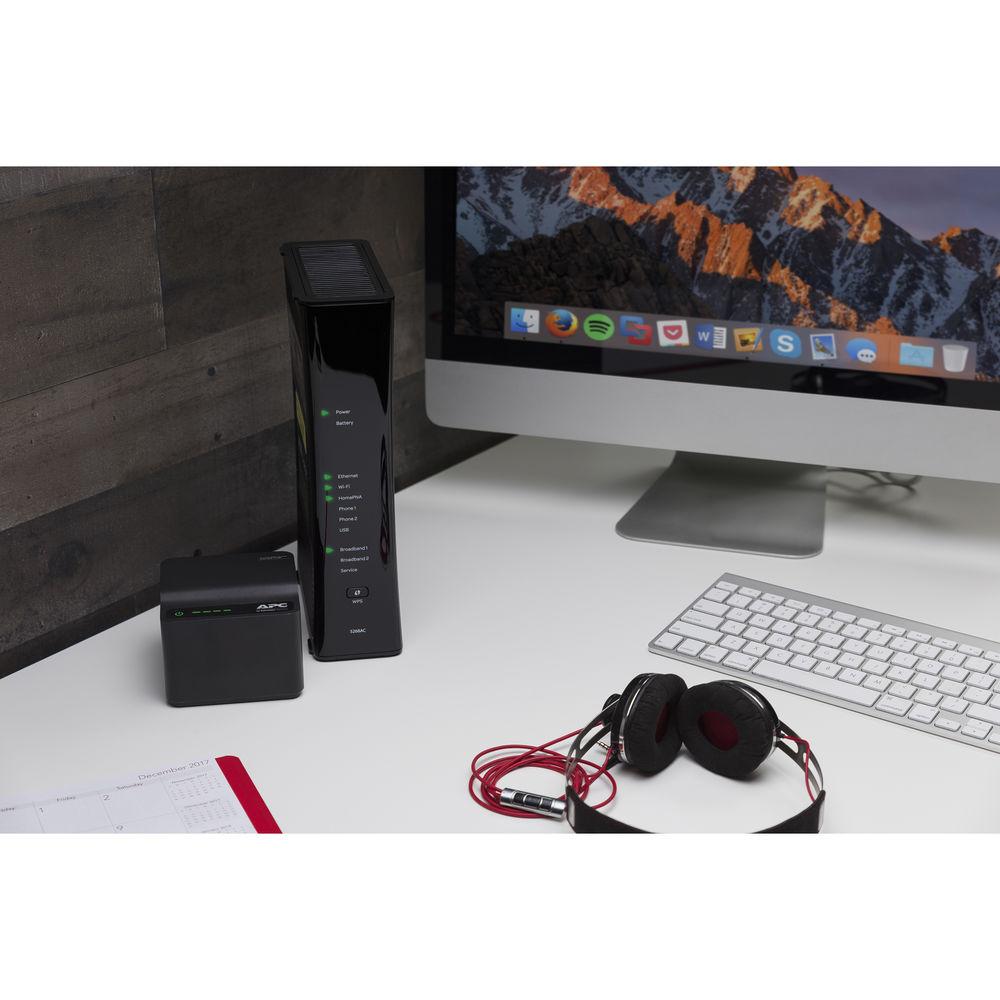

- Outlets provide abundant runtimes for network gateway equipment and other critical low-power devices, allowing for hours of network access during a power outage.
Serviceability - Simple Battery Replacement
- Increases UPS availability by allowing quick and easy battery replacement.
- Resettable Circuit Breaker
- Easy recovery from overloads with no need to replace a fuse.

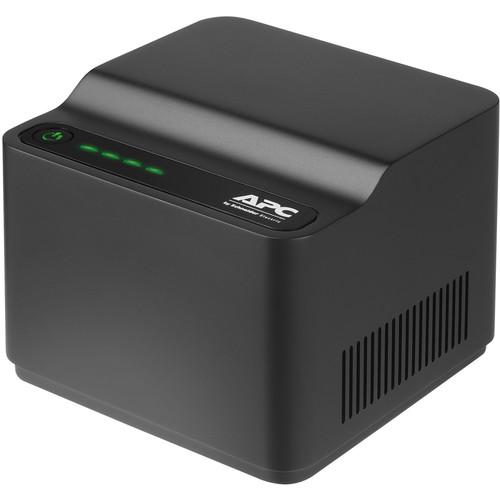

Manageability - LED Status Display
- Quickly understand unit and power status with visual indicators.
Eight Layers of Battery Management System (BMS) Power - Over Temperature Protection
- Protects your UPS and attached equipment from overheating by discontinuing the charge when the battery temperature surpasses recommended levels.
- Overloading Protection
- Prevents your UPS and attached equipment from overheating when the output load surpasses the permitted rating.
- Ultra-Low Dark Current
- Saves UPS battery life and extends its service life by automatically entering energy efficient mode.
- Short Circuit Protection
- Prevents battery from potential deformation by shutting down in the event of a shorted circuit.
- Over Current Protection
- Protects your UPS and attached equipment from overheating by discontinuing the charge when the battery temperature surpasses recommended levels.
- Over Voltage Protection
- Prevents voltage spikes from reaching electronics by regulating the power when a transient load occurs.
- Over Charging Protection
- Extends battery life by checking voltage and current, and automatically shutting down when the UPS is fully charged.
- Over Discharging Protection
- Extends battery life by checking voltage and current, and automatically shutting down when the UPS is fully discharged.
UPC: 731304338741 In the Box APC Back-UPS Connect CP12142LI Limited Lifetime $25,000 Equipment Protection Policy Limited 3-Year Repair or Replace Warranty More info from APC tadfxfbyfbzfzqvqsbwszctdyyvbf Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS Connect CP12142LI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC CP12142LI Specs | | | Output Power Capacity | 38 W / 140 VA | | Max Configurable Power | 38 W / 140 VA | | Nominal Output Voltage | 12 VDC | | Efficiency at Full Load | 85% | | Maximum Output Current | 3 A | | | | Nominal Input Voltage | 12 VDC | | Efficiency at Full Load | 85% | | | | Battery Type | Li-ion | | Typical Recharge Time | 24 hours | | | | Control Panel | LED Status display with On Line and On Battery | | Audible Alarm | Alarm when on battery: distinctive low battery alarm
Overload: continuous tone alarm | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Operating Relative Humidity | 0 - 95% (non-condensing) | | Maximum Operating Elevation | 0 to 10,000' / 0 to 3048 m | | Storage Temperature | 25 to 113°F / -4 to 45°C | | Storage Relative Humidity | 0 - 95% (non-condensing) | | Storage Elevation | 0 to 50,000' / 0 to 15,240 m | | | | Approvals | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, and FCC Part 15 Class B | | | | RoHS | Compliant | | REACH | Contains no SVHCs | | Battery Directive | Compliant | | | | Dimensions | 3.78 x 7.42 x 3.78" / 9.60 x 18.9 x 9.60 cm | | Weight | 1.65 lb / 0.75 kg | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 6.75 x 6.25 x 4.0" |
