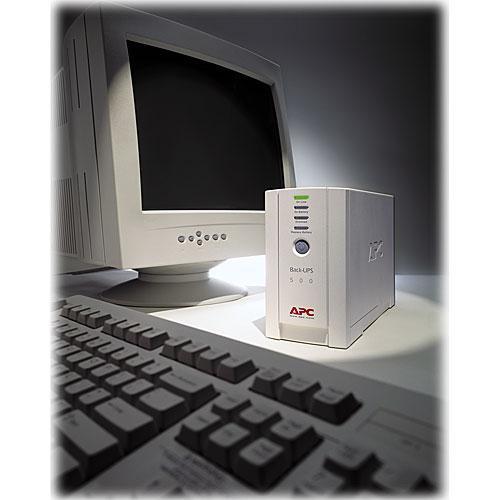

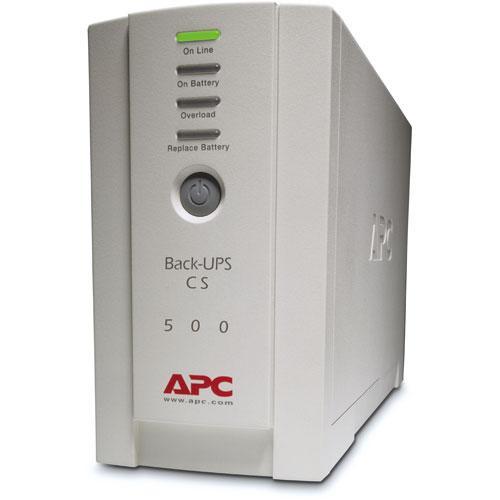

User Manual for APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, Beige Click to enlarge the picture
Contents of the user manual for the APC Back-UPS CS 500 6-Outlet Backup
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Back-UPS CS 500 6-Outlet Backup contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Back-UPS 500 6 Outlet Battery Backup and Surge Protection (120V) from APC provides professional power protection and battery backup for computer systems. Safe system shutdown and advanced power management capabilities keep systems and data safe via serial or USB connection, and built-in phone/fax/modem (DSL-compatible) connections protect systems from surges traveling on data lines.

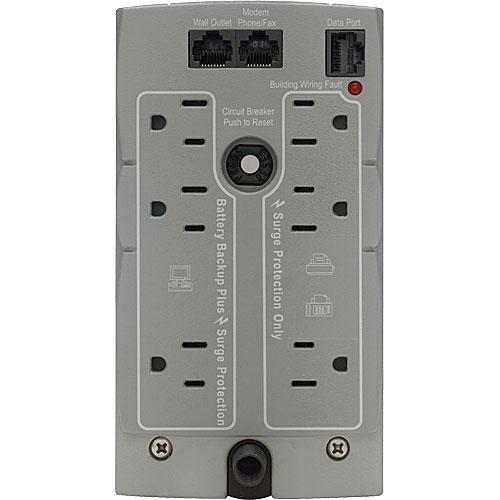

The UPS features six outlets, three of which provide battery backup, and another three which are surge-protected. Its battery provides 13.9 minutes of run time at half-load capacity. APC offers guaranteed protection from surges and spikes with a lifetime, $100,000 Equipment Protection Policy. - Battery Backup
- The user-replaceable battery provides 13.9 minutes of backup at half-load and 2.4 minutes of backup at full-load. This gives you enough time to safely shut down your computer in the event of a power outage.
- Data Line Protection
- The surge protector features an RJ-11 surge protection connection that allows you to protect modem connections from power surges. This helps to preserve the life of your modem and further protect your computer from surges.
- Spaced Outlets
- The UPS features two spaced outlets that are designed to accommodate devices with large "power brick" AC adapters. This lets you power and protect these devices without sacrificing another plug due to their large size.
- Audible Alarms
- The surge protector features an audible alarm that lets you know when there is a problem with your power. This helps to make you aware of a power outage or surge.
- USB and Serial Communication
- This UPS features USB and serial ports for computer communication. This communication allows your computer to automatically shut down safely in the event of a power outage.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- DED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Battery-Protected and Surge-Only Outlets
- Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
- Cold-Start / Hot Swap Batteries
- Cold-start capable provides temporary battery power when the utility power is out. Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Lifetime Data Recovery Warranty
- Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
- Battery Replacement Without Tools
- Allows quick, easy battery replacement.
- Lightning and Surge Protection
- Protection from surges, spikes and even lightning is guaranteed!
- Resettable Circuit Breaker
- Instead of a hard to find fuse, there is a push-button circuit breaker for easy recovery from an overload or short circuit.
UPC: 731304016304 In the Box APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, Beige (120v) Software CD-ROM Cord Management Straps USB Cable User Manual Limited 3-Year Warranty User Manual PDF 126.5kbusyruabaxfvbrquxfwdexfdsywcsdquzaz More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS CS 500 6-Outlet Backup and Surge Protector, Beige in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 500 Specs | | | Total Outlets | 6 | | Protected Outlets | 3 x NEMA 5-15R (Battery and Surge)
3 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ11, RJ45 | | Topology | Standby | | | | Surge Energy Rating | 480 Joules | | Maximum Wattage | 300 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 98 to 140 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Load Capacity | 500 VA | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 2.4 Minutes | | Half-Load Runtime | 13.9 Minutes | | Charging Time | 8 Hours | | Replacement Battery | RBC2 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 3.6 x 6.5 x 11.2" / 9.1 x 16.5 x 28.4 cm | | Weight | 13.8 lb / 6.3 kg | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 14.0 x 9.0 x 7.0" |
