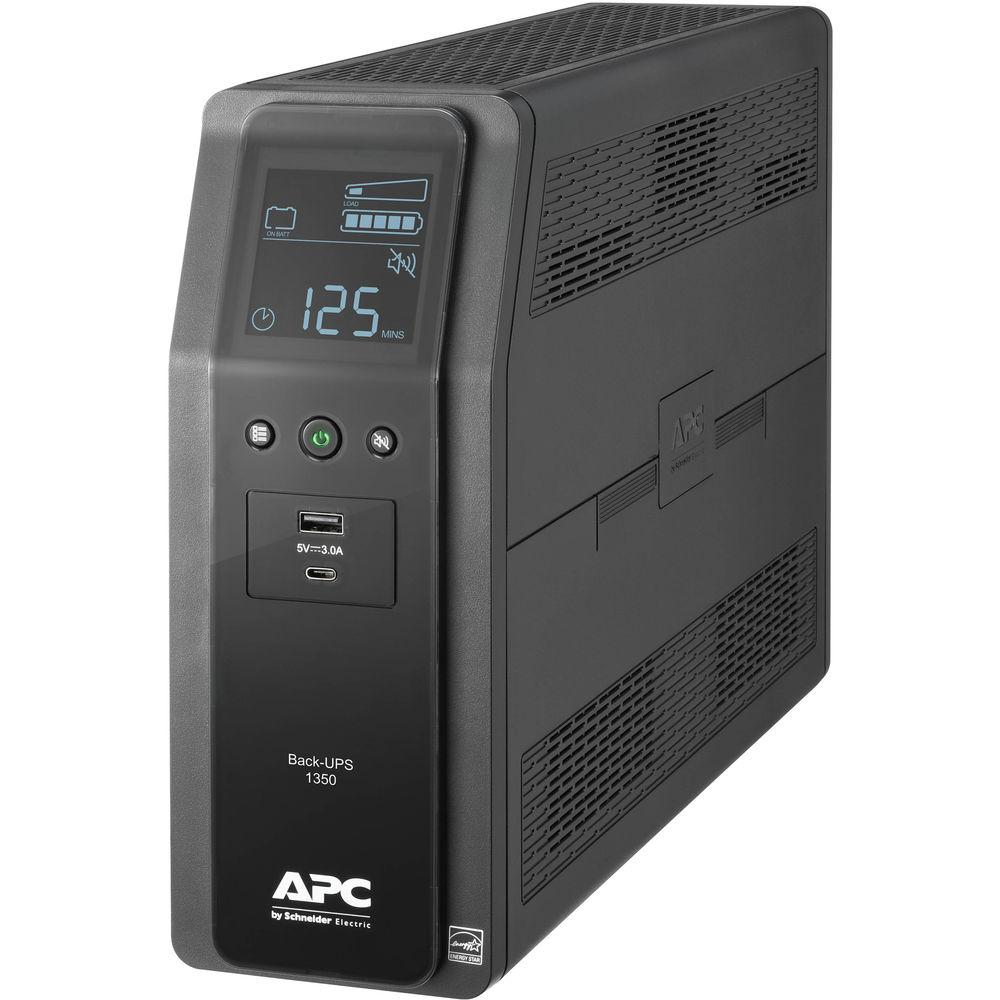

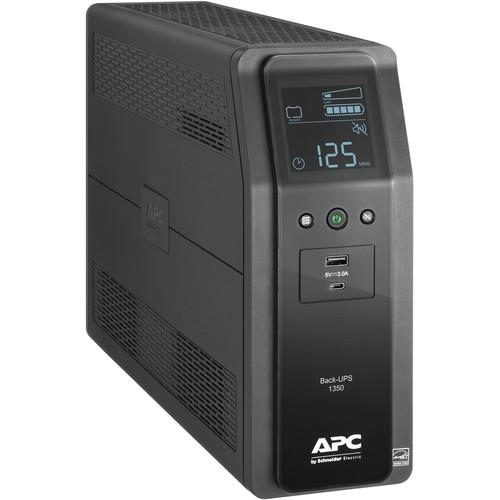

User Manual for APC Back-UPS Pro BN 1350VA Battery Backup & Surge Protector Click to enlarge the picture
Contents of the user manual for the APC Back-UPS Pro BN 1350VA Battery
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Back-UPS Pro BN 1350VA Battery contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

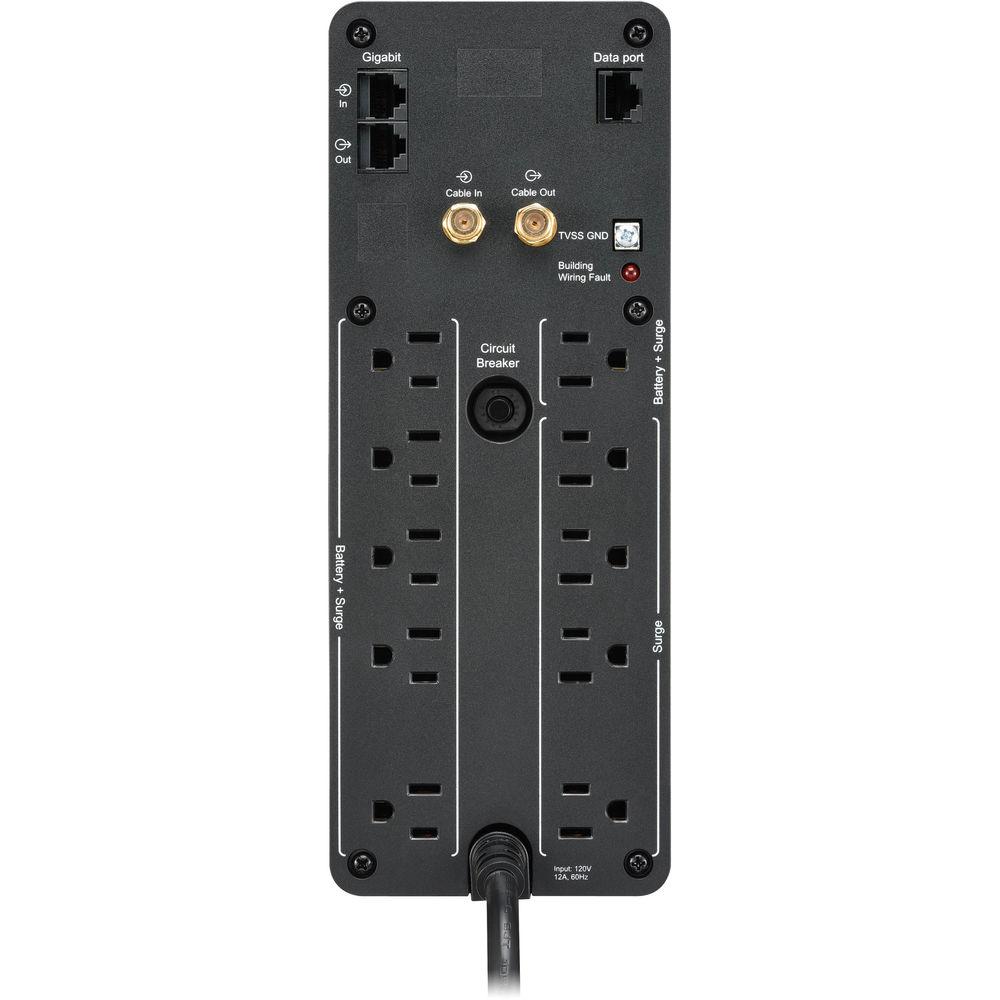

Product description Safely shut down computer systems and guard connected equipment from surges with the Back-UPS 1350VA Battery Backup & Surge Protector from APC. The UPS is armed with a total of ten NEMA 5-15R outlets, with six providing surge and backup power and four designed for surge protection only. In the event of a power outage, the UPS comes equipped with an internal battery that delivers up to 810W of power. The battery-powered outlets provide up to 2.7 minutes of use at full load and over one and a half hours at 50W. For electrical spikes, the UPS has a 1080J surge energy rating. Other notable connections include coax, USB, and Ethernet ports for safeguarding video and network signals. Included along with the backup UPS is a USB cable, a coaxial cable, a USB power adapter, and a downloadable PowerChute software program to monitor energy usage and prevent data corruption by automatically saving files and shutting down a computer system. - Manageability
-
- Warns when a battery is not available to provide backup power.
- Use your PC to access additional power protection and management features for your UPS via a USB Port.

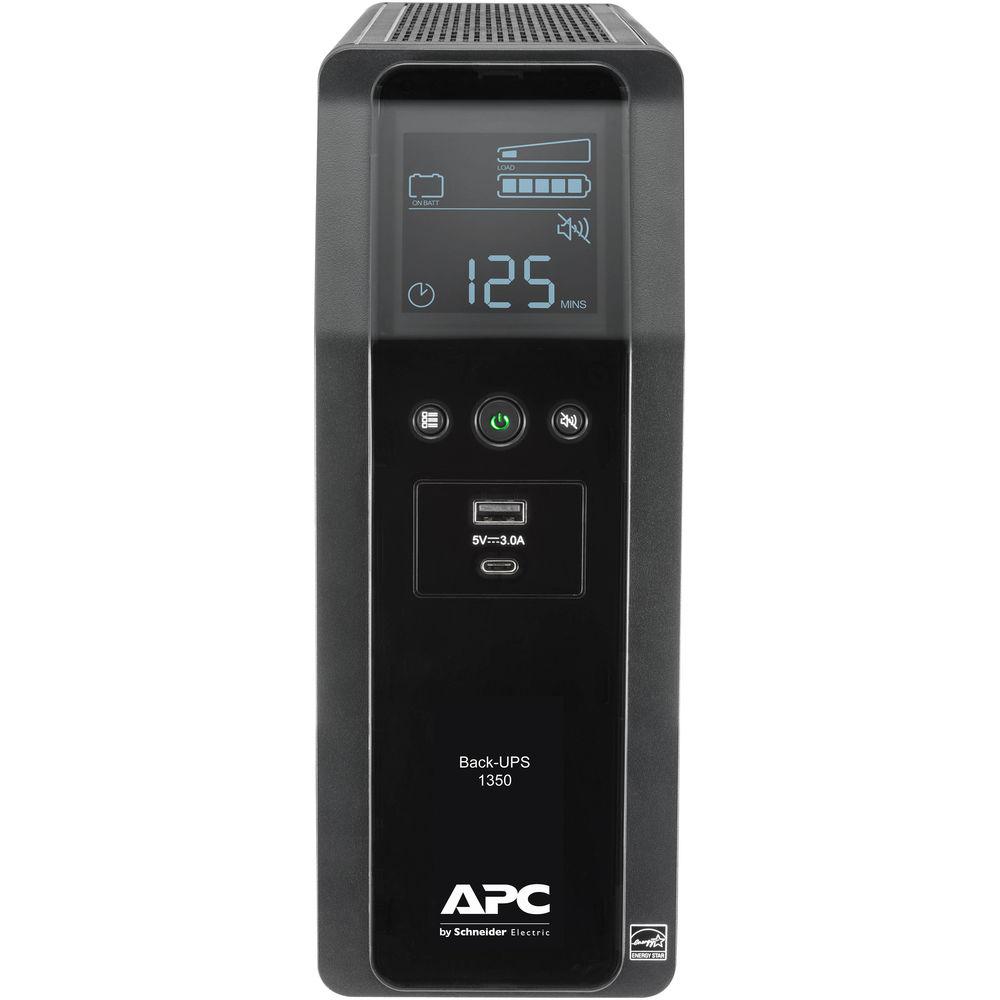

- Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Provides notification of changing utility power and UPS power conditions.
- Safety
-
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Availability
-
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- Provides temporary battery power when the utility power is out.
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Protect equipment with input transformer blocks without blocking access to other receptacles.
- Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Energy saving feature automatically powers off peripherals when the master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on.
- Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Serviceability
-
- Increases UPS availability by allowing quick, easy battery replacement.
- Easy recovery from overloads; no need to replace a fuse.
- Protection
-
- Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
- Provides protection of connected equipment from power surges on the data lines.
- Back up and protect your hardware and data during power outages, surges and spikes.
- Additional Features
-
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy saving feature automatically powers off peripherals when the master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on.
- Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment.
- Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
UPC: 731304335344 In the Box APC Back-UPS Pro BN 1350VA Battery Backup & Surge Protector Coaxial Cable USB Cable Limited 3-Year Warranty More info from APC ufqavrrrfauqxccw Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Back-UPS Pro BN 1350VA Battery Backup & Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Back-UPS Pro BN 1350VA Specs | Output | Output Power Capacity
810 Watts / 1.35 kVA
Max Configurable Power
810 Watts / 1.35 kVA
Nominal Output Voltage
120 V
Output Frequency (Sync to Mains)
60 Hz +/- 3 Hz
Topology
Line Interactive
Waveform Type
Stepped approximation to a sinewave
Output Connections
6 x NEMA 5-15R (battery backup)
4 x NEMA 5-15R (selector_surgetitle)
Transfer Time
8 ms typical
10 ms maximum | | Input | Nominal Input Voltage
120 V
Input Frequency
60 Hz +/- 3 Hz
Input Connections
NEMA 5-15P
Cord Length
6' / 1.83 m
Input Voltage Range for Main Operations
88 - 139 V
Maximum Input Current
12.0 A | | Batteries & Runtime | Battery Type
Maintenance-free sealed lead-acid battery with suspended electrolyte: leakproof
Included Battery Modules
1
Typical Recharge Time
16 hour(s)
Expected Battery Life (years)
3 - 5 | | Communications & Management | Interface Port(s)
USB
Control Panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm | | Surge Protection and Filtering | Surge Energy Rating
1080 Joules
Data Line Protection
RJ45 10/100/1000 Base-T Ethernet protection, coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
Filtering
Full time multi-pole noise filtering, 5% of IEEE surge let-through, zero clamping response time, instantaneous | | Environmental | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Relative Humidity
0 to 95% non-condensing
Operating Elevation
0 to 10,000' / 0 to 3000 m
Storage Temperature
5 to 104°F / -15 to 40°C
Storage Relative Humidity
0 - 95% non-condensing
Storage Elevation
0 to 10,000' / 0 to 3000 m
Audible Noise at 1 m from Surface of Unit
45.0 dBA | | Conformance | Approvals
FCC Part 15 Class B, NOM, TUV C-US certified
Equipment Protection Policy
Lifetime: $250,000 | | Dimensions | 10.24 x 3.94 x 14.49" / 260 x 100 x 368 mm | | Weight | 22.93 lb / 10.4 kg | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 19.5 x 14.5 x 9.5" |
