User Manual for APC Battery Back-UPS Pro BX1350M Click to enlarge the picture
Contents of the user manual for the APC Battery Back-UPS Pro BX1350M
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Battery Back-UPS Pro BX1350M contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description Designed for electronics in your home or office, such as computers and related equipment, network devices (modem/router), POS devices, CCTV circuits, televisions, video game consoles, and more, the Battery Back-UPS Pro BX1350M from APC helps protect against surges, spikes, lightning, and outages. In the case of a power outage, it can provide up to 2.5 minutes of runtime at max load, 10.1 minutes at half load, and 287 minutes at 10W. It also provides an output capacity of 1350 VA / 810W, ten total NEMA5-15R outlets (five battery backup & surge and five surge-only), an input voltage of 120 VAC at 60 Hz ± 3 Hz using its 6' cord with a NEMA 5-15 plug, a surge energy rating of 789 joules, and 1Gb of dataline protection. Its sealed, lead-acid, battery is maintenance-free and can be replaced using an APCRBC123 replacement battery. The BX1350M outputs 98 to 139 VAC at 60 Hz ± 1 Hz (on utility) and 115 VAC ± 8% at 60 Hz ± 1 Hz (on battery).
For areas for inconsistent power grids, Automatic Voltage Regulation (AVR) helps provide stability against voltage fluctuations, overvoltages, and brownouts. This UPS has an integrated LCD display that shows information on the utility and system status, and PowerChute Personal Edition software can help track power quality, configure alarms, and shut down your computer during an outage.
When compared to the previous generation of APC's Back-UPS systems, this model features a more compact design with a smaller footprint, surge protection improvements, and improved 1Gb dataline protection. Also featured is a limited lifetime data-recovery warranty and a limited 3-year warranty for the APC unit. General Features - Product Improvements
-
- Smaller Footprint
- Improved Dataline Protection (1Gb)
- Surge Protection Improvements

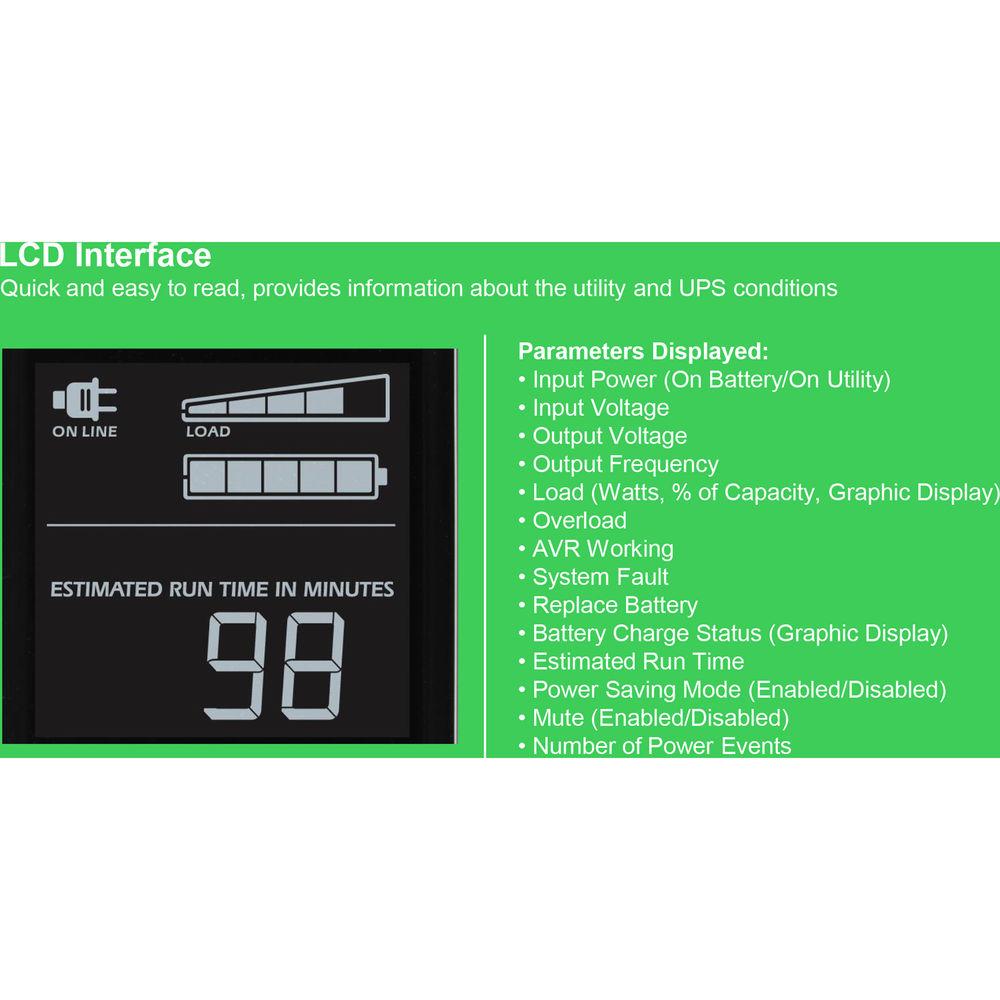

- LCD (Liquid Crystal Display)
- Provides information about the utility and UPS conditions:
- Input Power (On Battery/On Utility)
- Input Voltage
- Output Voltage
- Output Frequency
- Load (Watts, % of Capacity, Graphic Display)
- Overload
- AVR Working
- System Fault
- Replace Battery
- Battery Charge Status (Graphic Display)
- Estimated Runtime
- Power Saving Mode (Enabled/Disabled)
- Mute (Enabled/Disabled) Number of Power Events
- 1Gb Network Dataline Protection
- Hot-Swappable Batteries: Help ensure clean and uninterrupted power to protect equipment while batteries are being replaced.
User-Replaceable Batteries: Increase availability by allowing a trained user to perform upgrades and replacements of the batteries, reducing the time needed for repairs.

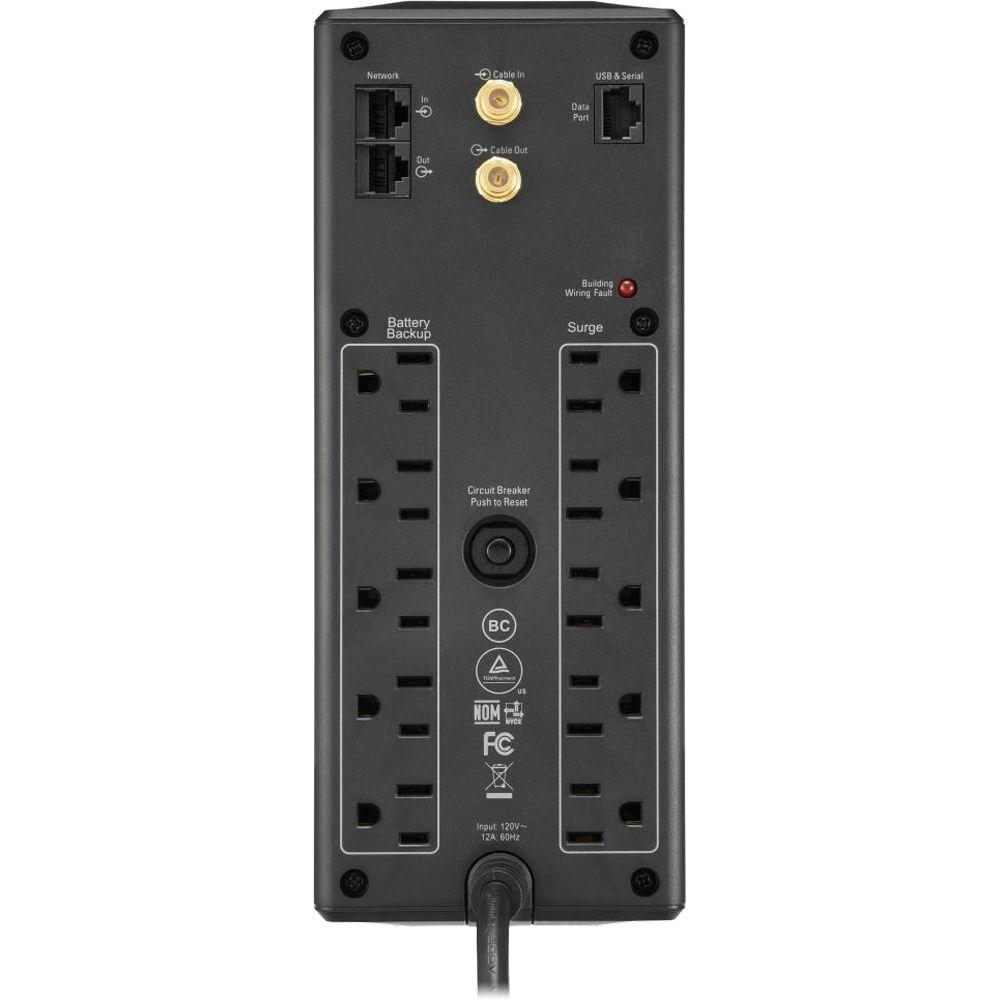

Battery Backup & Surge-Protected Outlets: Keep devices running when the power goes out or fluctuates beyond safe levels.
Surge-Only Outlets: Protect electronics without reducing battery capacity.
Push-Button Circuit Breaker: Allow quick recovery from overloads and eliminate the need for fuse replacement.
APFC Power Cord Compatibility: Compatible with personal computers that have an Active-PFC power supply.

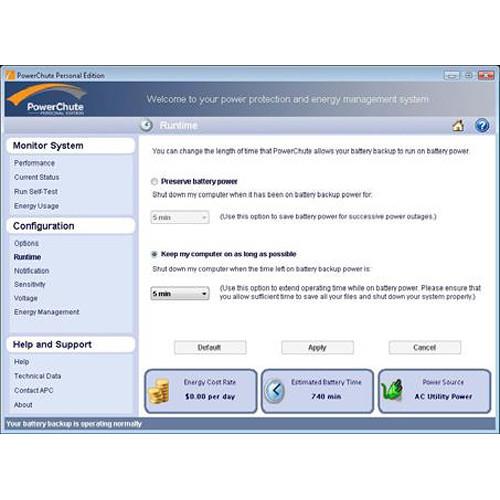

USB Communication Port: For the management of shutdowns via PowerChute Personal Edition. - PowerChute Personal Edition
- PowerChute software provides additional power protection and management features for Back-UPS Pro users, safeguarding files and programs.
- Readout of the current power conditions
- Displays daily energy consumption and cost of powering your equipment
- Saves money by allowing you to choose an energy management plan that fits your needs
- Prevents data corruption by saving files and shutting down your system during extended power outages or low battery conditions
- Monitors the system and logs utility power problems and battery conditions
- Allows you to configure Back-UPS options like voltage transfer settings, silence alarms during night hours, shutdown parameters, energy management features, and more
- User-friendly installation takes the guesswork out of configuration for first-time users with a help feature (USB and serial interface)
- Automatic Voltage Regulation (AVR)
- Corrects voltage fluctuations, saving your battery power for blackouts.
- Automatic Diagnostic Testing
- Helps ensure your unit is ready when needed.
- ENERGY STAR
- This label helps ensure that products are independently certified as energy efficient, which save money year after year.
UPC: 731304331773 In the Box APC Battery Back-UPS Pro BX1350M $250,000 Equipment Protection Policy Limited Lifetime Data Recovery Warranty Limited 3-Year Warranty More from Manufacturer sfvsbutbuwyrauyfxyrdvu More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Battery Back-UPS Pro BX1350M in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC BX1350M Specs | | | Total Outlets | 10 | | Protected Outlets | 5 x NEMA 5-15R (Battery and Surge)
5 x NEMA 5-15R (Surge Only) | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ45 | | | | Surge Energy Rating | 789 Joules | | Maximum Wattage | 810 W | | Nominal Input Voltage | 120 VAC | | Nominal Output Voltage | 115 VAC | | Output Voltage Range | 98 to 139 VAC | | Load Capacity | 1350 VA | | Waveform | Simulated Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 2.5 Minutes | | Half-Load Runtime | 10.1 Minutes | | Replacement Battery | APCRBC123 | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 9.8 x 3.9 x 15.0" / 250.0 x 100.0 x 382.0 mm | | Weight | 22.5 lb / 10.2 kg | | | | Package Weight | 27.0 lb | | Box Dimensions (LxWxH) | 19.2 x 13.5 x 9.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
