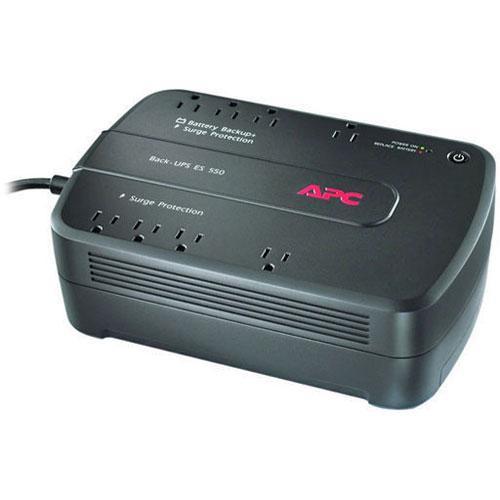

User Manual for APC BE550G Back-UPS 550 8 Outlet Surge Protector and Battery Backup Click to enlarge the picture
Contents of the user manual for the APC BE550G Back-UPS 550 8 Outlet
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC BE550G Back-UPS 550 8 Outlet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description - Now You See Me - APC Back-UPS
The BE550G Back-UPS 550 8 Outlet Surge Protector and Battery Backup from APC provides surge protection and battery backup for home computer systems. It yields an average output power capacity of 550VA at 330W and even delivers battery-powered AC from its outlets. APC offers guaranteed protection from surges and spikes with their lifetime $75,000 Equipment Protection Policy. These features make the Back-UPS ES an excellent choice to provide power and battery backup for your home PC. - Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- LED Status Indicators
- Quickly understand unit and power status with visual indicators.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Battery-Protected and Surge-Only Outlets
- Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Dataline Surge Protection
- Provides protection of connected equipment from power surges on the data lines.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Audible Alarms
- Provides notification of changing utility power and UPS conditions
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Transformer-Block Spaced Outlets
- Protect equipment with input transformer blocks without blocking access to other receptacles.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Lifetime Data Recovery Warranty
- Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
- Battery Replacement Without Tools
- Allows quick, easy battery replacement.
UPC: 731304258940 In the Box APC BE550G Back-UPS 550 8 Outlet Surge Protector and Battery Backup (120V) USB Cable Limited 3-Year Warranty User Manual PDF 84.2kb More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC BE550G Back-UPS 550 8 Outlet Surge Protector and Battery Backup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC 550 Specs | Output | Output Power Capacity: 330 W / 550 VA
Max Configurable Power 330 W / 550 VA
Nominal Output Voltage: 120 V
Output Frequency: (sync to mains) 50/60 Hz +/- 3 Hz
Topology: Standby
Waveform Type: Stepped approximation to a sinewave
Output Connections:
4 x NEMA 5-15R (Battery Backup)
4 x NEMA 5-15R (Surge Protection) | | Input | Nominal Input Voltage: 120V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA 5-15P
Cord Length: 5 feet (1.52 meters)
Input voltage range for main operations: 88 - 139V | | Surge Energy Rating | Surge energy rating: 354 Joules
Filtering: Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector),Network line - 10/100 Base-T Ethernet (RJ-45 connector),Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector) | | Battery | Type: Maintenance-free sealed lead-acid battery with leakproof suspended electrolyte
Replacement Battery Cartridge: APCRBC110 | | Typical Recharge Time | 24 hours | | Surge Energy Rating | 340 Joules | | Filtering | Full time multi-pole noise filtering: 5%
IEEE surge let-through: Zero clamping
Response Time: Meets UL 1449 | | Data Line Protection | Analog phone line for phone/fax/modem/DSL (RJ-45 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector), Coaxial cable for ATV/SATV/modem/Audio-Video (coax connector) | | Audible Alarm | Alarm when on battery, distinctive low-battery alarm, configurable delays | | Conformance | Regulatory Approvals: FCC Part 15 Class B, FCC Part 68, NOM, UL 1778
Equipment protection policy: Lifetime: $75000
Environmental Compliance: RoHS | | Environmental Requirements | Operating
Temperature: 32-104°F / 0-40°C
Humidity: 5-95%
Altitude: 0-10,000' / 0-3000 m
Storage
Temperature: 5-113°F / -15-45°C
Humidity: 5-95%
Altitude: 0-50,000' / 0-15,000 m
Online Thermal Dissipation: 47.00 BTU/h | | Dimensions (WxHxD) | 3.5 x 7.1 x 11.9" / 88 x 180 x 302 mm | | Weight | 12.1 lb / 5.5 kg | | | | Package Weight | 13.25 lb | | Box Dimensions (LxWxH) | 15.118 x 9.134 x 5.118" |
