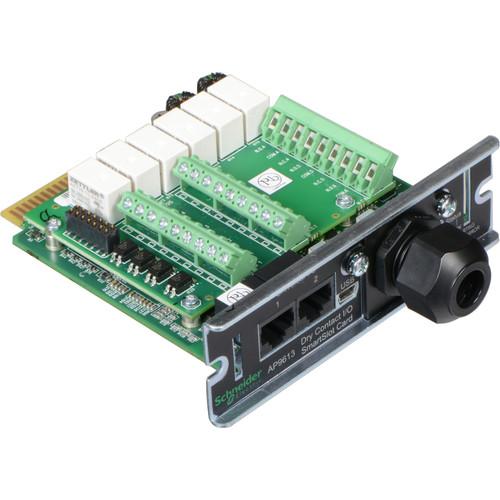

User Manual for APC Dry Contact I O SmartSlot Card Click to enlarge the picture
Contents of the user manual for the APC Dry Contact I O SmartSlot
- Product category: UPS Accessories APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Accessories
|
User manual for the APC Dry Contact I O SmartSlot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The black Dry Contact I/O SmartSlot Card from APC is a printed circuit board assembly that installs in the SmartSlot of UPS host device. It works with most APC UPS devices that have an output rated less than or equal to 160 kVA. The card provides interface expansion and other options for increased UPS monitoring and control functionality. - 6 Configurable Output Relays
- In response to the UPS or input contacts changing states, and optionally includes a customizable delay, trigger actions on external devices.
- Optional Dry Contact I/O Accessory
- Each dry contact I/O accessory increases the number of input contacts by 2 and output relays by 1.
- Expandable Input and Output Ports
- It supports the temperature sensor, temperature and humidity sensor and dry contact I/O accessory.
- 4 Configurable Input Contacts
- Monitor external devices to trigger actions such as notifications or a change in output relay state with custom delay.
- Compatible With SmartSlot Enabled UPSs
- It is compatible with all SmartSlot UPSs.
- Input Output Interaction
- Dry contact I/O SmartSlot card enables interaction between device events (inputs) and control actions (outputs).
- Configuration Utility
- Configure all actions with the easy to use configuration utility available on the card.
UPC: 731304293842 In the Box APC Dry Contact I/O SmartSlot Card (Black) USB Cable 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Dry Contact I O SmartSlot Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC AP9613 Specs | Electrical | Nominal Switching Capacity: 3A @ 30VAC or 30 VDC
Rated Voltage: 24VDC
Rated Current: 200 mA | | Environmental | Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: 5 to 149°F (-15 to 65°C)
Operating Relative Humidity: 0 to 95%
Storage Relative Humidity: 0 to 95%
Operating Elevation: 0 to 9,842.52' (0 to 3000 m)
Storage Elevation: 0 to 49,212.6' (0 to 15000 m) | | Regulatory Approvals | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, FCC Part 15 Class A | | Environmental Compliance | RoHS, China RoHS | | Dimensions (WxHxD) | 4.75 x 1.50 x 4.49ʺ (121 x 38 x 114 mm) | | Weight | 0.46 lb (0.21 kg) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.5 x 6.5 x 2.0" |
