User Manual for APC Essential SurgeArrest 6 Outlet Surge Protector Click to enlarge the picture
Contents of the user manual for the APC Essential SurgeArrest 6 Outlet Surge
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
 |
User manual for the APC Essential SurgeArrest 6 Outlet Surge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

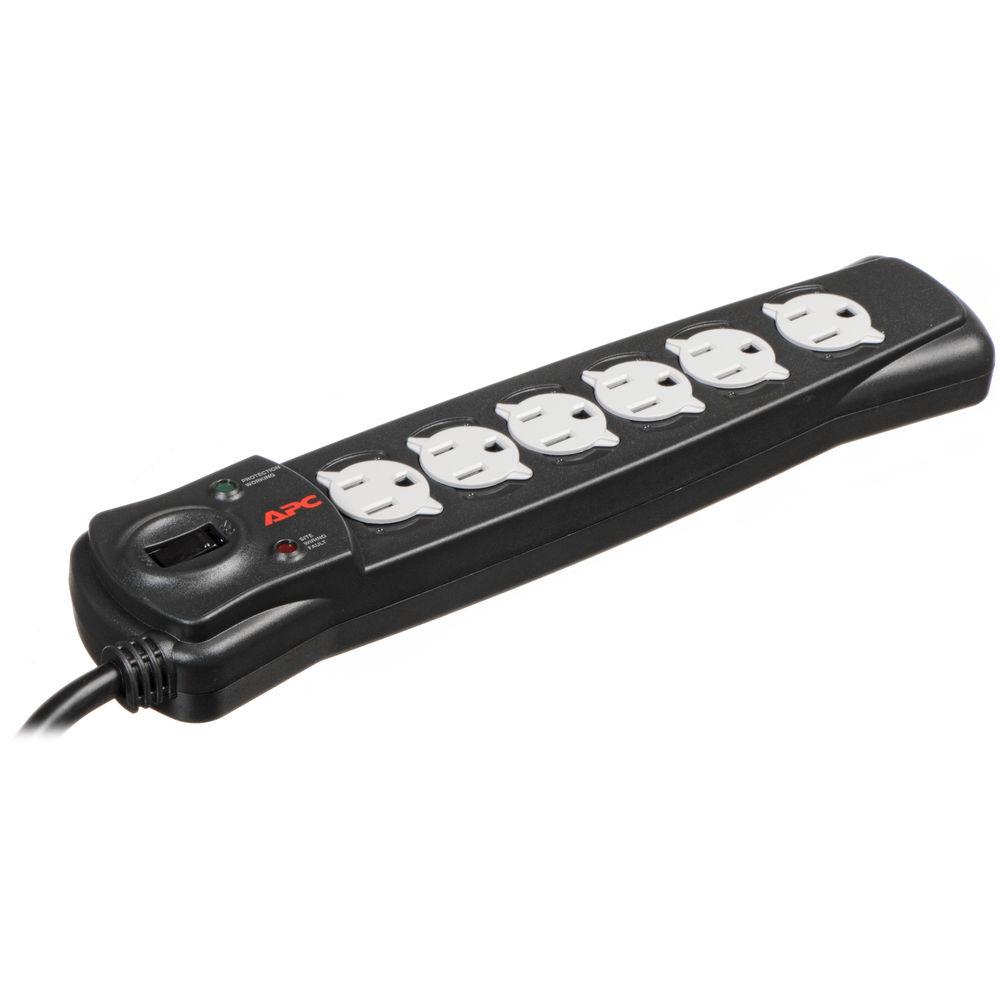

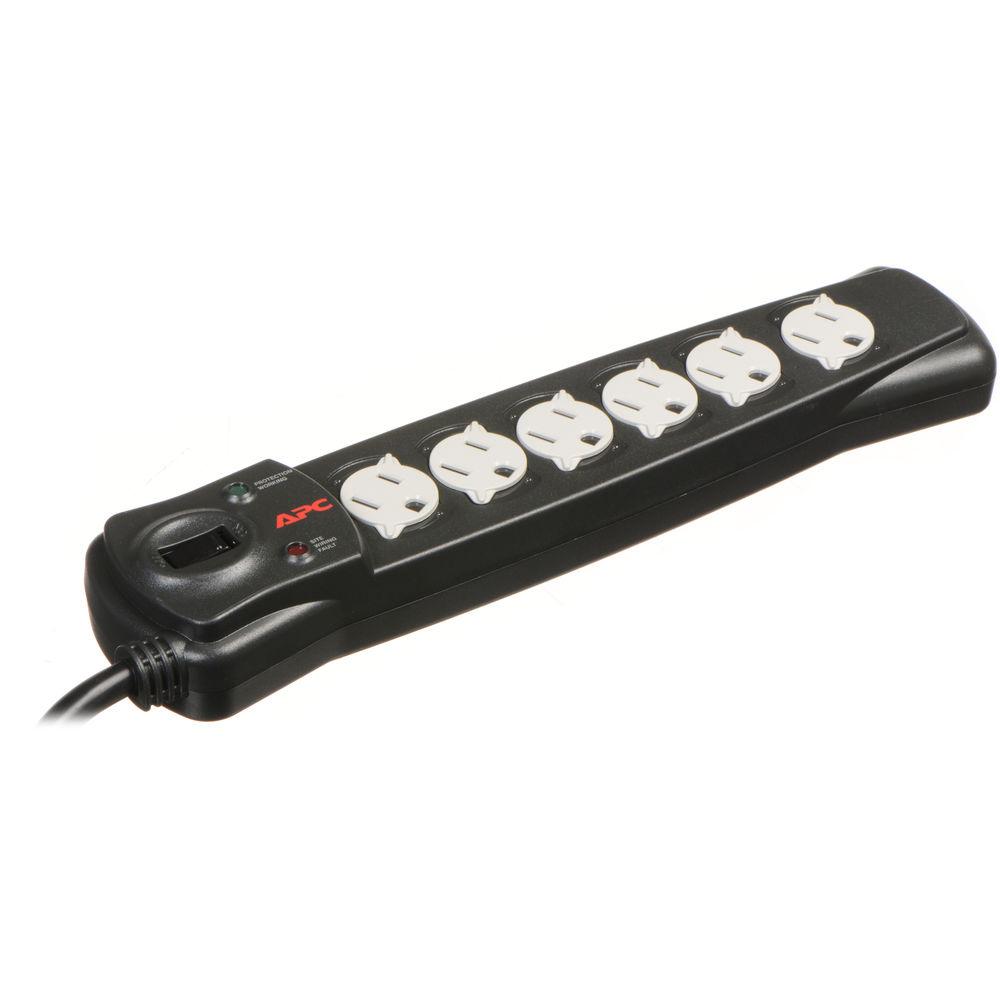

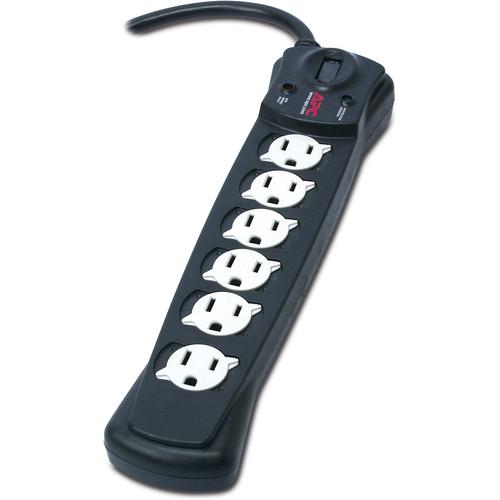

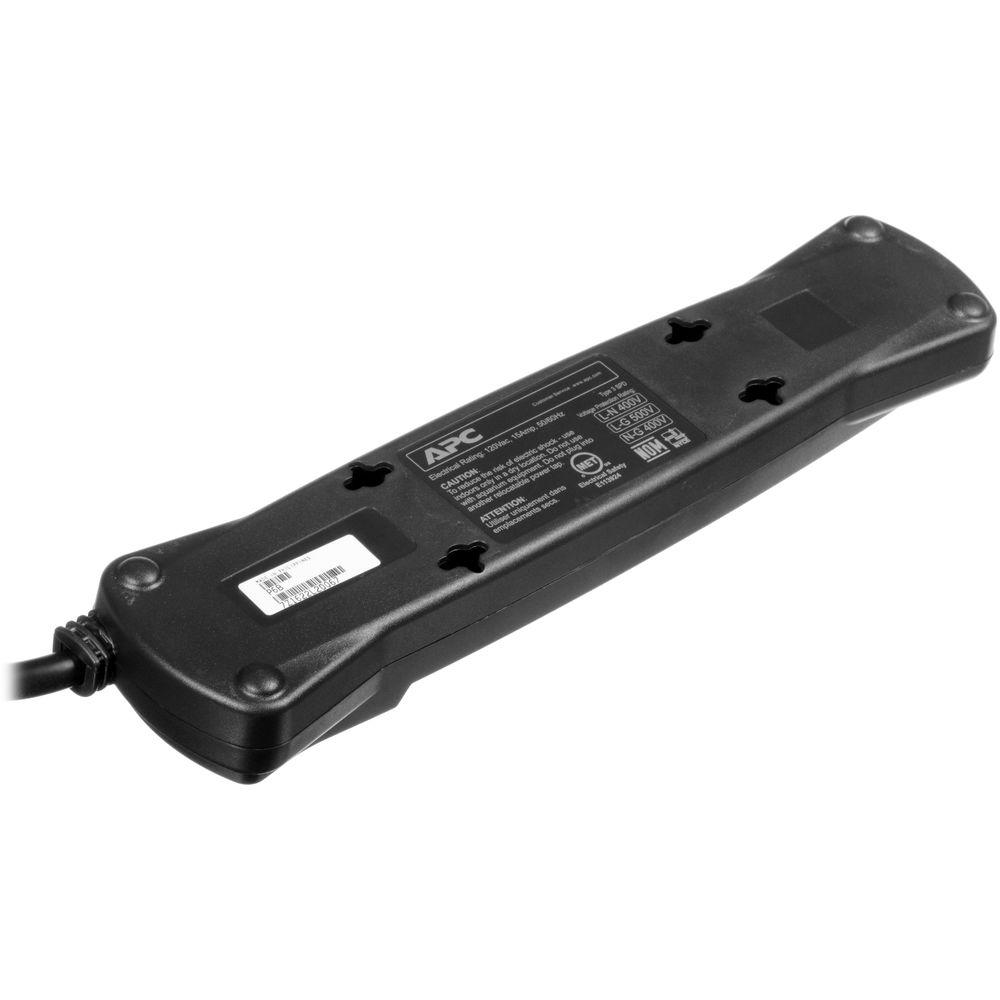

Product description The Essential SurgeArrest 6 Outlet Surge Protector from APC features a 120V nominal input voltage along with a 50/60 Hz input frequency. The six NEMA 5-15P input connectors offer both lightning and surge protection, along with catastrophic event protection and a fail safe mode. Additionally, this surge protector comes equipped with an LED indicator to alert of faulty wiring conditions within the wall circuit. - Lightning and Surge Protection
- Lightning and surge protection helps to prevent damage to your equipment from electric power surges and spikes.
- IEEE Let-Through Ratings and Regulatory Agency Compliance
- Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series surge protector offers enhanced performance with a let-through rating of less than 330 V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
- Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
- Catastrophic Event Protection
- SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment.
- Fail Safe Mode
- Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe disconnects equipment from the power supply when the circuit of the SurgeArrest is compromised, ensuring that no damaging surges reach your equipment.
- Protection Working Indicator
- SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
- Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit.
UPC: 731304211020 In the Box APC Essential SurgeArrest 6 Outlet Surge Protector Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Essential SurgeArrest 6 Outlet Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC P6B Specs | | | Wall Plug Type | NEMA 5-15P | | Outlets | 6 | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz | | Surge Energy Rating | 840 Joules | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | | | Cable Length | 6' / 1.8 m | | Cable Management | None | | Dimensions (L x W x H) | 11.5 x 2.2 x 1.5" / 292.0 x 57.0 x 38.0 mm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 13.0 x 5.0 x 1.5" |
