User Manual for APC Essential SurgeArrest 6-Outlet Surge Protector with USB Charging Click to enlarge the picture
Contents of the user manual for the APC Essential SurgeArrest 6-Outlet Surge Protector
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
|
User manual for the APC Essential SurgeArrest 6-Outlet Surge Protector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

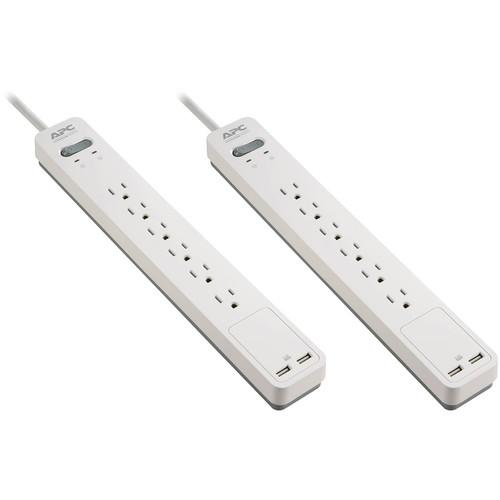

Product description Provide basic protection against power surges and spikes for computers and electronics using the Essential SurgeArrest 6-Outlet Surge Protectors with USB Charging from APC. This package bundles two units together, each of which has six NEMA 5-15R outlets, one NEMA 5-15P input connection, an input voltage of 120V @ 50/60 Hz, a 15A input/line current, and a surge energy rating of 1080 joules. There are also two integrated 2.4A USB Type-A charging ports per unit for devices such as smartphones and tablets, and one of those ports is equipped with Smart Charging technology to help maximize charging speeds according to the type of device detected. This SurgeArrest model utilizes an integrated 4' power cord and turns on and off using a recessed power switch. Protection is provided by a limited lifetime warranty, and connected equipment that is damaged while the SurgeArrest is active will be covered up to $50,000. General Features - Resettable Circuit Breaker
- A resettable circuit breaker provides user-friendly recovery from overloads, with no need to replace a fuse.
- Smart Charging Port
- A 2.4A USB port integrates Smart Charging technology to help maximize charging speeds according to the type of device detected.
- USB Charging Ports
- Simultaneously charge mobile devices, including smartphones and tablets.
Safety - Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Protection Working Indicator
- SurgeArrest will warn you if its circuitry has been damaged by a heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
- Fail Safe Mode
- Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. With APC's SurgeArrest fail safe, once the circuit of an APC SurgeArrest has been compromised, the unit disconnects equipment from the power supply, helping to ensure that no damaging surges reach your equipment.
- Catastrophic Event Protection
- SurgeArrest components such as MOVs and thermal fuse help ensure an instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spikes or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
Protection - Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, helping to ensure better performance of protected equipment.
- IEEE Let-Through Ratings and Regulatory Agency Compliance
- APC surge protectors undergo stringent testing by the IEEE, and have been awarded "let-through ratings," which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers performance with a let-through rating of less than 330 to 500V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
- Lightning and Surge Protection
- This helps prevent damage to your equipment from electric power surges and spikes.
UPC: 731304336624 In the Box APC Essential SurgeArrest 6-Outlet Surge Protector with USB Charging (2-Pack, 120V, White) $50,000 Lifetime Equipment Protection Policy Limited Lifetime Warranty More from Manufacturer ccsfryfzzfvysrrvfuztetvxz More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Essential SurgeArrest 6-Outlet Surge Protector with USB Charging in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC Essential SurgeArrest Specs | | | Wall Plug Type | NEMA 5-15P (Straight) | | Outlets | 6 x NEMA 5-15R | | USB Ports | 2 x USB Type-A | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz | | Rated Current | 15 A | | Circuit Breaker | Yes | | Surge Energy Rating | 1080 Joules | | USB Output | 5 V, 2.4 A | | | | Certifications | FCC, UL, as per Manufacturer | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | | | Cable Length | 4' / 1.22 m | | Cable Management | None | | Dimensions (L x W x H) | 13.8 x 2.1 x 1.2" / 35.1 x 5.3 x 3.0 cm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 15.0 x 9.0 x 1.5" |
