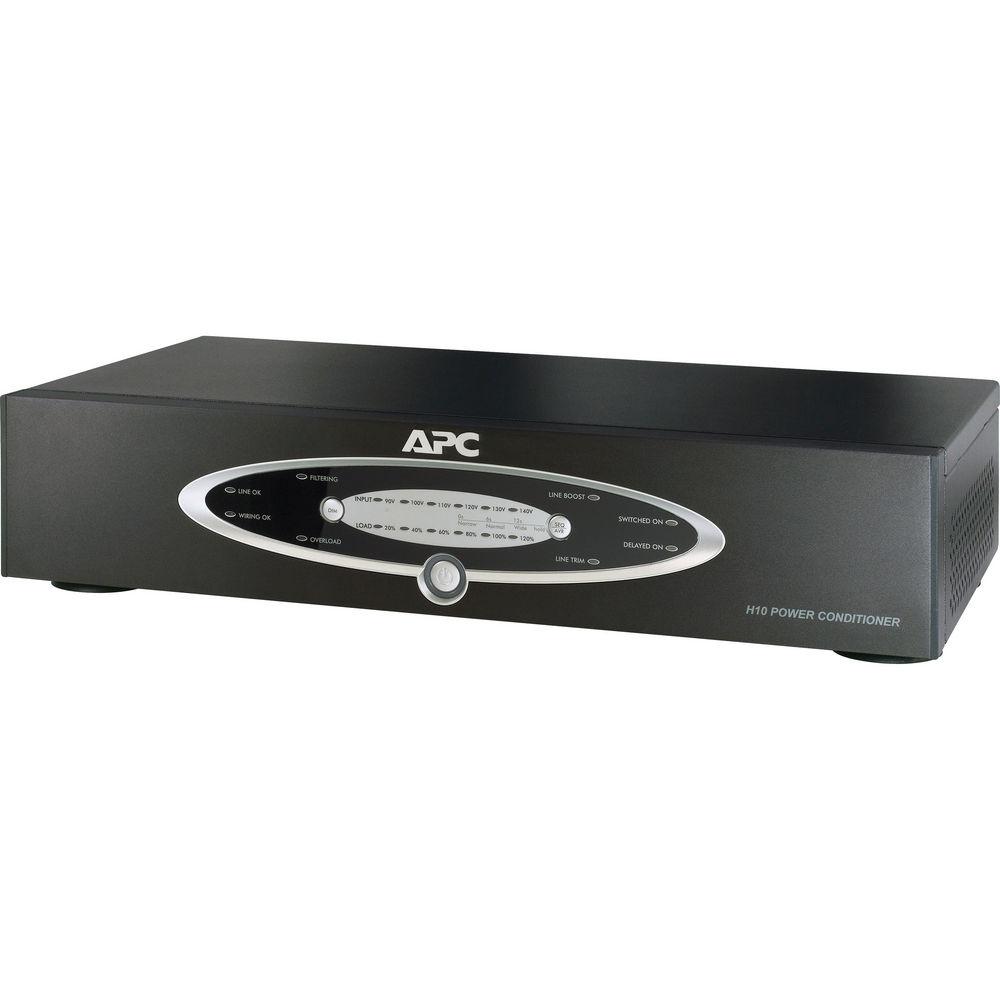

Product description The APC H10 Home Theater Power Conditioner will protect your high performance audio and video (A/V) system from damaging power surges, spikes and lightning. Protection is guaranteed. Isolated noise filter banks will eliminate EMI/RFI as a source of audio and video signal degradation. Data-line surge protection jacks will stop surges traveling over phone and modem or DSL lines. Digital Satellite System, Cable Modem, and CATV Coaxial Cable lines are equally protected. Sequenced turn-on and off ensures that connected equipment is powered-up/down in the proper order and with the right amount of delay between the stages. This feature is pre-programmed with a six second delay. This delay feature eliminates transients that can affect connected components, e.g. digital projectors. - Surge Protection
- The H10 provides a high level of surge protection for the voltage going into the unit, and additionally, surge protected coax/radio frequency (RF) connectors are protected against surges traveling over coaxial lines to protect your digital satellite system (DSS), CATV box, or cable modem. The telephone line surge protection provides a protected splitter to allow output to a telephone, modem, DSL, fax, DVR, DSS system, set-top internet service provider (such as WebTV), or pay-per-view cable TV function.
- Automatic Voltage Regulation (AVR)
- The H10 is unique in that it provides AVR, which is engaged to correct low and high voltage conditions. In doing so, all equipment connected to the H10 are protected against these undesired voltage fluctuations, thus, prolonging the life of the equipment.
- Isolated Noise Filter Banks (INFB)
- The H10 provides INFB technology to eliminate electromagnetic and RF interference that can negatively impact sound and video quality.

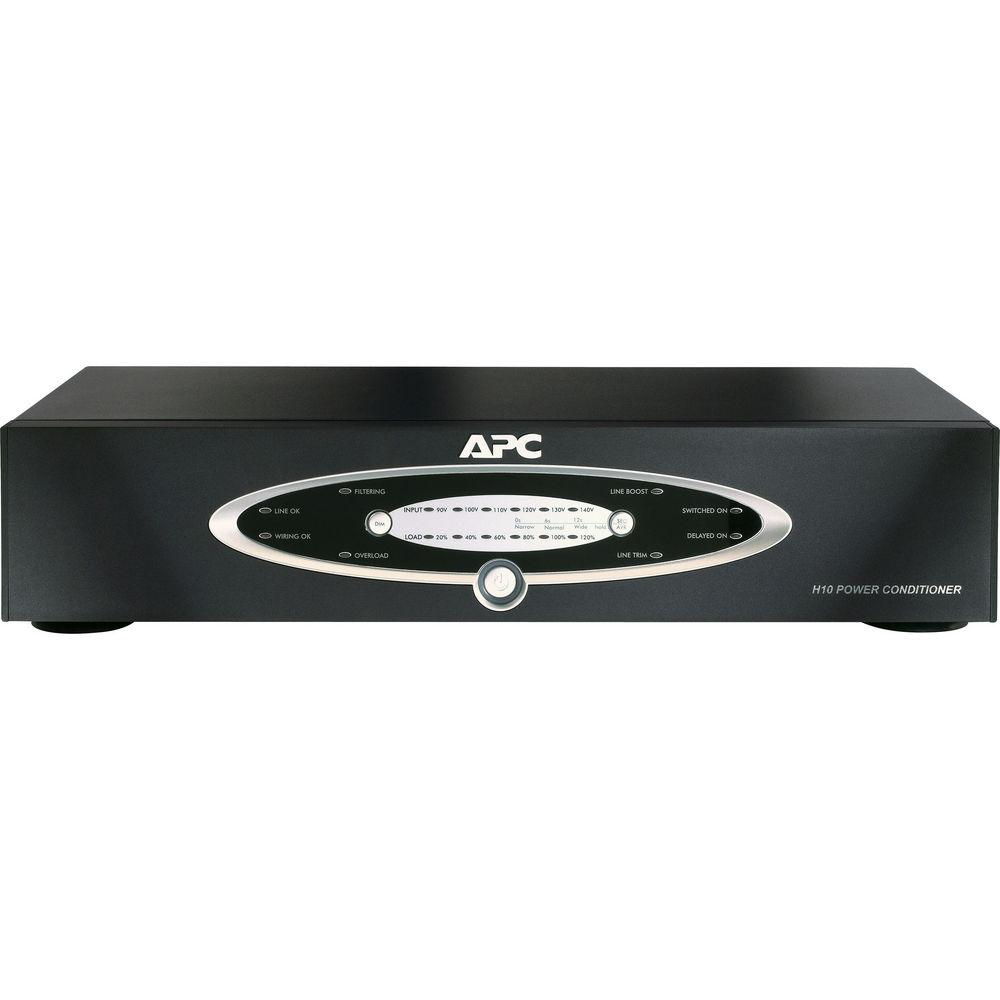

- Top Panel Controls and Indicators
-
- Wiring OK Status Indicator
- Line OK Status Indicator
- Line Boost Status Indicator (AVR activated)
- Line Trim Status Indicator (AVR activated)
- Filtering Status Indicator
- Switched On Status Indicator
- Delayed On Status Indicator
- LED Display (bars display voltage IN (line voltage) and LOAD)
- SEQ/AVR Push Button
- Dimmer Push Button (for LEDs)
- Overload Status Indicator
- On/Off switch

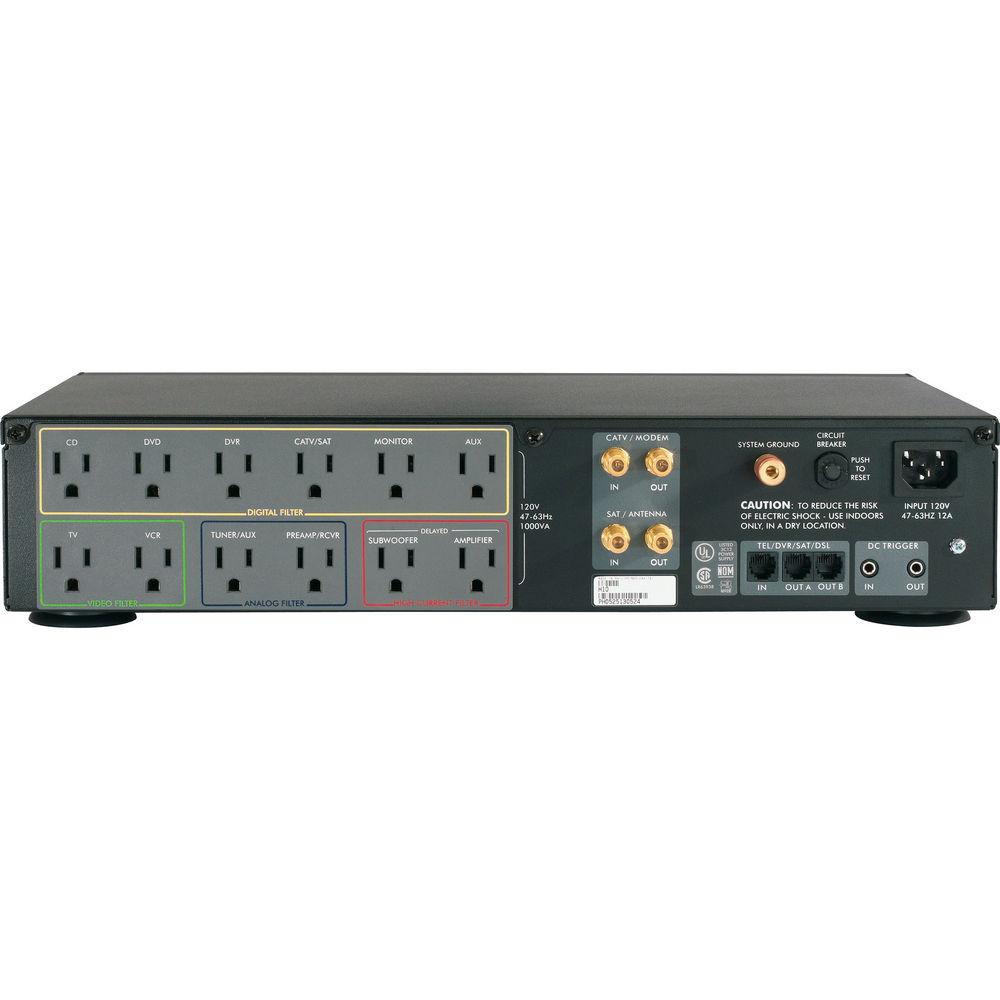

- AC-Powered Outlets
- The outlets are arranged according to the type of filtering protection provided for a given application. They are split up into the following groups: Digital filter outlets, video filter outlets, analog filter outlets, and high current filter outlets.
- DC Trigger Mini-Jack
- When connected to a component acting as a DC trigger, that component controls turn on/off of the "delayed" outlet banks. The H10 also allows that DC signal to pass through to another connected component. The maximum input voltage for the DC Trigger is 30VDC.
- Removable Support Feet
- Feet can be unscrewed and removed to save space when rack mounting.
UPC: 731304236542 In the Box APC H10 Home Theater Power Conditioner 10' Power Cord 2 x Coaxial Cable RJ-11 Telephone Cable Rack Mount Brackets (Pair) 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC H10 Home Theater Power Conditioner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC H10 Specs | Input | 1x 10' Power Cord with 3-prong plug (NEMA 5-15R)
2x Coaxial F connector inputs
1x RJ11 telephone line input | | Output | 12x 3-prong AC power outlets (NEMA 5-15P)
2x Coaxial F connector outputs
2x RJ11 Telephone outputs | | Surge Energy Rating | 4949 joules | | Battery | None | | Typical Backup Runtime | N/A | | Audible Alarm | None | | Agency Certifications | UL 1449, UL 1012, UL 498, UL+CSA FCC Part 68, Industry Canada | | Compatibility | Most AC powered A/V equipment (rack mountable) | | Environmental Requirements | 32 - 104 °F (-0 - 40 °C), 0 - 95% Relative Humidity | | Dimensions | 17 x 3.7 x 9.5" (43.2 x 9.5 x 24.1 cm) WxHxD | | Weight | 16.1 lb (7.3 kg) | | Equipment Protection | $500,000 Connected Equipment Warranty | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 20.0 x 13.0 x 7.0" |
