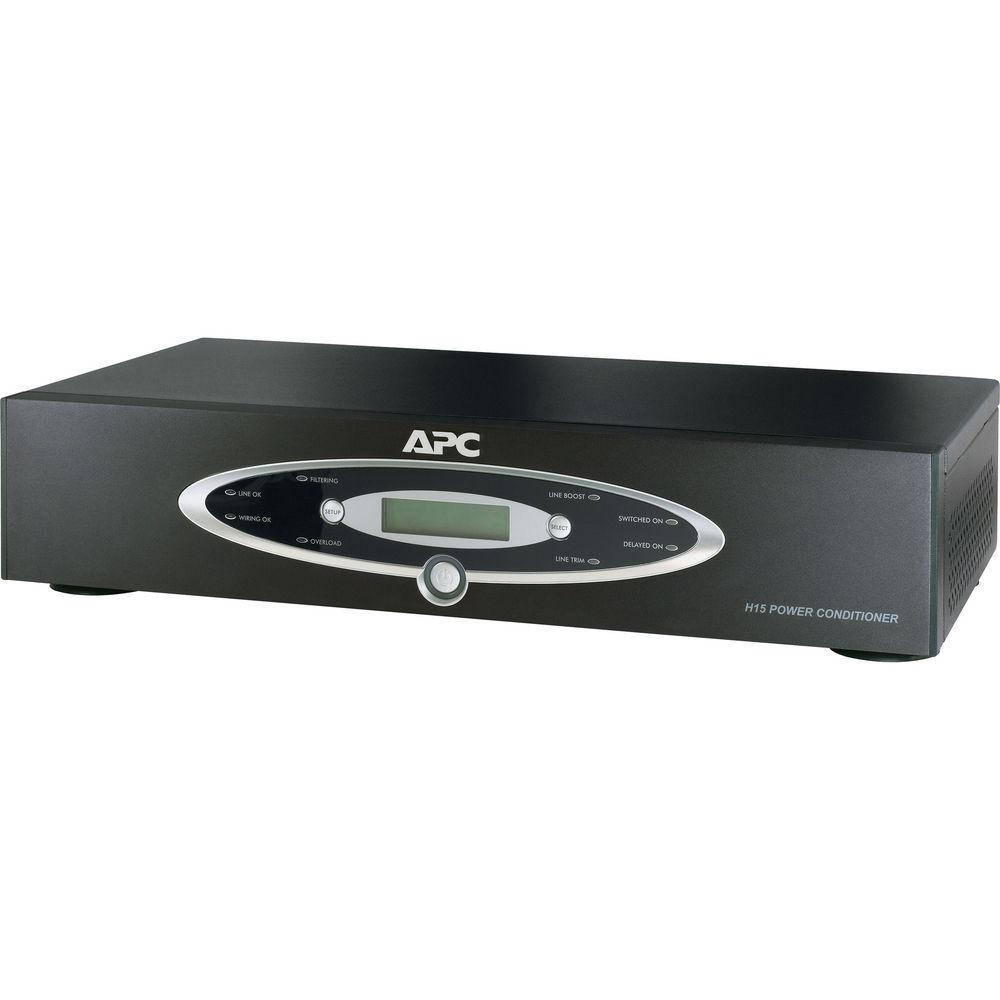

Product description The APC H15 Power Conditioner will protect your high performance audio and video (A/V) system from damaging power surges, spikes and lightning. Protection is guaranteed. Isolated noise filter banks will eliminate EMI/RFI as a source of audio and video signal degradation. Data-line surge protection jacks will stop surges traveling over phone and modem or DSL lines. Digital Satellite System, Cable Modem, and CATV Coaxial Cable lines are equally protected. Sequenced turn-on and off ensures that connected equipment is powered-up/down in the proper order and with the right amount of delay between the stages. It allows you to program a delay into the sequence between 0 and 12 seconds. This feature helps to eliminate any "popping" sounds coming from speakers when turning on the system. This delay feature also eliminates transients that can affect connected components, e.g. digital projectors. - Surge Protection
- The H15 provides a high level of surge protection for the voltage going into the unit, and additionally, surge protected coax/radio frequency (RF) connectors are protected against surges traveling over coaxial lines to protect your digital satellite system (DSS), CATV box, or cable modem. The telephone line surge protection provides a protected splitter to allow output to a telephone, modem, DSL, fax, DVR, DSS system, set-top internet service provider (such as WebTV), or pay-per-view cable TV function.
- Automatic Voltage Regulation (AVR)
- The H15 is unique in that it provides AVR, which is engaged to correct low and high voltage conditions. In doing so, all equipment connected to the H15 are protected against these undesired voltage fluctuations, thus, prolonging the life of the equipment.
- Isolated Noise Filter Banks (INFB)
- The H15 provides INFB technology to eliminate electromagnetic and RF interference that can negatively impact sound and video quality.

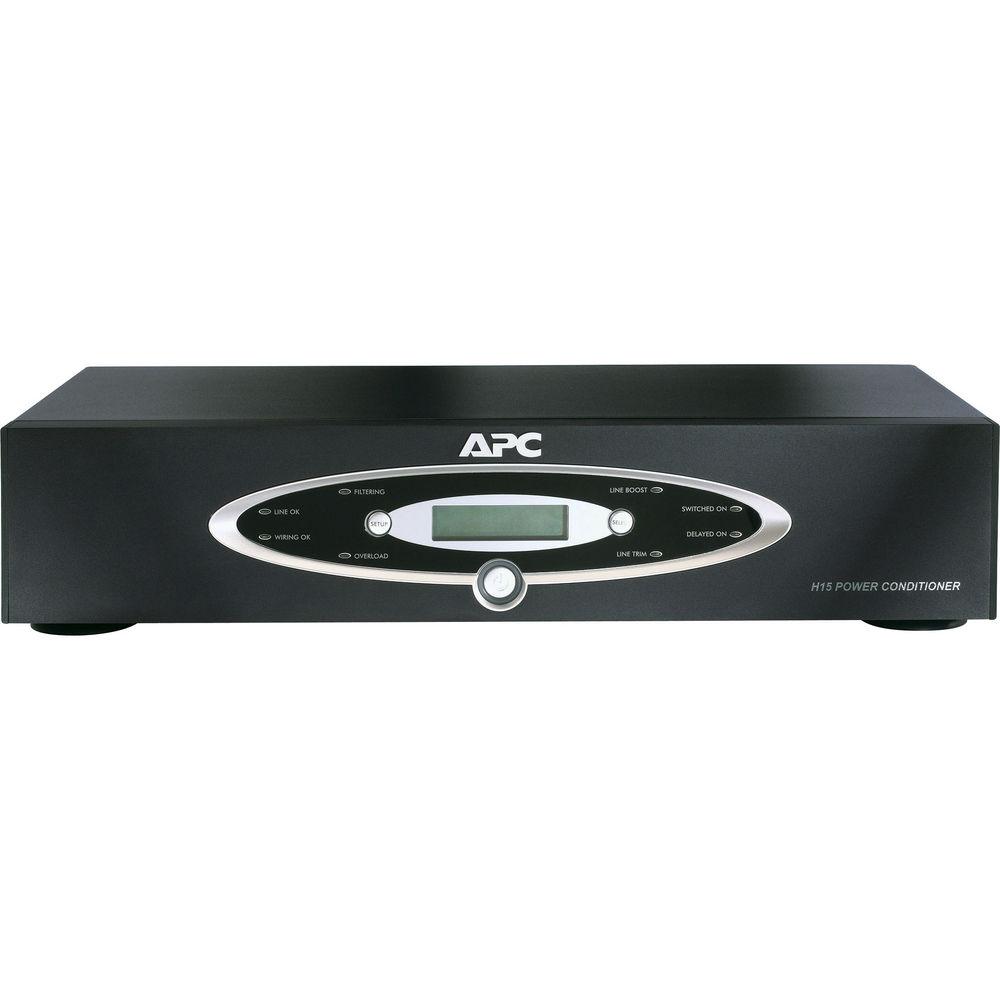

- Front Panel Controls and Indicators
-
- Wiring OK Status Indicator
- Line OK Status Indicator
- Line Boost Status Indicator (AVR activated)
- Line Trim Status Indicator (AVR activated)
- Filtering Status Indicator
- Switched On Status Indicator
- Delayed On Status Indicator
- Select Push Button
- Backlit LCD Display
- Setup Push Button
- On/Off switch

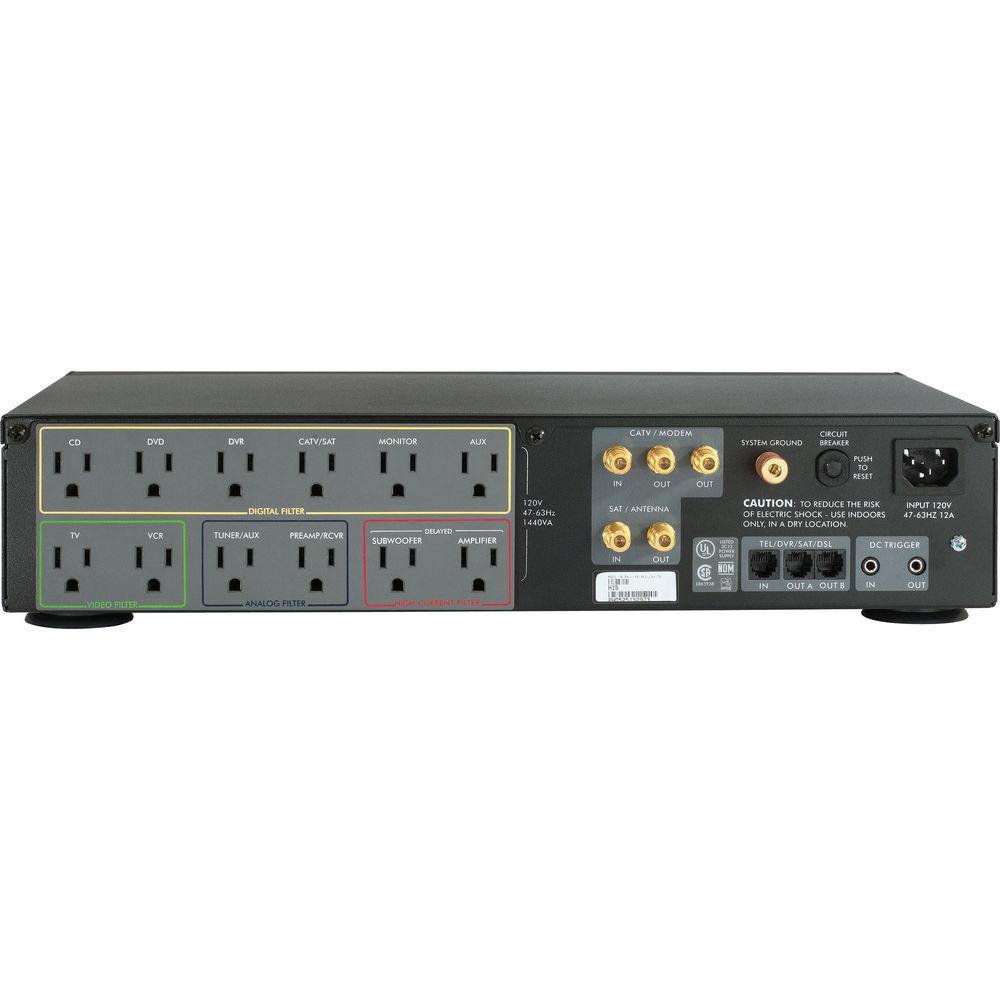

- AC-Powered Outlets
- The outlets are arranged according to the type of filtering protection provided for a given application. They are split up into the following groups: Digital filter outlets, video filter outlets, analog filter outlets, and high current filter outlets.
- DC Trigger Mini-Jack
- When connected to a component acting as a DC trigger, that component controls turn on/off of the "delayed" outlet banks. The H15 also allows that DC signal to pass through to another connected component. The maximum input voltage for the DC Trigger is 30VDC.
- LCD Display and Unit Customization
- The LCD displays important information including voltage in (line voltage) and voltage out, frequency, and load. Additionally, the LCD is used to program features such as the delay or dimmer settings.
- Removable Support Feet
- Feet can be unscrewed and removed to save space when rack mounting.
UPC: 731304236535 In the Box APC H15 Home Theater Power Conditioner 10' Power Cord 2 x Coaxial Cable RJ-11 Telephone Cable Rack Mount Brackets (Pair) 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC H15 Home Theater Power Conditioner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC H15 Specs | Input | 1x 10' Power Cord with 3-prong plug (NEMA 5-15R)
2x Coaxial F connector inputs (incl. 1 splitter)
1x RJ11 telephone line input | | Output | 12x 3-prong AC power outlets (NEMA 5-15P)
3x Coaxial F connector outputs
2x RJ11 Telephone outputs | | Surge Energy Rating | 5270 joules | | Battery | None | | Typical Backup Runtime | N/A | | Audible Alarm | None | | Agency Certifications | UL 1449, UL 1012, UL 498, UL+CSA FCC Part 68, Industry Canada | | Compatibility | Most AC powered A/V equipment (rack mountable) | | Environmental Requirements | 32 - 104 °F (-0 - 40 °C), 0 - 95% Relative Humidity | | Dimensions | 17 x 3.7 x 9.5" (43.2 x 9.5 x 24.1 cm) WxHxD | | Weight | 16.7 lb (7.6 kg) | | Equipment Protection | $750,000 Connected Equipment Warranty | | Additional Info | - Let Through Voltage Rating: < 40
- Maximum Input Current: 15A
- Input Breaker Capacity: 15A
- EMI/RFI Noise rejection (100 kHz to 10 mHz): 50 dB
| | | | Package Weight | 22.7 lb | | Box Dimensions (LxWxH) | 20.6 x 13.0 x 7.1" |
