User Manual for APC Home Office SurgeArrest 12-Outlet Surge Protector Click to enlarge the picture
Contents of the user manual for the APC Home Office SurgeArrest 12-Outlet Surge
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
 |
User manual for the APC Home Office SurgeArrest 12-Outlet Surge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

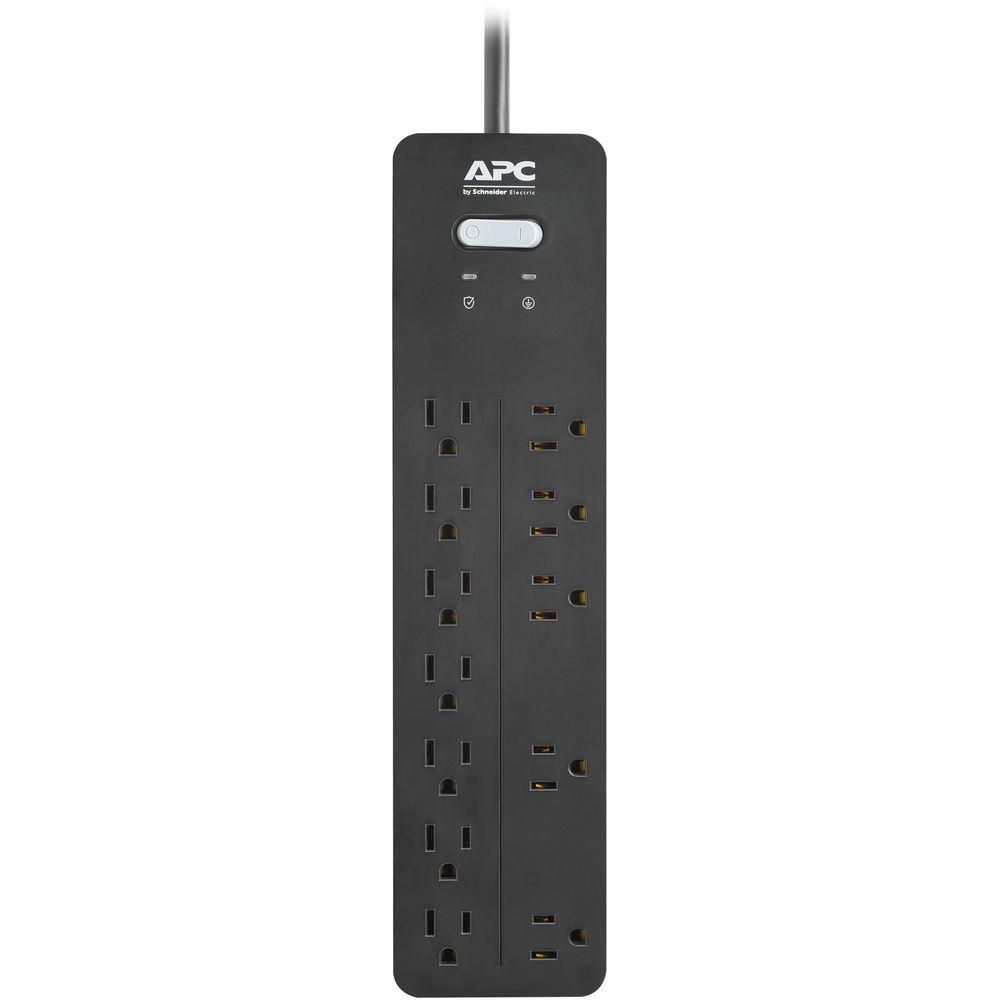

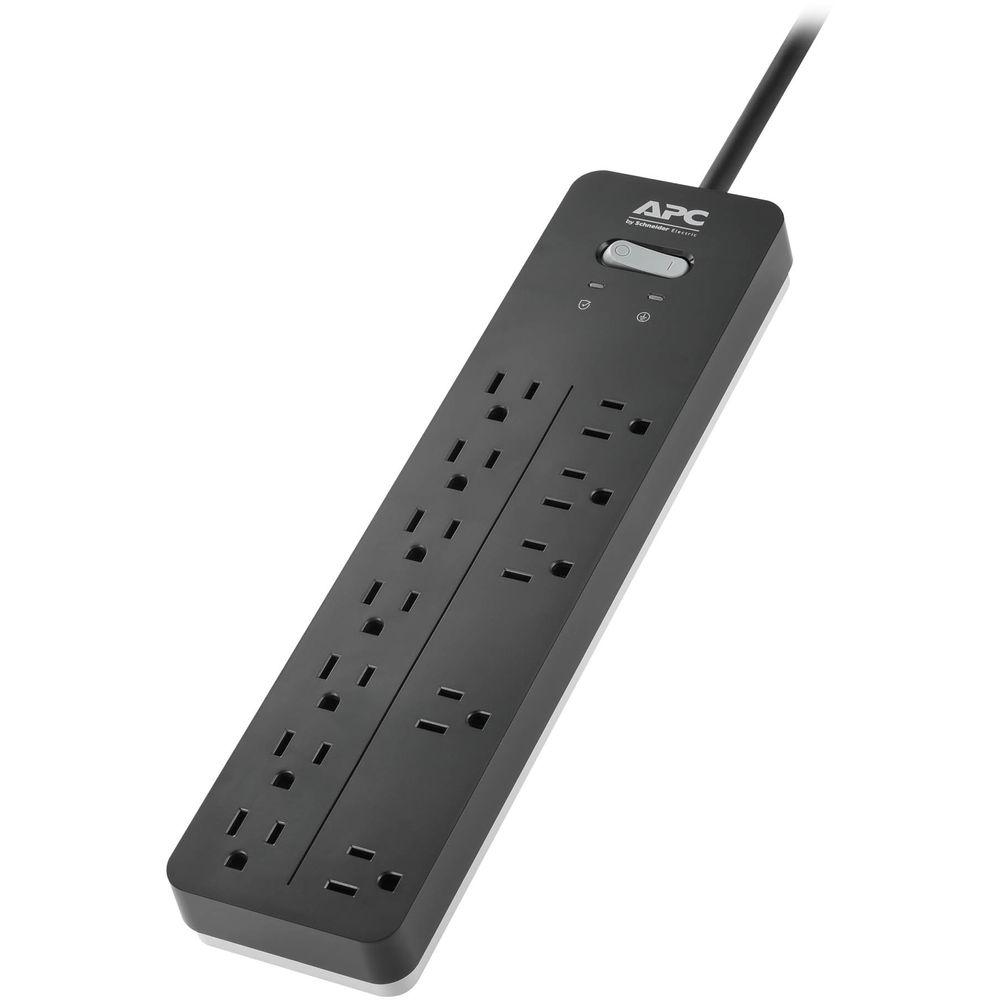

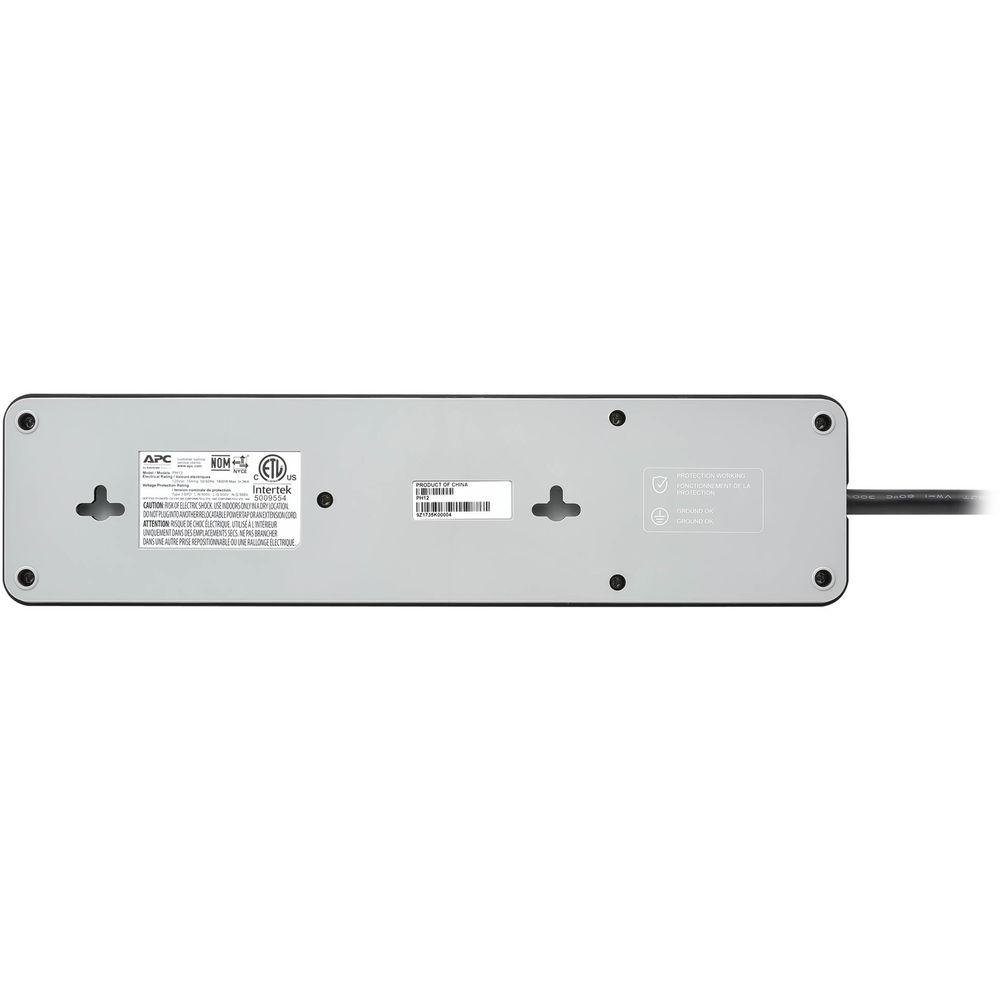

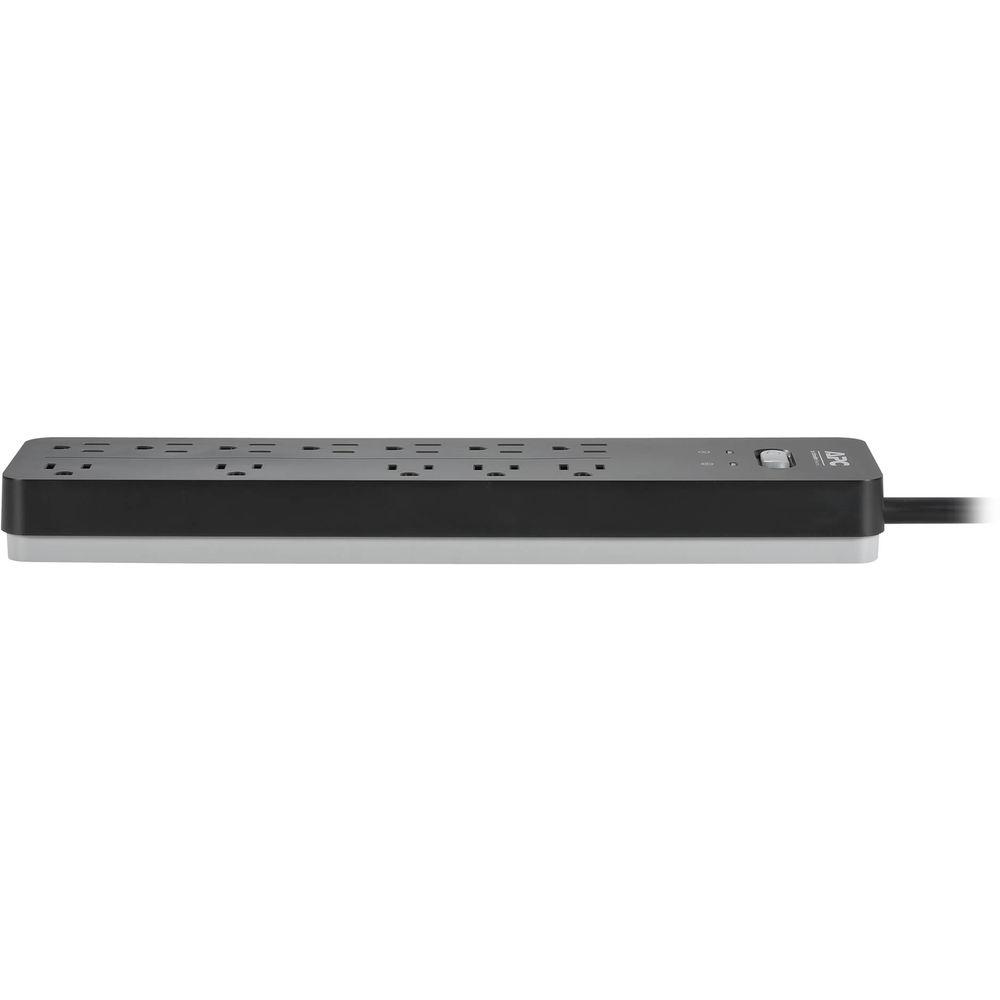

Product description Provide professional-grade electrical protection against power surges and spikes for computers and electronics using the black Home Office SurgeArrest 12-Outlet Surge Protector from APC. This unit has 12 NEMA 5-15R outlets–two of which are spaced to accommodate larger transformer plugs–and a standard NEMA 5-15P input connection. It uses an input voltage of 120V @ 50/60 Hz with a 15A input/line current, and has a surge energy rating of 2160 joules. This SurgeArrest model utilizes an integrated 6' power cord and turns on and off using a recessed power switch. Protection is provided by a limited lifetime warranty, and connected equipment that is damaged while the SurgeArrest is active will be covered up to $150,000, subject to APC's terms and conditions. General Features - Right-Angle Plug
- A 90° plug angle allows for equipment and furniture to be placed closer to the wall than with a standard power cord. This also reduces cord stress.
Safety - Catastrophic Event Protection
- SurgeArrest components such as MOVs and thermal fuse help ensure an instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spikes or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
- Fail-Safe Mode
- Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. With APC's SurgeArrest fail-safe, once the circuit of an APC SurgeArrest has been compromised, the unit disconnects equipment from the power supply, helping to ensure that no damaging surges reach your equipment.
Convenience - Protection Working Indicator
- SurgeArrest will warn you if its circuitry has been damaged by a heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
- Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Adjustable Cable Management
- Keeps cords and cables neat and organized.
- Receptacle Shock Safety Shutters
- Shutters help protect users from accidental contact with unused outlets.
- Transformer Block Spacing
- Connect bulky transformer block plugs without covering up other outlets.
Protection - Lightning and Surge Protection
- This helps prevent damage to your equipment from electric power surges and spikes.
- IEEE Let-Through Ratings and Regulatory Agency Compliance
- APC surge protectors undergo stringent testing by the IEEE, and have been awarded "let-through ratings," which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC SurgeArrest series offers performance with a let-through rating of less than 330V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
- Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, helping to ensure better performance of protected equipment.
UPC: 731304335948 In the Box APC Home Office SurgeArrest 12-Outlet Surge Protector (6', 120V, Black) $150,000 Lifetime Equipment Protection Policy Limited Lifetime Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Home Office SurgeArrest 12-Outlet Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC SurgeArrest Specs | | | Wall Plug Type | NEMA 5-15P (Right-Angle) | | Outlets | 12 x NEMA 5-15R (2 Block-Sized) | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz at 15 A | | Rated Current | 15 A | | Circuit Breaker | No | | Surge Energy Rating | 2160 Joules | | | | Certifications | UL, as per Manufacturer | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | | | Cable Length | 6' / 1.83 m | | Cable Management | Yes | | Dimensions (L x W x H) | 12.1 x 3.1 x 1.2" / 30.7 x 7.9 x 3.0 cm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 13.5 x 5.7 x 1.9" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
