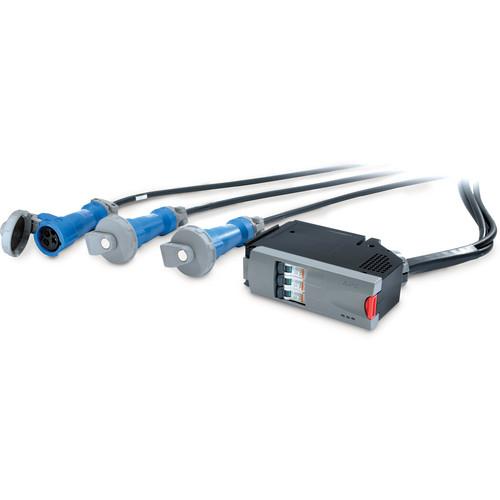

User Manual for APC IT Power Distribution Module 3x1 Pole 3 Wire 32A 3xIEC309 Click to enlarge the picture
Contents of the user manual for the APC IT Power Distribution Module 3x1
- Product category: UPS Accessories APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Accessories
|
User manual for the APC IT Power Distribution Module 3x1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The IT Power Distribution Module 3x1 Pole 3 Wire 32A 3xIEC309 from APC is a touch-safe module that includes a circuit breaker, power cord, power connection and circuit monitoring. This Module omits the need for hot work or shutdowns during expansion of the power distribution system. - Network Management
- The Power Distribution Module connects to the UPS and provides proactive power and environmental management via web and/or SNMP
- Built-in Web/SNMP Management
- Full-featured management via a web browser as well as comprehensive management from a Network Management System
- Low Cost Power Distribution
- Provides three outlets to bring power to rack equipment at an affordable price
- Smallest Footprint
- The Power Distribution Module's compact size utilizes minimum space
- System Mobility
- PDU equipment can easily be relocated to accommodate a changing data center environment
- Local and Web-Based Monitoring
- Status available to customers both in the data center and remotely
- Multiple Distribution Options
- Superior design flexibility enables a wide range of customer requirements to be addressed
- LED Status Indicators
- LEDs provide visual confirmation of unit and power status
- Safety
- Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection
- Power Monitoring
- Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost
- Quick Status Information LEDs
- Access status information about the performance of the Power Distribution Module
- Toolless Installation of Breakers
- Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required
- Global Product Offering
- Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world
In the Box APC IT Power Distribution Module 3x1 Pole 3 Wire 32A 3xIEC309 Installation Guide 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC IT Power Distribution Module 3x1 Pole 3 Wire 32A 3xIEC309 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC PDM1332IEC-3P-2 Specs | | | Nominal Output Voltage | 230 V | | Total Current Draw per Phase | Maximum: 32A | | Output Connections | (3) IEC 309 32A (2P+E) | | | | Nominal Input Voltage | 400V 3PH | | Input Frequency | 50Hz | | Maximum Line Current per phase | 32A | | | | Regulatory Approvals | CE,VDE | | Dimensions (HxWxD) | 5.9 x 17 x 5.9" (15.2 x 43.2 x 15.2 cm) | | Weight | 14.08 lb (6.39 kg) | | | | Package Weight | 16.06 lb | | Box Dimensions (LxWxH) | 17.0 x 6.0 x 6.0" |
