User Manual for APC J25B A V Power Conditioner with Battery Backup Click to enlarge the picture
Contents of the user manual for the APC J25B A V Power Conditioner
- Product category: Power Conditioners APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Conditioners
 |
User manual for the APC J25B A V Power Conditioner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The black J25B A/V Power Conditioner with Battery Backup helps protect audio/video systems from power spikes and surges. Its isolated power filters are designed to eliminate electromagnetic and RF interference. It has noise filter banks, which reduce electromagnetic interference to help ensure great picture and sound quality. The power conditioner has six battery backup outlets and two outlets that only receive surge protection. It features a building wiring fault indicator LED, which will let you know of any problems with your building's internal wiring. The J25B also provides clean and safe power to connected equipment in the event of a power outage. - Battery Failure Notification
- Provides early-warning fault analysis on batteries to help enable timely preventive maintenance.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.

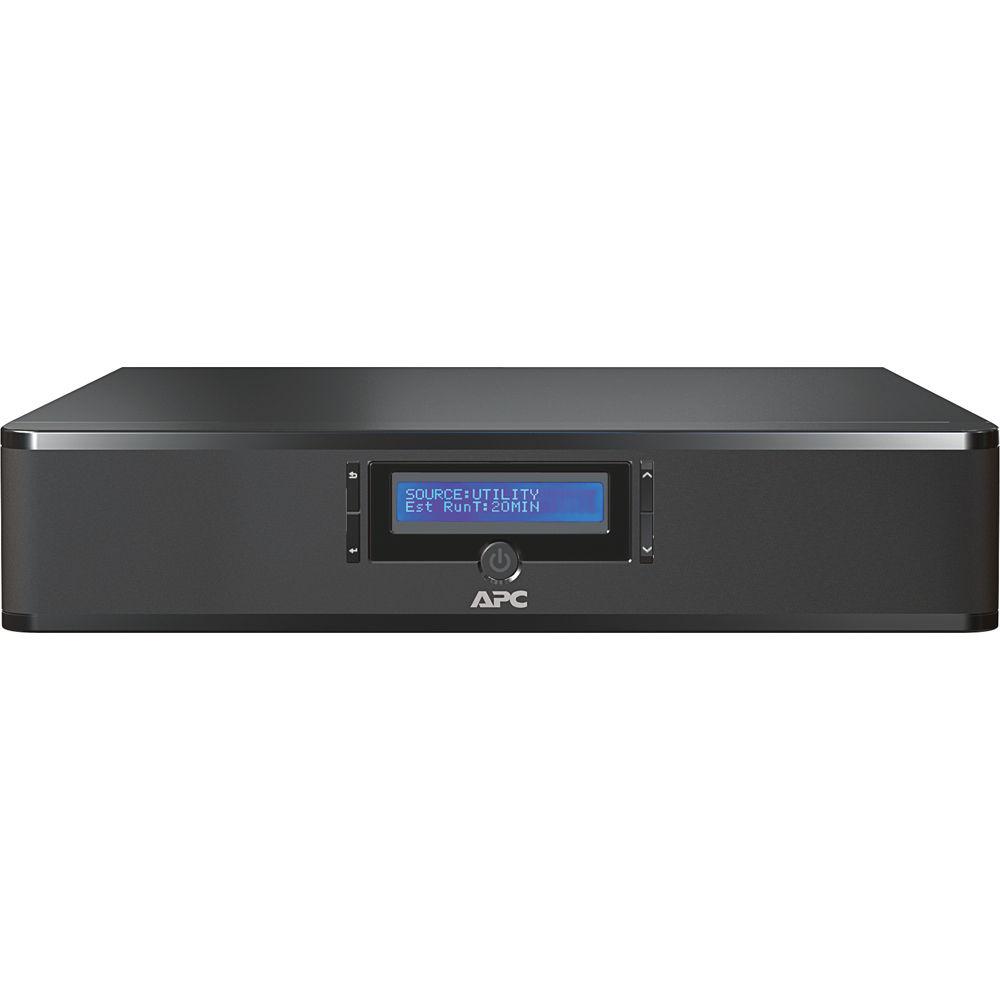

- LCD Display
- Alpha-numeric display of system parameters and alarms.
- Data-line Protection
- Protection of data lines (Ethernet, coaxial and phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from "back door" electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
- Battery-Protected and Surge-Only Outlets
- Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge-only protection for less critical equipment.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Transformer-Block Spaced Outlets
- Protect equipment with input transformer blocks without blocking access to other receptacles.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Battery Replacement Without Tools
- Enables fast battery replacement, lowering mean time to repair (MTTR).
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Isolated Power Filter Banks
- Eliminates electromagnetic and radio frequency interference (EMI/RFI) as a source of audio-video signal degradation.
- Multiple Mounting Methods
- Allows for standardization on one product for use in different environments.
- Front-Access Servicing
- Simplifies installation and UPS maintenance while minimizing space requirements.
- Sequenced Turn On/Off
- Helps power on components in the proper order to prevent speaker stress, while proper sequencing can also help manage current draw on startup to prevent unnecessary circuit breaker tripping.
- LED and Display Dimmer
- Adjust the unit's LED and display brightness independently of each other to suit your individual tastes and environment.
UPC: 731304277415 In the Box APC J25B A/V Power Conditioner with Battery Backup Coaxial Cable USB Cable Ethernet Cable Power Cord CD with Software Limited 3-Year Warranty User Manual PDF 13.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the APC J25B A V Power Conditioner with Battery Backup in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

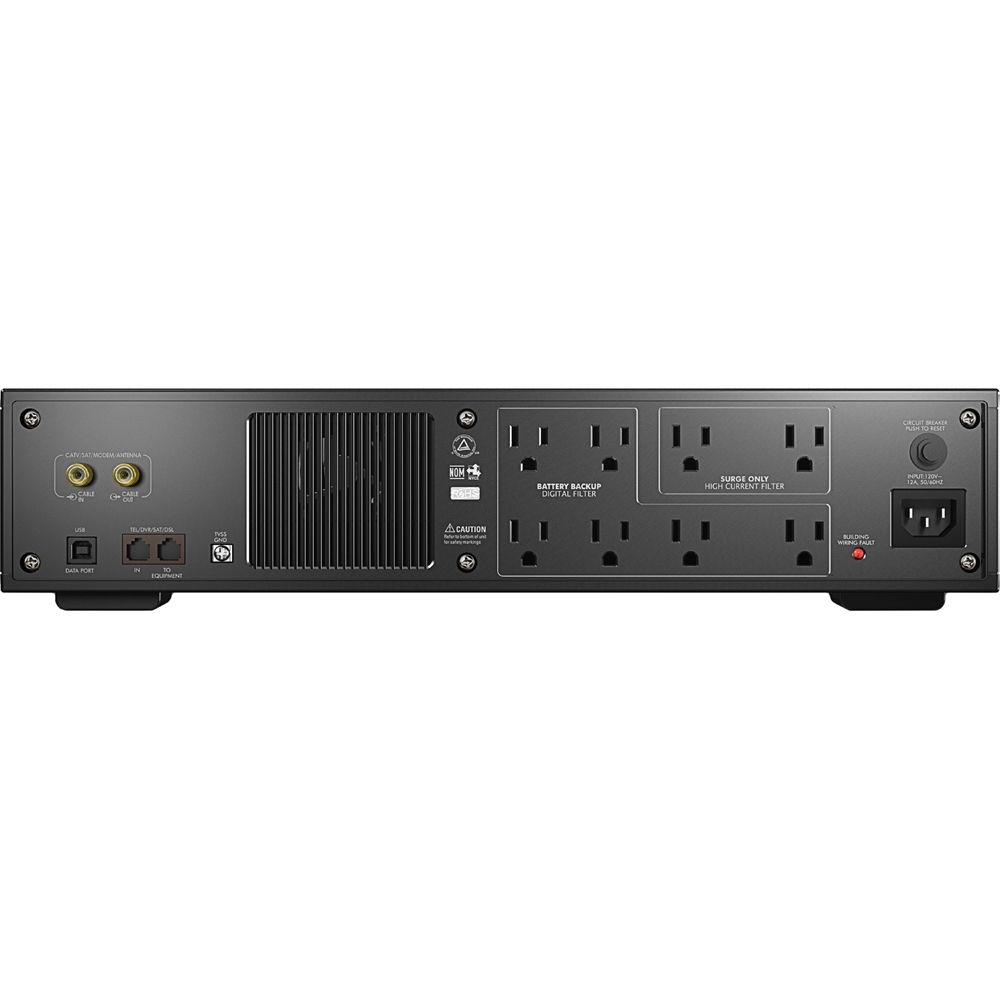

Technical parametersAPC J25 Specs | | | Output Power Capacity | 865 W/1500 VA | | Maximum Configurable Power | 865 W/0 VA | | Nominal Output Voltage | 120 V | | Output Frequency (Sync to Mains) | 50/60 Hz ±3 Hz | | Waveform Type | Stepped approximation to a sinewave | | Connectors | 6 x Battery backup outlets
2 x Surge protection only outlets
1 x Coaxial in
1 x Coaxial out
1 x Telephone line in for phone, DVR, satellite, or DSL
1 x Telephone line out for phone, DVR, satellite, or DSL
1 x USB Type-B for optional PowerChute software | | | | Nominal Input Voltage | 120 V | | Input Frequency | 50/60 Hz ±3 Hz (auto sensing) | | Input Voltage Range | 98 to 132 V | | | | Battery Type | Maintenance-free, leak-proof, sealed lead-acid battery with suspended electrolyte | | Typical Battery Life | 3 to 6 years, a shorter period if subjected to frequent outages or elevated temperatures | | Included Battery Modules | 1 | | Typical Recharge Time | 16 Hours | | RBC Quantity | 1 | | | | Surge Energy Rating | 345 Joules | | | | Operating Environment | Temperature: 32 to 104°F (0 to 40°C)
Relative Humidity: 0 to 95%
Elevation: 0.0 to 10,000.0' (0.0 to 3000.0 m) | | Storage Environment | Temperature: 5 to 104°F (-15 to 40°C)
Relative Humidity: 0 to 95%
Elevation: 0.0 to 10,000.0' (0.0 to 3000.0 m) | | Audible Noise | 45 dBA | | | | Regulatory Approvals | California (CEC) Battery Charger, ENERGY STAR (USA), FCC Part 15 Class B, UL 1778 | | Equipment Protection | Lifetime: $350,000 | | RoHS Compliant | Yes | | REACH | Contains No SVHCs | | Number of Outlet Receptacles | 8 (6 battery backup, 2 surge only) | | | | Power Cord | 8.00' (2.43 m) right angle NEMA 5-15 plug | | Dimensions | 3.84 x 17.00 x 16.00" (9.70 x 43.10 x 40.60 cm) | | Weight | 25.74 lb (11.70 kg) | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 23.4 x 22.7 x 9.7" |
