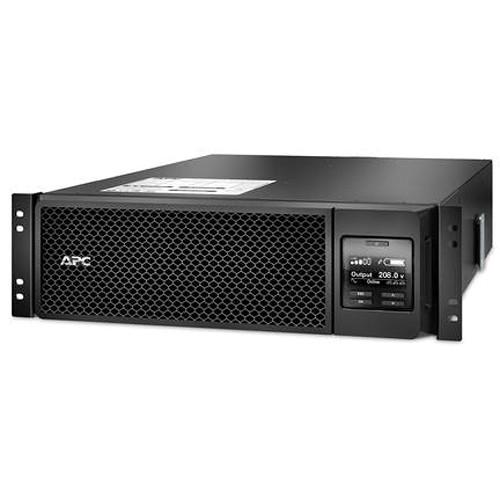

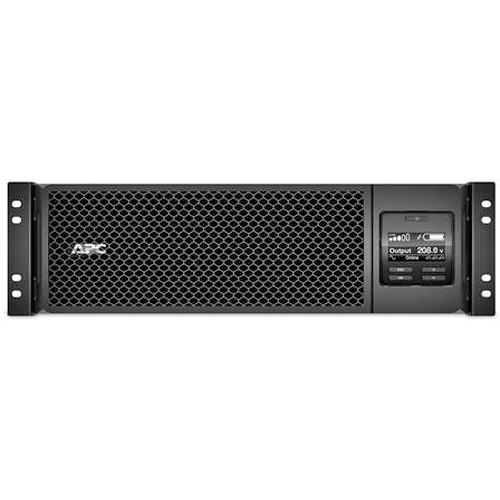

User Manual for APC On-Line SRT 5000VA RM Smart-UPS Click to enlarge the picture
Contents of the user manual for the APC On-Line SRT 5000VA RM Smart-UPS
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC On-Line SRT 5000VA RM Smart-UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The On-Line SRT 5000VA RM (208V) Smart-UPS from APC provides power to your important computer components in the event of an electrical outage. The power supply comes with 4250W/5000 VA output. Text and mimic diagrams display modes of operation, system parameters, and alarms with an LCD display. A Green operating mode bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing any protection. It has hot-swappable batteries that ensure clean, uninterrupted power to protected equipment while batteries are being replaced. - LCD Graphics Display
- Text and mimic diagrams that display modes of operation, system parameters, and alarms
- 10/100 BaseT Connection
- Connect the device to a network using a 10 or 100 BaseT connection
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve high operating efficiency without sacrificing any protection
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment
- Automatic Internal Bypass
- Supplies utility power to the connected loads in the event of a UPS power overload or fault
- Scalable Runtime
- Allows additional run time to be quickly added as per the requirements
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Automatic Restart of Loads after UPS Shutdown
- Automatically starts up the connected equipment upon the return of utility power
- Temperature-Compensated Battery Charging
- Prolongs battery life by regulating the charge voltage according to battery temperature
- Network Manageable
- Provides remote power management of the UPS over the network
- InfraStruXure Manager Compatible
- Enables centralized management via the APC InfraStruXure manager
- SmartSlot
- Customize UPS capabilities with management cards
- LED Status Indicators
- Quickly understand unit and power status with visual indicators
- Serial Connectivity
- Provides management of the UPS via a serial port
- Plug and Play External Batteries
- Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS
- Rack/Tower Convertible
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment
- Flash Upgradeable Firmware
- Install maintenance releases of firmware remotely using FTP
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Predicitive Failure Notification
- Provides early-warning fault analysis ensuring proactive component replacement
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions
- Frequency and Voltage Regulation
- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery
- Power Conditioning
- Protects connected loads from surges, spikes, lightning, and other power disturbances
- Input Power Factor Correction
- Minimizes installation costs by enabling the use of smaller generators and cabling
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment when generator power is used
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- Resettable Circuit Breaker
- Easy recovery from overloads, so no need to replace a fuse
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
UPC: 731304301509 In the Box APC On-Line SRT 5000VA RM (208V) Smart-UPS Documentation CD Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails USB Cable Web/SNMP Management Card Limited 3-Year Warranty Limited 2-Year Warranty (for Battery) More from Manufacturer xurdfvrdvvrzuycubdxvcyzfbyxue More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC On-Line SRT 5000VA RM Smart-UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

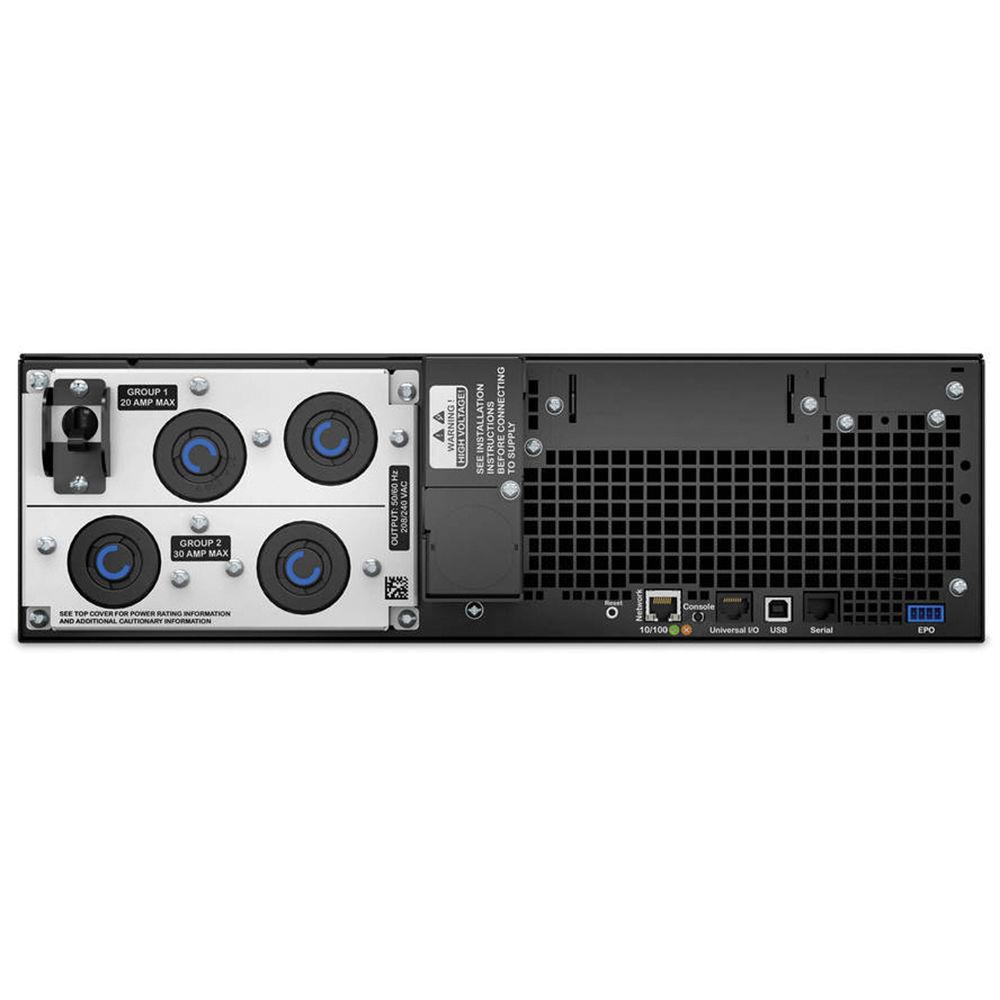

Technical parametersAPC SRT5KRMXLT Specs | | | Total Outlets | 2 x NEMA L6-20R
2 x NEMA L6-30R | | Plug Type | NEMA L6-30P | | SmartSlot Interface | 1 | | Data Line Protection | RJ45 | | Communications | USB | | Emergency Power Off (EPO) Support | Yes | | Topology | Double Conversion | | | | Surge Energy Rating | 480 Joules | | Maximum Wattage | 4250 W | | Input Voltage Range | 208 to 240 VAC | | Input Voltage Adjustable Range | 160 to 275 VAC | | Input Frequency | 50/60 Hz ± 10 Hz (Auto Sensing) | | Nominal Output Voltage | 208 VAC | | Output Voltage Range | 208 to 240 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Voltage Distortion | <3% | | Load Capacity | 5000 VA | | Thermal Dissipation | 1047 BTU/Hour | | Crest Factor | 3:1 | | Waveform | Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 1.5 Hours | | Replacement Battery | APCRBC140 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 55 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 3 RU | | Dimensions (W x H x D) | 17.0 x 5.1 x 28.3" / 432.0 x 130.0 x 719.0 mm | | Weight | 123.0 lb / 55.8 kg | | | | Package Weight | 149.5 lb | | Box Dimensions (LxWxH) | 37.5 x 24.5 x 13.4" |
