User Manual for APC P11VT3 SurgeArrest 11-Outlet Surge Protector Click to enlarge the picture
Contents of the user manual for the APC P11VT3 SurgeArrest 11-Outlet Surge Protector
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
 |
User manual for the APC P11VT3 SurgeArrest 11-Outlet Surge Protector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

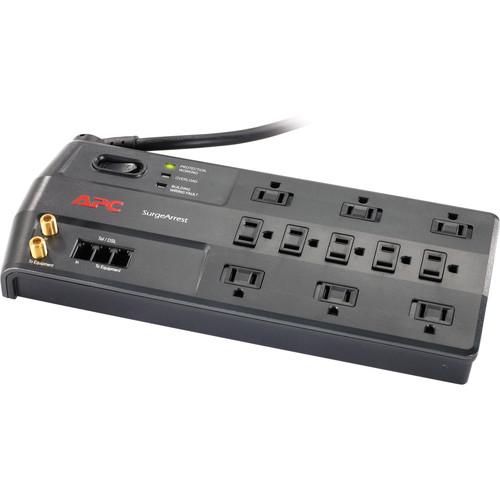

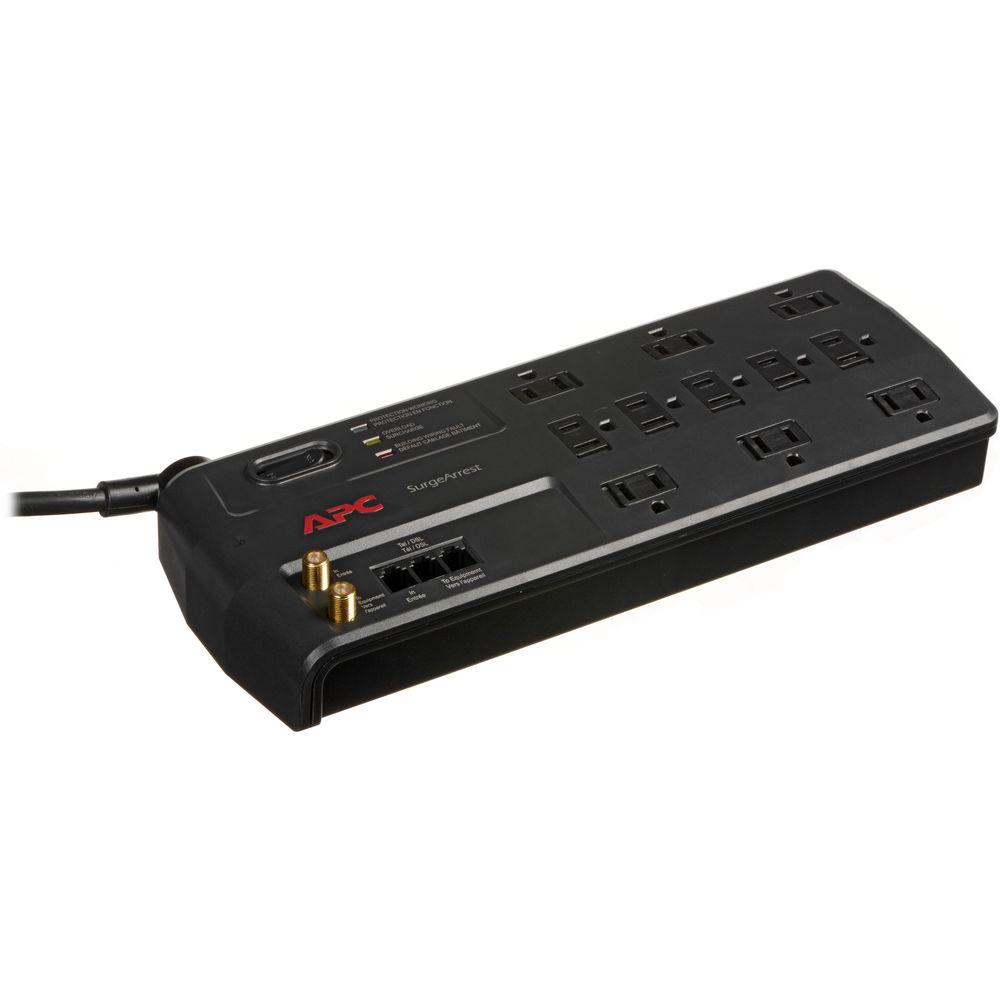

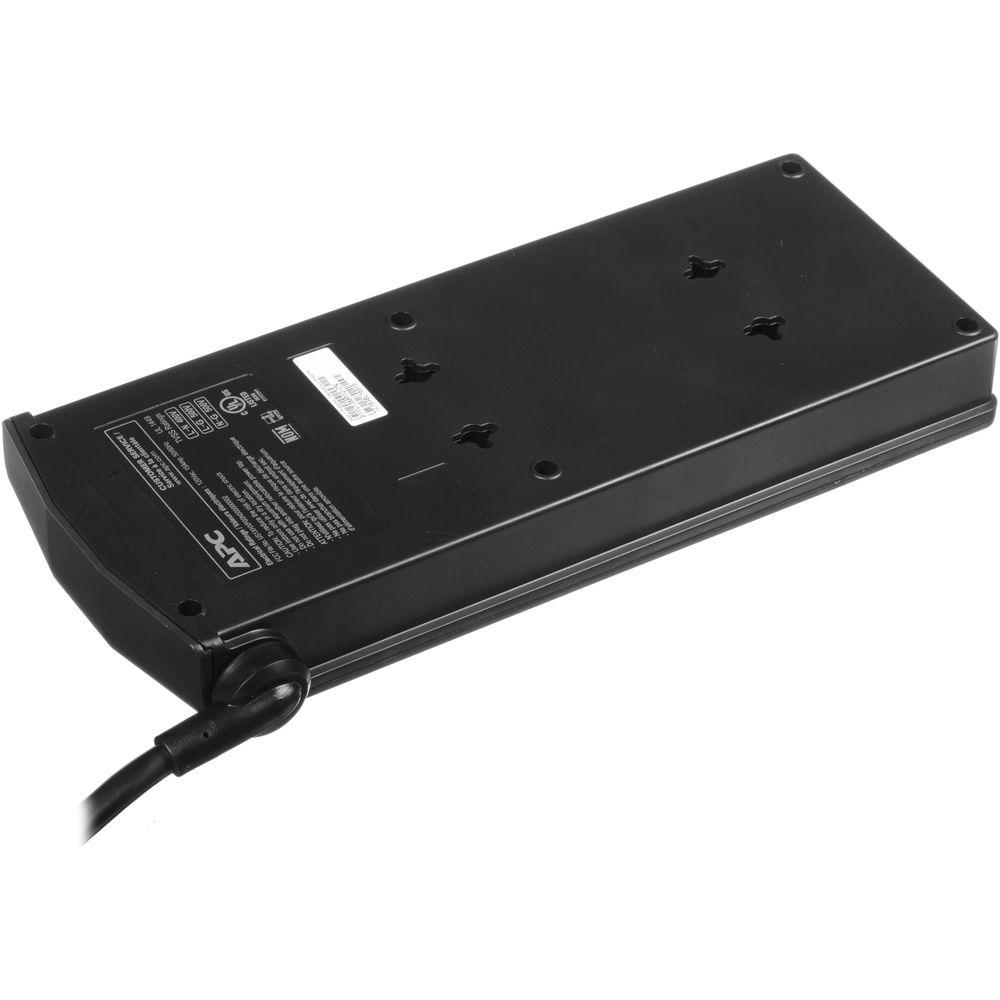

Product description The black P11VT3 SurgeArrest 11-Outlet Surge Protector from APC allows you to power up to 11 electronic devices using a single wall outlet. The power strip features powerful surge protection, protecting against surges of up to 3020 joules in strength. The power strip features a phone line splitter, which allows you to use two pieces of equipment at once, such as a modem and a phone. Protection of data lines (Ethernet, coaxial and phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from "back door" surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines. It thus provides protection that your equipment needs. - Phone Line Splitter
- Allows use of two pieces of equipment at once, such as a modem and a phone.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Receptacle Shock Safety Shutters
- Shutters protect users from accidental contact with unused outlets.
- Fail-Safe Mode
- Many surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. However, SurgeArrest is fail-safe, which means that once the circuit of an APC SurgeArrest has been compromised, the unit disconnects the equipment from the power supply, ensuring that no damaging surges reach your equipment.
- Data Line Protection
- Protection of data lines (Ethernet, coaxial and phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from "back door" surges traveling through data lines, since they can be as damaging to your equipment as surges traveling over power lines.
- Protection Working Indicator
- SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
- Catastrophic Event Protection
- SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment.
- Transformer Block Spacing
- Connect bulky transformer block plugs without covering up other outlets.
- Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
- Right Angle Plug
- Right angle plug allows for equipment and furniture to be placed closer to the wall than with a standard power cord. It also reduces cord stress.
- 180° Rotating Cord Retainer
- A 180° rotating cord with strain relief offers flexibility in positioning the SurgeArrest, and in routing the power cord.
- Building Wiring Fault Indicator
- Informs users of potentially dangerous wiring problems in the wall circuit.
- Adjustable Cable Management
- Keeps cords and cables neat and organized.
- Lightning and Surge Protection
- Prevents damage to your equipment from power surges and spikes.
- IEEE Let-Through Ratings and Regulatory Agency Compliance
- Stringent testing ensures that APC's surge protectors will safeguard your equipment and data from potentially damaging surges and spikes.
- Overload Indicator
- This indicator illuminates when connected equipment draw more power than the unit's capacity. To remedy the condition, unplug less vital equipment.

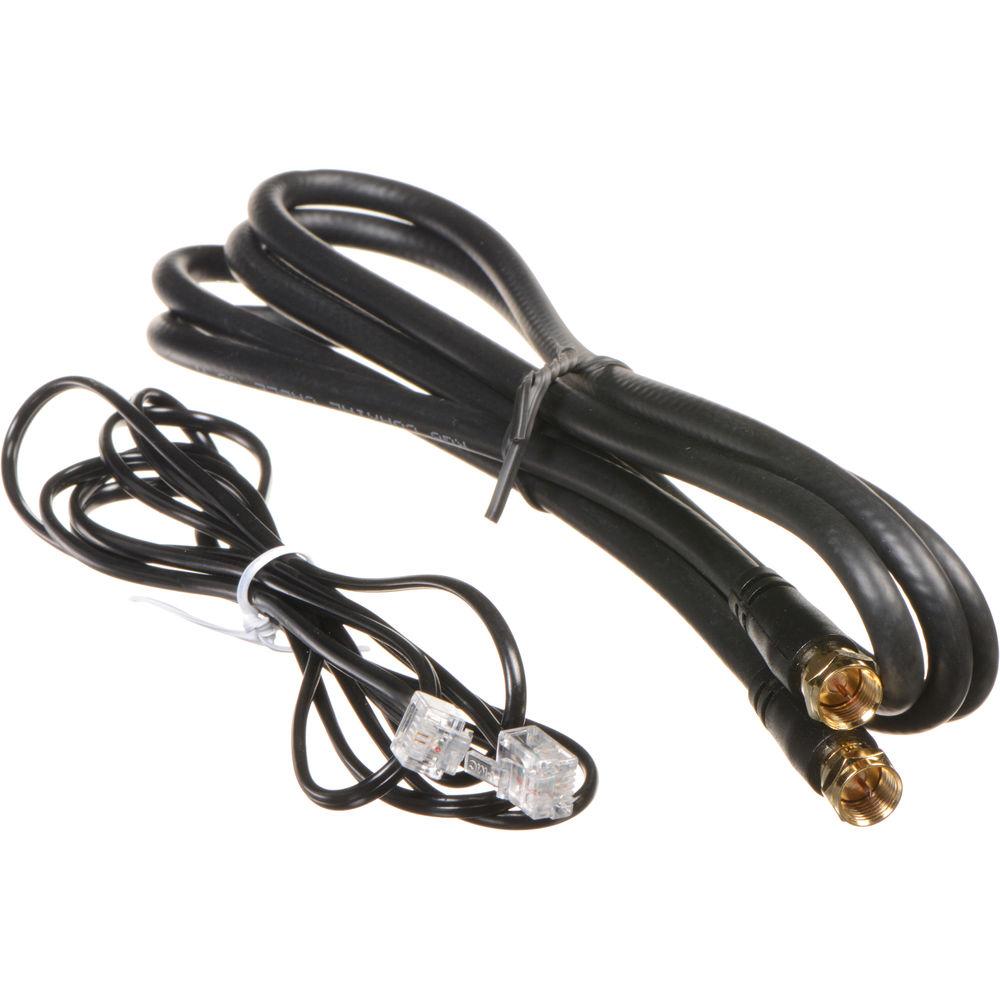

UPC: 731304249030 In the Box APC P11VT3 SurgeArrest 11-Outlet Surge Protector (Black) Coaxial Cable Telephone Cable Limited Lifetime Warranty More from Manufacturer frfvcwaaurzzvaxxbb More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC P11VT3 SurgeArrest 11-Outlet Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC P11VT3 Specs | | | Wall Plug Type | NEMA 5-15P | | Outlets | 11 x NEMA 5-15R | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz | | Rated Current | 15 A | | Surge Energy Rating | 3020 Joules | | Clamping Response Time | < 1 ns | | Clamping Voltage | 330 V | | EMI/RFI Noise Filtration | 70 dB (100 kHz to 10 MHz) | | | | Operating Temperature | 5 to 113°F / -15 to 45°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | | | Cable Length | 8' / 2.4 m | | Cable Management | None | | Dimensions (L x W x H) | 4.6 x 1.5 x 11.8" / 119.0 x 40.0 x 302.0 mm | | Weight | 2.3 lb / 1.0 kg | | | | Package Weight | 2.67 lb | | Box Dimensions (LxWxH) | 13.5 x 7.6 x 2.4" |
