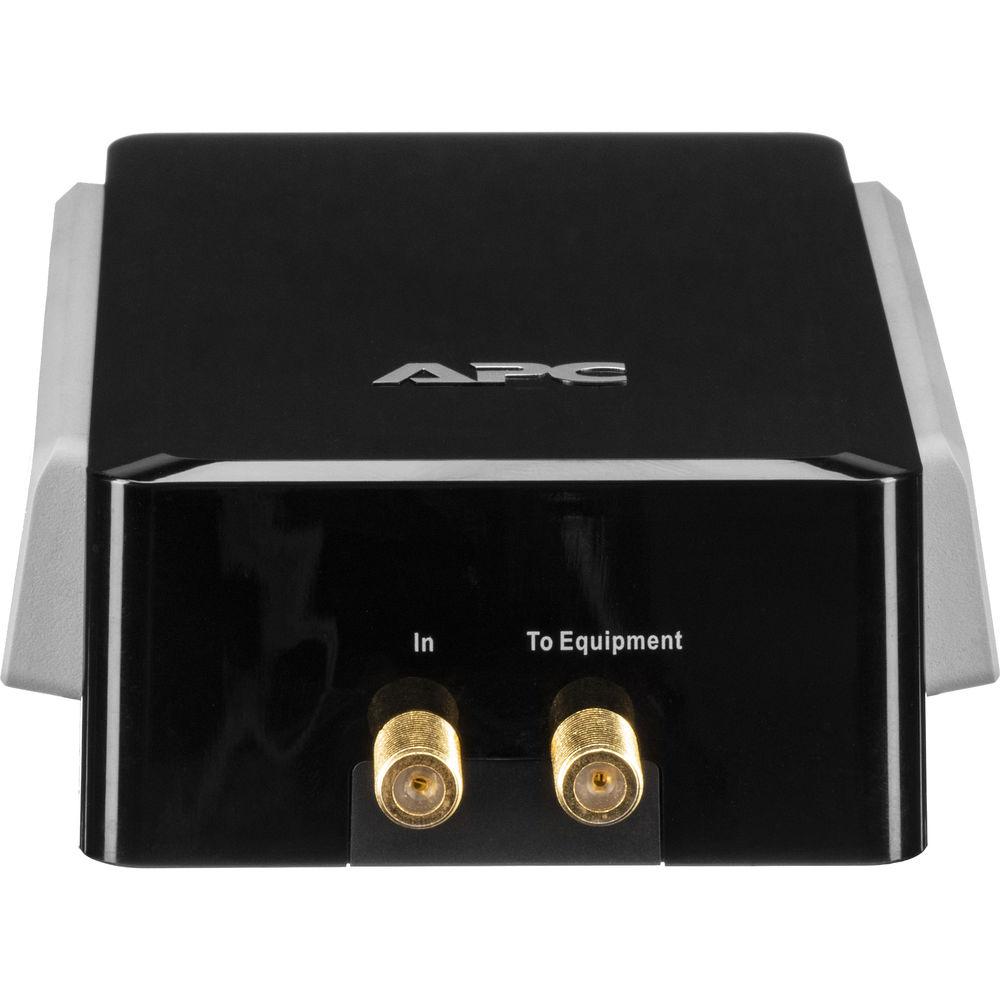

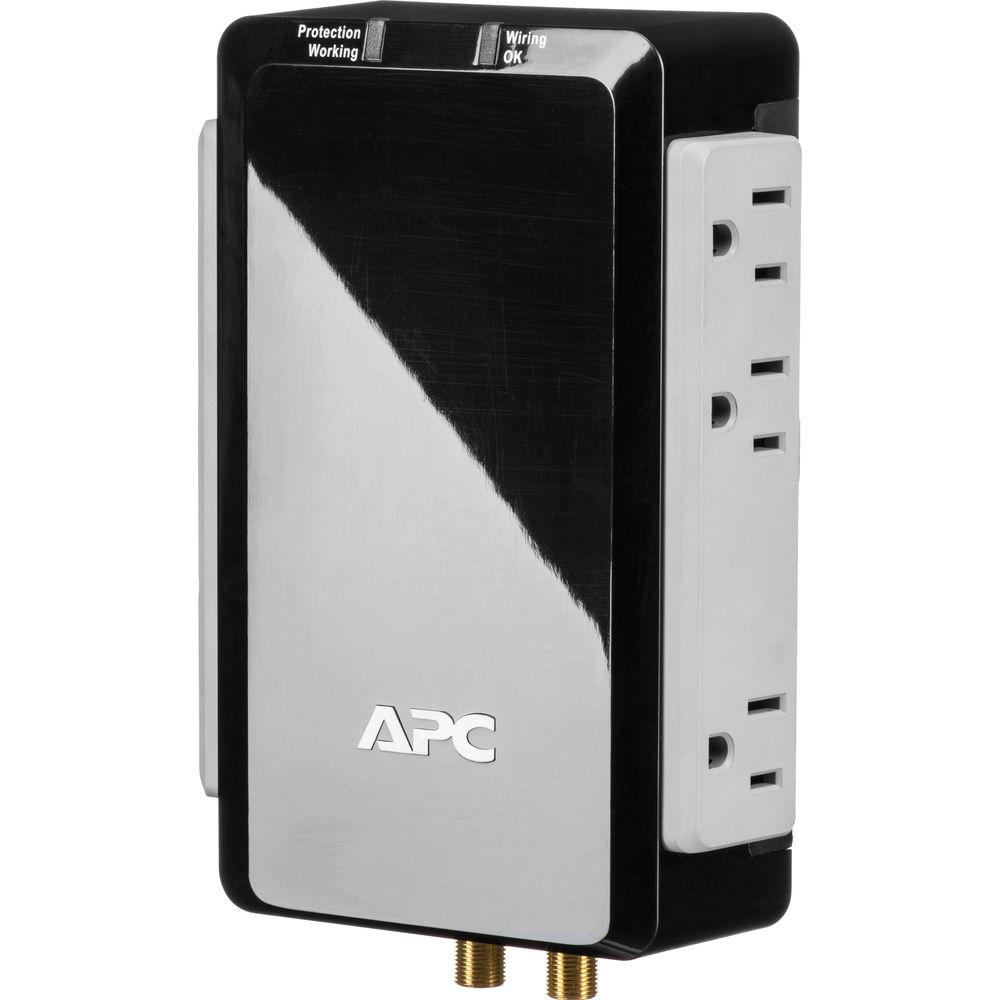

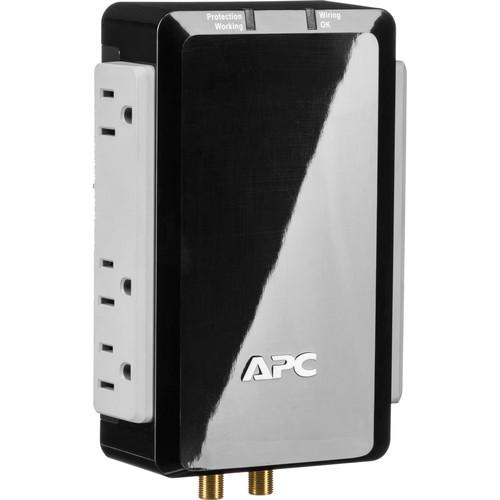

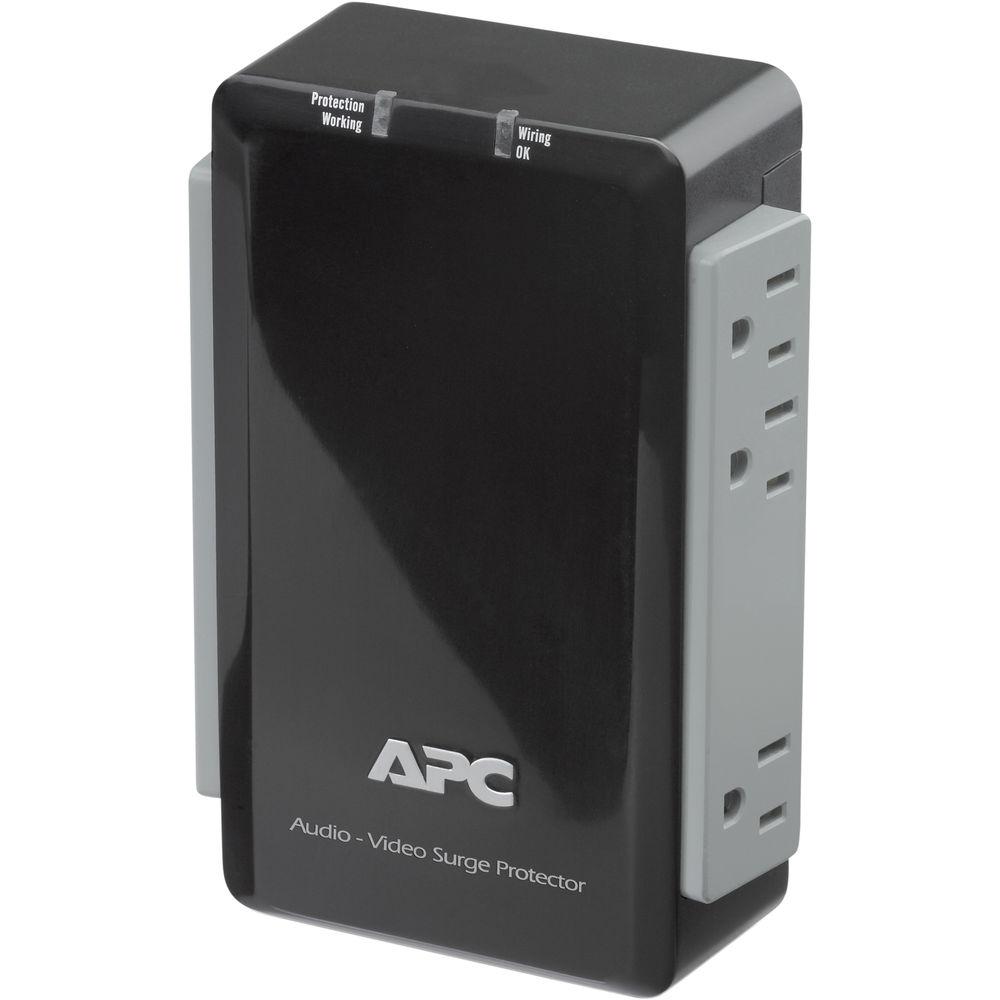

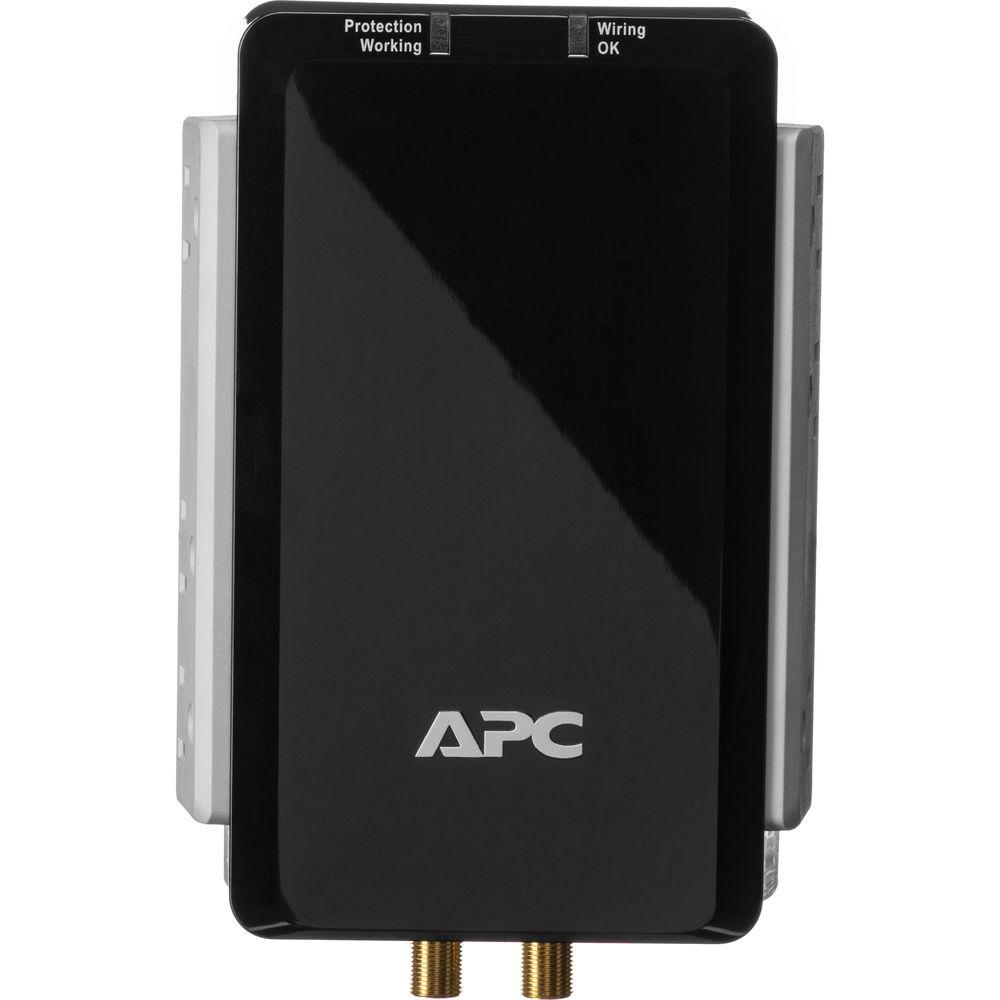

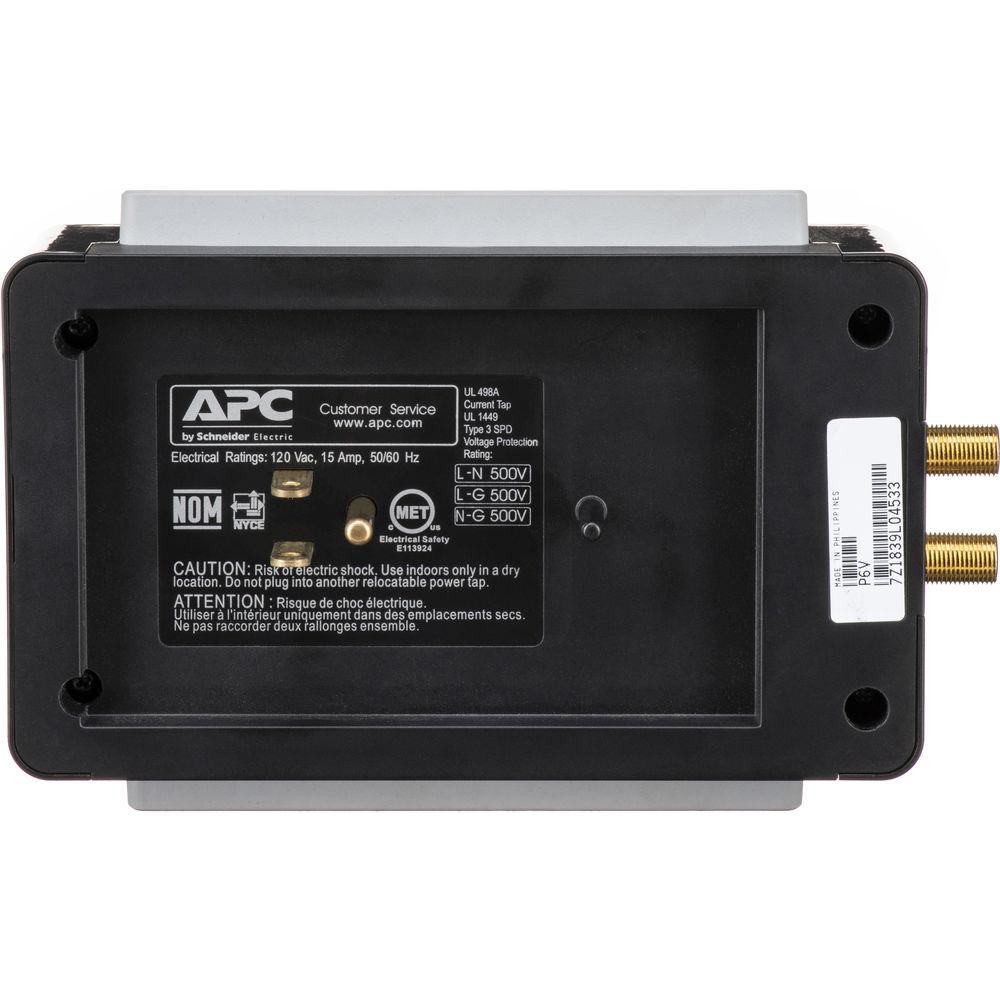

User Manual for APC P6V SurgeArrest 6-Outlet Surge Protector Click to enlarge the picture
Contents of the user manual for the APC P6V SurgeArrest 6-Outlet Surge Protector
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
 |
User manual for the APC P6V SurgeArrest 6-Outlet Surge Protector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The P6V SurgeArrest 6-Outlet Surge Protector from APC allows you to power up to six electronic devices using a single wall outlet. The power strip features powerful surge protection, protecting against surges of up to 1700 joules in strength. This is a great surge protector that can give your computer the protection it requires. - Fail Safe Mode
- Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest is fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment
- Protection Working Indicator
- SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge
- Noise Filtering
- Surge Protector attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment
- Building Wiring Fault Indicator
- Indicator immediately warns you of wiring problems like improper grounds that could cause shocks or prevent adequately suppressing surges
- UL 1449 Compliance
- The 'Institute of Electrical and Electronics Engineers' (IEEE) Let-Through Voltage rating is based on a test that subjects a Surge Protector to a 6,000 volt spike. The rating equates to the amount of excess voltage that reaches connected equipment. The lower the number, the better the performance of the Surge Protector is. Underwriter's Laboratory's UL 1449 surge protection safety standard uses these ratings to help users gauge performance. UL's best Transient Voltage Surge Suppressor (TVSS) Let-Through Voltage rating is "300V"
- Catastrophic Event Protection
- SurgeArrest components such as MOVs and thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges
- Lightning and Surge Protection
- To prevent damage to your equipment from power surges and spikes
- Transformer Block Spacing
- Connect bulky transformer block plugs without covering up other outlets
- 6-Outlets
- Enough outlets for your game console, TV and four other electronic devices. Protection from surges, spikes and even lightning is guaranteed
UPC: 731304260134 In the Box APC P6V SurgeArrest 6-Outlet Surge Protector Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC P6V SurgeArrest 6-Outlet Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC P6V Specs | | | Outlets | 6 | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz | | Surge Energy Rating | 1700 Joules | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Cable Management | None | | Dimensions (L x W x H) | 4.5 x 6.5 x 2.3" / 114.0 x 165.0 x 57.0 mm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.6 x 7.2 x 2.8" |
