User Manual for APC P7GB SurgeArrest Essential 120V 7-Outlet Surge Protector Click to enlarge the picture
Contents of the user manual for the APC P7GB SurgeArrest Essential 120V 7-Outlet
- Product category: Power Strips APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC Power Strips
|
User manual for the APC P7GB SurgeArrest Essential 120V 7-Outlet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

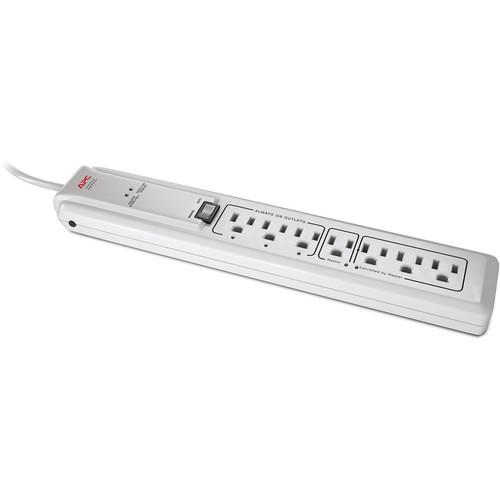

Product description The 4', white P7GB SurgeArrest Essential 120V 7-Outlet Surge Protector from APC allows you to power up to seven electronic devices using a single wall outlet. It features lightning and surge protection, which protects your equipment from electric power surges and spikes. This surge protector warns you if its circuitry has been damaged by heavy strike or power line surge. Furthermore, the building wiring fault indicator LED informs users of potentially dangerous wiring problems in the wall circuit. - Three Modes of Protection (L-N : L-G : N-G)
- The surge protector offers multi-stage protection between the three wires (Line to Neutral, Line to Ground, and Neutral to Ground). In the event a mode of protection is compromised as a result of a surge, the remaining modes continue to provide protection
- Always on Outlets
- The seven-outlet model offers 3 always on outlets as well as one master outlet and three controlled by master outlets. In case you have equipment that has to stay on all the time, such as a fax machine, you can plug it in always-on outlets. The equipment will be protected and will have power supply even when the unit is switched off
- EMI and RFI Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment
- Power-Saving Outlets
- Automatically cuts power to idle equipment to conserve electricity
- Fail Safe Mode
- The SurgeArrest is fail safe; once the circuit of a SurgeArrest has been compromised, the unit disconnects equipment from the power supply to ensure that no damaging surges reach the equipment
- Protection Working Indicator
- This surge protector warns you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide complete protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge
- Building Wiring Fault Indicator
- The building wiring fault indicator LED informs users of potentially dangerous wiring problems in the wall circuit
- Lightning and Surge Protection
- The less than 400V let-through voltage rating, helps protects your equipment from electric power surges and spikes
- IEEE Let-Through Ratings and Regulatory Agency Compliance
- This surge protector has undergone testing by IEEE and possesses "let-through ratings," which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. This device complies with local agency safety requirements, including UL in North America and ZE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions
- Equipment Protection Policy
- Lifetime $50000 equipment protection policy
- Computer Compatibility
- The "Power-Saving Outlets" feature will work regardless of whether a desktop computer, laptop, or netbook is used as the master device
UPC: 731304269243 In the Box APC P7GB SurgeArrest Essential 120V 7-Outlet Surge Protector (4', White) Limited Lifetime Warranty More from Manufacturer uxdbxextaezs More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC P7GB SurgeArrest Essential 120V 7-Outlet Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC P7GB Specs | | | Wall Plug Type | NEMA 5-15P | | Outlets | 7 x NEMA 5-15R | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz | | Rated Current | 15 A | | Surge Energy Rating | 1080 Joules | | Maximum Spike Current | 72,000 A | | Clamping Response Time | < 1 ns | | Clamping Voltage | 400 V | | | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 23 to 113°F / -5 to 45°C | | Storage Humidity | 0 to 95% | | | | Cable Length | 4' / 1.2 m | | Cable Management | None | | Dimensions (L x W x H) | 2.7 x 15.2 x 1.4" / 6.9 x 38.6 x 3.6 cm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 19.25 x 7.18 x 2.0" |
