Product description - APC - ESSENTIAL SRGEARST 6O w/5V/2-USB/120V

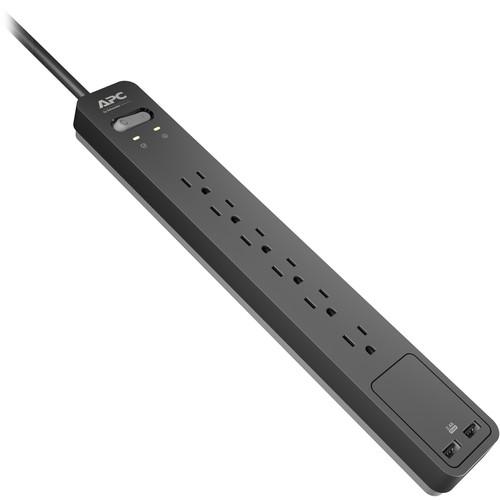

Power disturbances such as surges, lightning, and power grid fluctuations can have a negative impact on the electronics you rely on everyday. To this extent, the APC PE6U2 Essential SurgeArrest 6-Outlet Surge Protector with USB Charging helps to provide basic protection against power surges and spikes for computers and similar electronics. It has six NEMA 5-15R outlets, one NEMA 5-15P input, an input/output voltage of 104-126 VAC, a 15A input/output current, a line frequency of 50/60 Hz, and a surge energy rating of 1080 joules. It also has two integrated 2.4A USB Type-A charging ports for devices such as smartphones and tablets, and one of those ports is equipped with Smart Charging technology to help maximize charging speeds according to the type of device detected. This SurgeArrest model utilizes an integrated 6' power cord, is protected by a limited lifetime warranty, and connected equipment that is damaged while the SurgeArrest is active will be covered up to $50,000. Protection - Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, helping to ensure better performance of protected equipment.
- IEEE Let-Through Ratings and Regulatory Agency Compliance
- APC surge protectors undergo testing by the IEEE and are awarded "let-through ratings," which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers a let-through rating of less than 330V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
- Lightning and Surge Protection
- To prevent damage to your equipment from electric power surges and spikes.
Safety - Catastrophic Event Protection
- SurgeArrest components such as MOVs and Thermal Fuse help ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
- Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Protection Working Indicator
- SurgeArrest will warn you if its circuitry has been damaged by a heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
- Fail Safe Mode
- Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest contains fail safe protection, which means that once the circuit of an APC SurgeArrest has been compromised, the unit disconnects equipment from the power supply, helping to ensure that no damaging surges reach your equipment.
Other - EMI and RFI Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
- Right Angle Plug
- This plug angle allows for equipment and furniture to be placed closer to the wall than with a standard power cord. It also helps to reduce cord stress.
- USB and Smart Charging
- A 2.4A USB port integrates Smart Charging technology to help maximize charging speeds according to the type of device detected. In total, there are two 2.4A USB ports that can simultaneously charge mobile devices, including smartphones and tablets.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Data-Line Protection
- Protection of data lines (ethernet, coaxial, and phone) helps ensure complete protection of your equipment from surges. It is very important to protect your equipment from "back door" electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
UPC: 731304328933 In the Box APC PE6U2 Essential SurgeArrest 6-Outlet Surge Protector with USB Charging (Black) $50,000 Lifetime Equipment Protection Policy Limited Lifetime Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC PE6U2 Essential SurgeArrest 6-Outlet Surge Protector with USB Charging in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC PE6U2 Specs | | | Wall Plug Type | NEMA 5-15P (Right-Angle) | | Outlets | 6 x NEMA 5-15R | | USB Ports | 2 x USB Type-A | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz | | Rated Current | 15 A | | Surge Energy Rating | 1080 Joules | | USB Output | 5 V, 2.4 A | | Maximum Spike Current | 48,000 A | | Clamping Response Time | < 1 ns | | EMI/RFI Noise Filtration | 35 to 70 dB | | | | Certifications | RoHS, as per Manufacturer | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | | | Cable Length | 6' / 1.8 m | | Cable Management | None | | Dimensions (L x W x H) | 1.8 x 2.0 x 13.7" / 4.6 x 5.2 x 34.8 cm | | Weight | 1.2 lb / 0.5 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 15.3 x 4.6 x 1.7" |
