User Manual for APC PNOTEPROC6 SurgeArrest Notebook with 3-Pin Connection Click to enlarge the picture
Contents of the user manual for the APC PNOTEPROC6 SurgeArrest Notebook with 3-Pin
- Product category: UPS Accessories APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Accessories
|
User manual for the APC PNOTEPROC6 SurgeArrest Notebook with 3-Pin contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

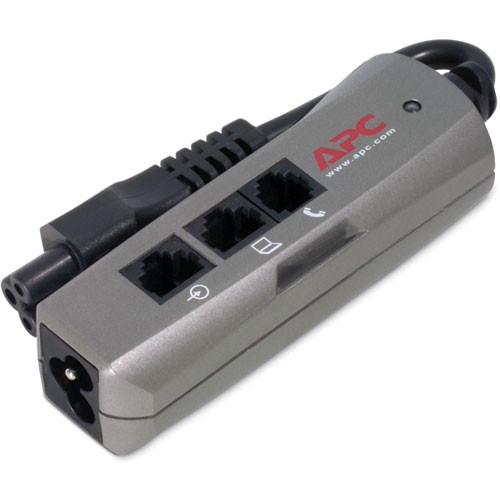

Product description The PNOTEPROC6 SurgeArrest Notebook with 3-Pin Connection from APC is a unit designed to provide total protection of your notebook computer and telephone or fax machine. Instead of just protecting your equipment from electrical power surges via power cords, this unit also allows you to connect a telephone line and Ethernet cable for comprehensive protection of all your equipment. Simply place this device between your notebook computer and your power cord, connect your telephone line and network cable, and your equipment is safeguarded.
A failsafe mechanism completely disconnects your equipment from the power source in case of a power surge. The unit also offers noise filtering to minimize EMI/RFI interference that can often cause data errors and keyboard lockups. It comes with a lifetime guarantee and $75,000 worth of equipment protection. This model features a 3-pin connection. - Complete Protection
- Use this unit for complete protection of your notebook computer, telephone line, and network cable.
- Noise Filter
- A built-in filter reduces interference that can cause problems with the performance of your equipment.
- Equipment Protection
- This model guarantees prevention of damage to your electronics with an equipment-protection policy.
UPC: 731304220701 In the Box APC PNOTEPROC6 SurgeArrest Notebook with 3-Pin Connection Surge Protector 2 x 5.9' Telephone Lines 12" Patch Cable Set of Cord Management Straps User Manual Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC PNOTEPROC6 SurgeArrest Notebook with 3-Pin Connection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC PNOTEPROC6 Specs | Construction | Plastic | | Finish | Gray, black | | Power | Number of Outlets: (1) IEC 320-C6
Nominal Input Voltage: 120V
Input Frequency: 50/60Hz
Input Connections: IEC 320 C6
Maximum Line Current per Phase: 4A
Surge Energy Rating: 600 joules
Peak Current Normal Mode: 6.50k amps
Peak Current Common Mode: 12k amps
NM Surge Response Time (ns): 1ns
Dataline Protection:
RJ-11 modem/fax protection (two-wire single line)
RJ45 10/100 Base-T Ethernet protection
Let Through Voltage Rating: < 330 | | Standards | Regulatory Approvals: CSA, FCC Part 68, NOM, UL Listed
UL 1449 TVSS Rating: 700V | | Dimensions (HxWxD) | Product Dimensions: 1.1 x 1.26 x 4.33” (28 x 32 x 110mm)
Shipping Dimensions: 2.72 x 6.22 x 7.76” (69 x 158 x 197mm) | | Weight | Product Weight: 0.22 lbs (0.1kg)
Shipping Weight: 0.42 lbs (0.19kg) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 3.0" |
