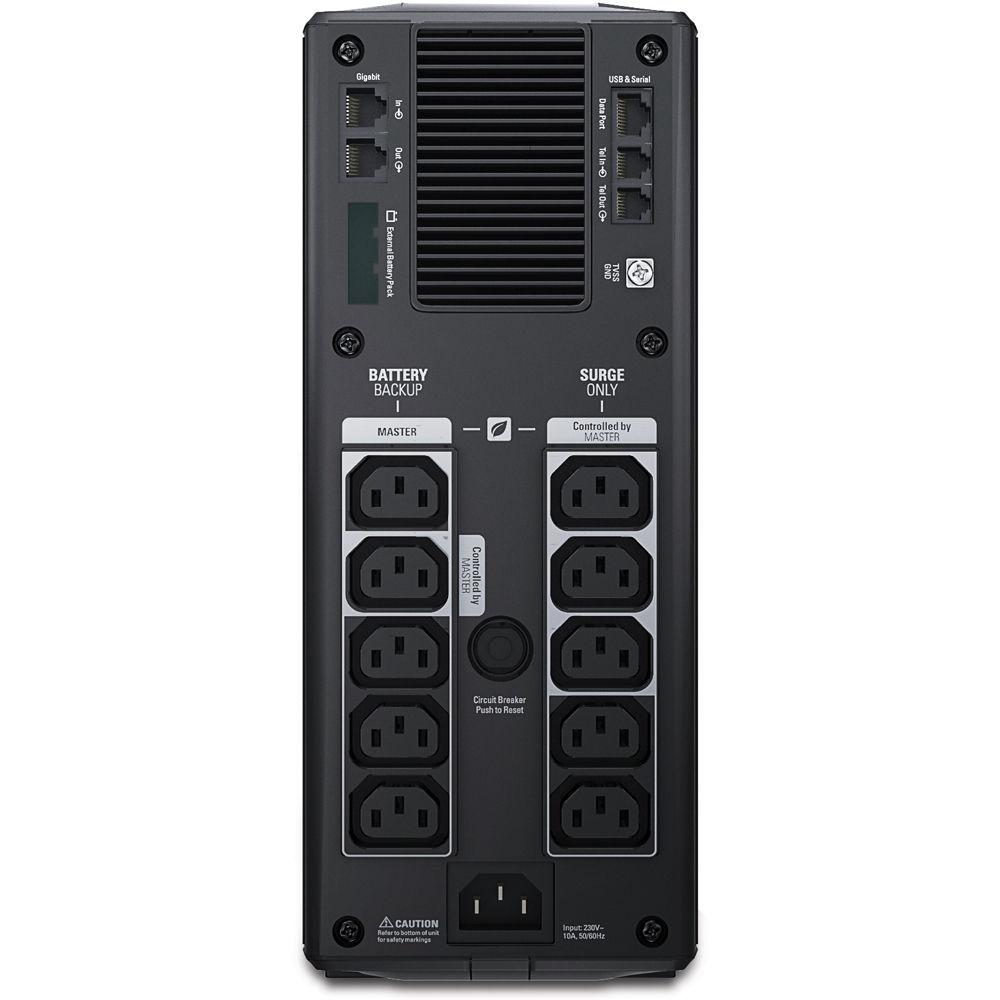

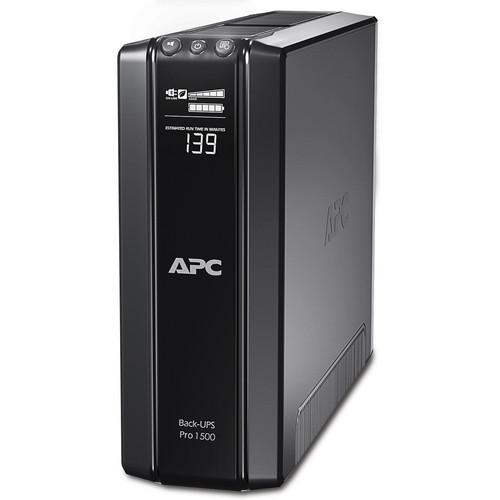

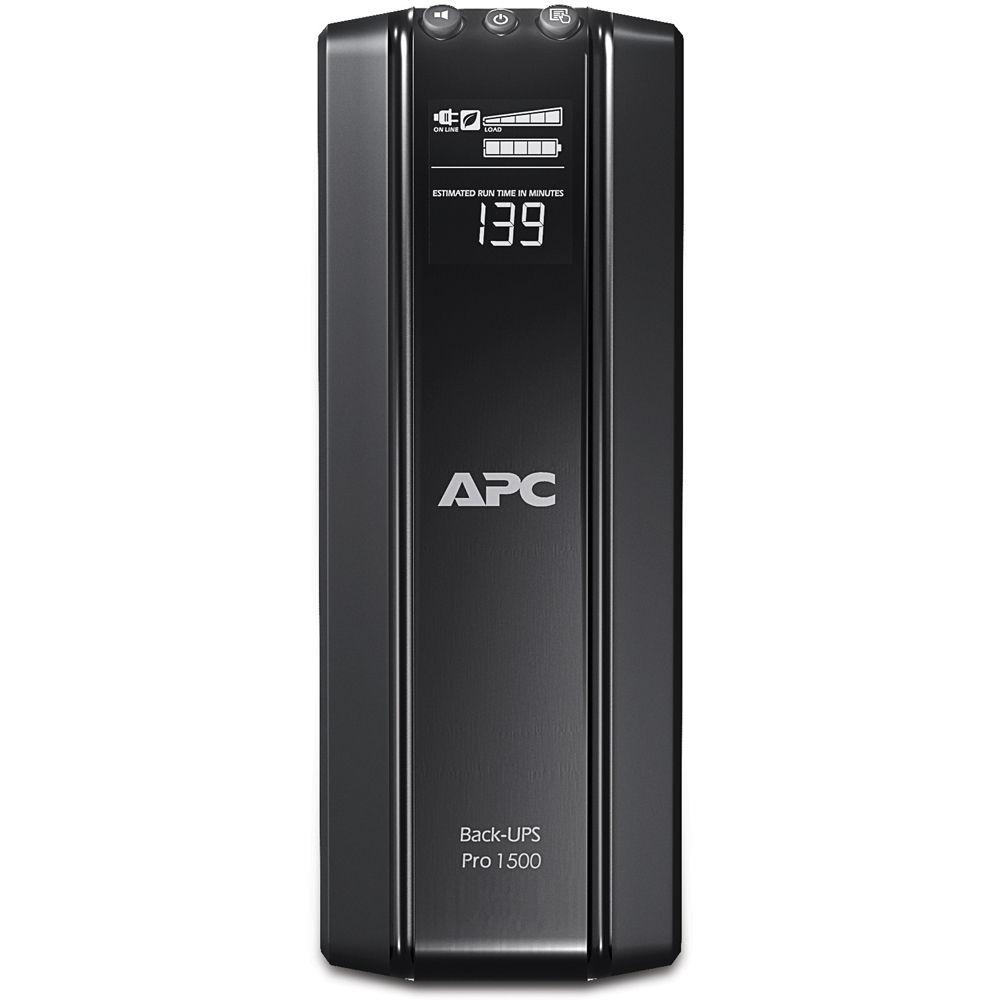

User Manual for APC Power-Saving Back-UPS Pro 1500 International Version Click to enlarge the picture
Contents of the user manual for the APC Power-Saving Back-UPS Pro 1500 International
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
 |
User manual for the APC Power-Saving Back-UPS Pro 1500 International contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Power-Saving Back-UPS Pro 1500 International Version (230V) from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery. Note: This item has a 230V input/output power and is intended for use in countries where this power is the standard. - Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Power-Saving Outlets
- Automatically cut power to idle equipment to conserve electricity
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse
- Battery-Protected and Surge-Only Outlets
- Reserves power capacity and run time for connected equipment that require battery back-up while providing surge-only protection for less critical equipment
- Cold-Start Capable
- Provides temporary battery power when the utility power is out
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power
- Dataline Surge Protection
- Provides protection of connected equipment from power surges on the data lines
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
- Audible Alarms
- Provides notification of changing flywheel conditions
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries without tools to reduce Mean Time to Repair (MTTR)
- USB Connectivity
- Provides management of the UPS via a USB port
- Serial Connectivity
- Use any Home Automation network to monitor and control the unit through its RS-232 serial port
- Transformer Block Spacing
- Connect bulky transformer block plugs without covering up other outlets
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging
- Safety Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment
- Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit
- No Tool Battery Replacement
- Allows quick, easy battery replacement.
- LCD Graphics Display
- Text and mimic diagrams that display modes of operation, system parameters and alarms
UPC: 731304268741 In the Box APC Power-Saving Back-UPS Pro 1500 International Version (230V) CD with Software 2 x Detachable 6 ft (2 m) IEC Power Cords Telephone Cable USB Cable Limited 2-Year Warranty Limited 3-Year Repair or Replace Warranty for European Union Countries Manual PDF 249.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Power-Saving Back-UPS Pro 1500 International Version in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC BR1500GI Specs | | | Total Outlets | 10 | | Protected Outlets | 5 x IEC-320 C13 (Battery and Surge) | | Plug Type | IEC-320 C14 | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Noise Filtering | 10% | | Topology | Line Interactive | | | | Surge Energy Rating | 441 Joules | | Maximum Wattage | 865 W | | Nominal Input Voltage | 230 VAC | | Input Voltage Adjustable Range | 156 to 300 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 230 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Load Capacity | 1500 VA | | Circuit Breaker Rating | 10 A | | Crest Factor | 3:1 | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Full-Load Runtime | 8 Minutes | | Half-Load Runtime | 20 Minutes | | Charging Time | 8 Hours | | Replacement Battery | APCRBC124 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 23 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | REACH, RoHS, as per Manufacturer | | | | Dimensions (W x H x D) | 11.9 x 4.4 x 15.0" / 302.0 x 112.0 x 382.0 mm | | Weight | 25.5 lb / 11.6 kg | | | | Package Weight | 30.8 lb | | Box Dimensions (LxWxH) | 19.2 x 15.6 x 9.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
