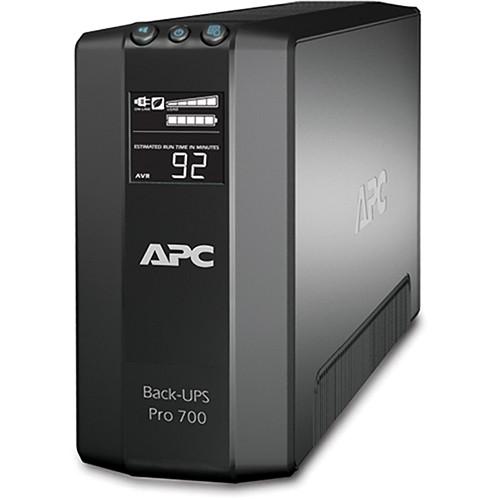

User Manual for APC Power-Saving Back-UPS Pro 700 Click to enlarge the picture
Contents of the user manual for the APC Power-Saving Back-UPS Pro 700
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Power-Saving Back-UPS Pro 700 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description - APC by Schneider Electric - Identifying LCD Icons
The Power-Saving Back-UPS Pro 700 (120V) from APC provides power to your important computer components in the event of an electrical outage. The Uninterruptible Power Supply (UPS) contains a battery which continues to power computers, monitors and other components if the electricity is cut from them. An LCD status display provides information including remaining battery life, load capacity, and event notices. The battery is hot-swappable and easy to replace. An audible alarm alerts you of events like power outage and low battery. - Battery and Surge Protected Outlets
- Back up and protect your hardware and data during power outages, surges and spikes.
- DataLine Surge Protection
- Provides protection of connected equipment from power surges on the data lines.
- Surge Only Outlets
- Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
- Energy Management Function
- Energy saving feature automatically power off peripherals when the a master device, usually a PC, hibernates or is shut down. Power to peripherals is immediately restored when the master device wakes up or is switched on.
- Boost and Trim Automatic Voltage Regulation (AVR)
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Customizable Voltage-Transfer Points
- Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.
- Customizable Voltage Sensitivity
- Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Transformer-Block Spaced Outlets
- Protect equipment with input transformer blocks without blocking access to other receptacles.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Simple Battery Replacement
- Increases UPS availability by allowing quick, easy battery replacement.
- USB Connection
- Use your PC to access additional power protection and management features for your UPS via a USB Port.
- LCD Status Display
- Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Audible Alarms
- Provides notification of changing utility power and UPS power conditions
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
UPC: 731304266792 In the Box APC Power-Saving Back-UPS Pro 700 (120V) CD with Software USB Cable User Manual Limited 3-Year Warranty More from Manufacturer More info from APC Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Power-Saving Back-UPS Pro 700 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC BR700G Specs | | | Total Outlets | 6 | | Protected Outlets | 3 x NEMA 5-15R (Battery and Surge)
3 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ11, RJ45 | | Communications | USB | | Noise Filtering | 5% | | | | Surge Energy Rating | 354 Joules | | Maximum Current | 12 A | | Maximum Wattage | 420 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 93 to 130 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Load Capacity | 700 VA | | Circuit Breaker Rating | 15 A | | Maximum Efficiency | 87% | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Charging Time | 12 Hours | | Replacement Battery | RBC17 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 23 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | REACH, RoHS, as per Manufacturer | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 7.5 x 3.6 x 12.2" / 190.0 x 91.0 x 310.0 mm | | Weight | 15.9 lb / 7.2 kg | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 17.2 x 9.9 x 5.6" |
