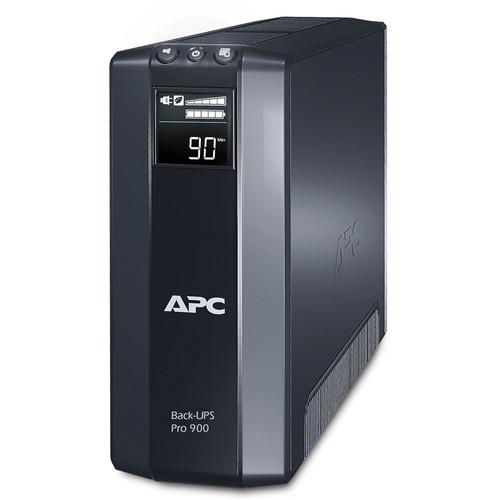

User Manual for APC Power-Saving Back-UPS Pro 900 Click to enlarge the picture
Contents of the user manual for the APC Power-Saving Back-UPS Pro 900
- Product category: UPS Backup APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Backup
|
User manual for the APC Power-Saving Back-UPS Pro 900 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|
Product description The Power-Saving Back-UPS Pro 900 (230V) from APC provides abundant battery backup power, so that you can work through medium and extended length power outages. It safeguards your equipment against damaging surges and spikes that travel along utility and data lines. The automatic voltage regulation (AVR) feature instantly adjusts high and low voltages to safe levels, helping you to work without interruptions during brownouts and overvoltages.
The Back-UPS Pro also includes “green” features, such as power-saving outlets that automatically turn off idle peripherals. A high efficiency charging system and “AVR Bypass” also reduce power consumption. With the rest of the Back-UPS Pro’s standard features, this is the perfect unit to protect your productivity from the constant threat of bad power and lost data. - Green Mode
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery Failure Notification
- Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
- Power-Saving Outlets
- Automatically cuts power to idle equipment to conserve electricity.
- Resettable Circuit Breaker
- Easy recovery from overloads; no need to replace a fuse.
- Battery-Protected and Surge-only Outlets
- Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment.
- Cold-Start Capable
- Provides temporary battery power when the utility power is out.
- Hot-Swappable Batteries
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
- Disconnected Battery Notification
- Warns when a battery is not available to provide backup power.
- Dataline Surge Protection
- Provides protection of connected equipment from power surges on the data lines.
- Automatic Self-Test
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Adjustable Voltage-Transfer Points
- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable Voltage Sensitivity
- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Audible Alarms
- Provides notification of changing utility power and UPS conditions.
- User-Replaceable Batteries
- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair.
- USB Connectivity
- Provides management of the UPS via a USB port (not available on all models).
- Serial Connectivity
- Provides management of the UPS via a serial port.
- Transformer-Block Spaced Outlets
- Protect equipment with input transformer blocks without blocking access to other receptacles.
- Boost and Trim Automatic Voltage Regulation
- Gives higher application availability by correcting low and high voltage conditions without using the battery.
- Intelligent Battery Management
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Safety-Agency Approved
- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
- Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Battery Replacement Without Tools
- Allows quick, easy battery replacement.
- LCD Graphics Display
- Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Unattended Shutdown
- This ensures that files are saved and the Operating System is properly shutdown in the event of a sustained power outage.
- Ethernet Protection
- Shields hardware from damage.
- Additional Surge Protected Outlets
- Surge Only outlets can be used for non-data sensitive equipment like scanners and printers that don't require data to be saved in case of power outage. This helps to maximize battery power for equipment that need to have data saved like a computer and monitor
- Site Wiring Fault Indicator
- Immediately warns you of wiring problems like improper grounds that could cause shocks or prevent the UPS from adequately suppressing surges. (120V units only)
- Automatic Self Test
- Biweekly testing of all internal components, including the battery, ensures your unit is ready when you need it.
- Easy Overload Recovery
- Push-button circuit breaker instead of a standard fuse eliminates the need to return the unit to the factory for service.
UPC: 731304279594 In the Box APC Power-Saving Back-UPS Pro 900 (230V) USB Cable 2 x Detachable 1.8 m IEC Power Cords CD With Software User Manual Warranty Card 3 Year Warranty For EU Countries 2 Year Warranty For The Rest of The World More info from APC avszadeqyy Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Power-Saving Back-UPS Pro 900 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC BR900GI Specs | | | Total Outlets | 8 | | Plug Type | IEC-320 C14 | | Data Line Protection | RJ11, RJ45 | | Communications | USB | | Noise Filtering | 10% | | | | Surge Energy Rating | 680 Joules | | Maximum Current | 8 A | | Maximum Wattage | 540 W | | Nominal Input Voltage | 230 VAC | | Input Voltage Adjustable Range | 168 to 302 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 230 VAC | | Output Frequency | 50/60 Hz ± 3 Hz | | Load Capacity | 900 VA | | Circuit Breaker Rating | 10 A | | Maximum Efficiency | 81% | | Crest Factor | 3:1 | | Waveform | Simulated Sine Wave | | | | Cells | 1 | | Chemistry | Lead-Acid | | Charging Time | 8 Hours | | Replacement Battery | APCRBC123
APCRBC123J | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 45 dBA | | Certifications | REACH, RoHS, as per Manufacturer | | | | Dimensions (W x H x D) | 9.8 x 3.9 x 15.0" / 25.0 x 10.0 x 38.2 cm | | Weight | 23.6 lb / 10.7 kg | | | | Package Weight | 25.7 lb | | Box Dimensions (LxWxH) | 19.25 x 13.5 x 9.0" |
