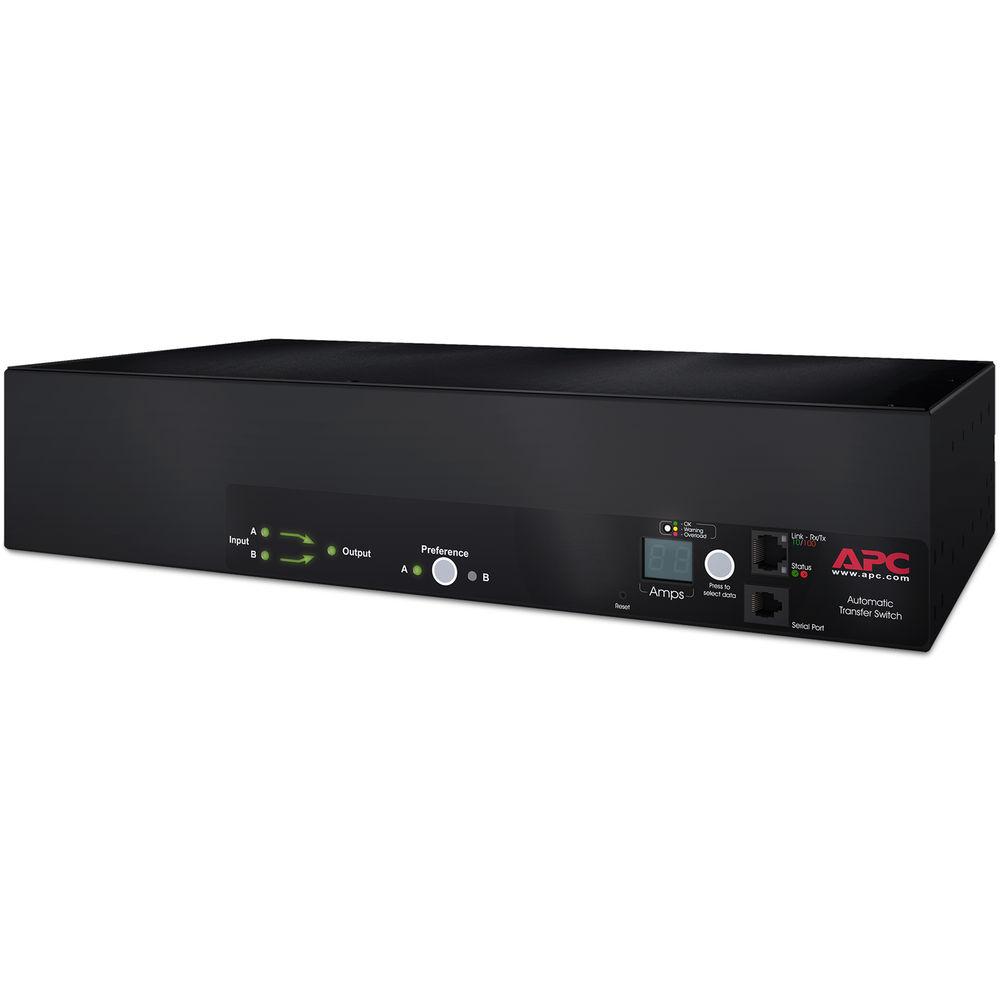

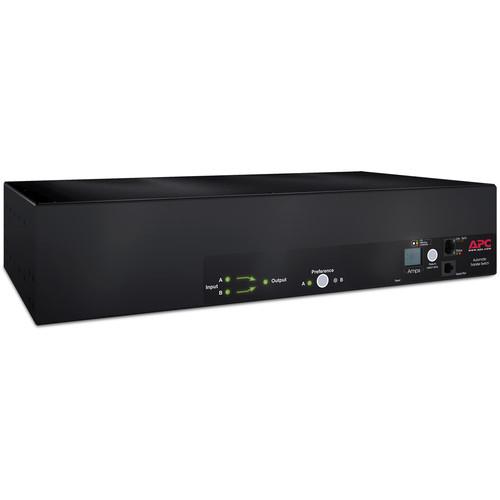

User Manual for APC Rack Automatic Transfer Switch Click to enlarge the picture
Contents of the user manual for the APC Rack Automatic Transfer Switch
- Product category: UPS Accessories APC
- Brand: APC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for APC UPS Accessories
 |
User manual for the APC Rack Automatic Transfer Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any APC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official APC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a APC product will considerably shorten its lifespan!
|

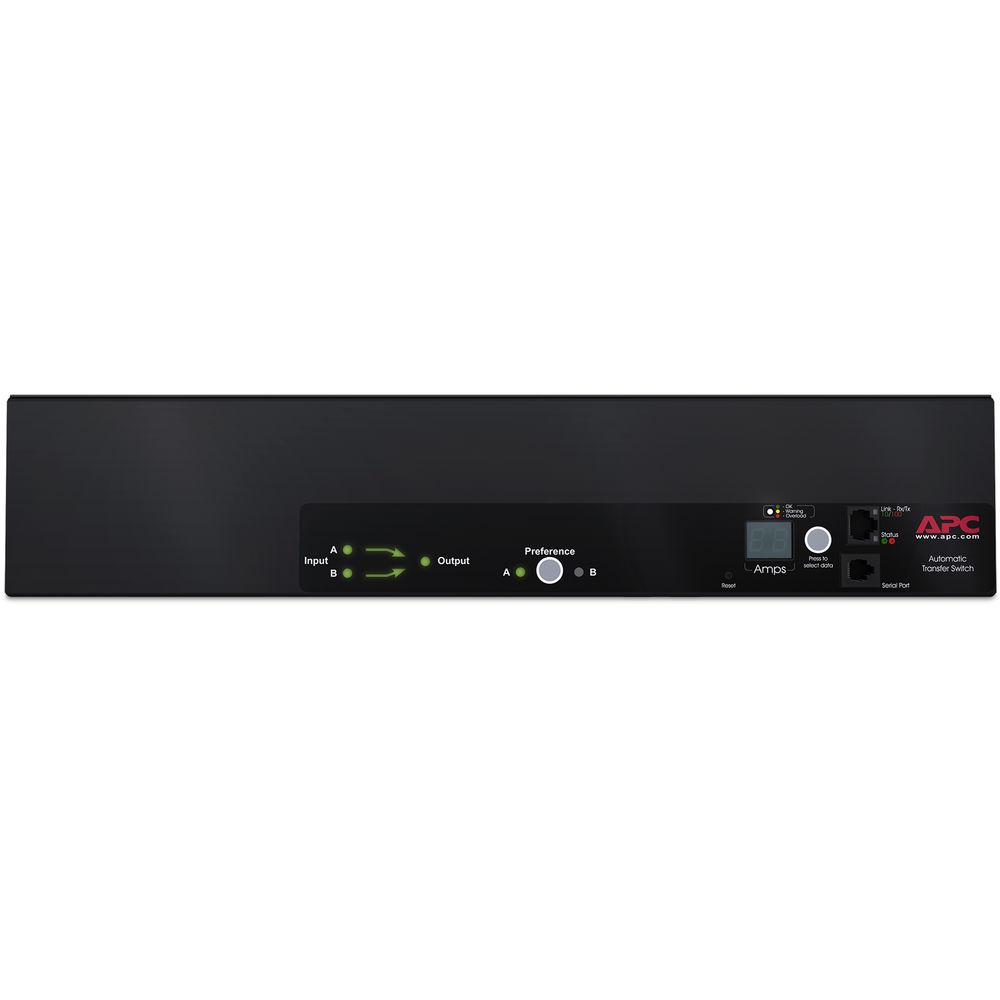

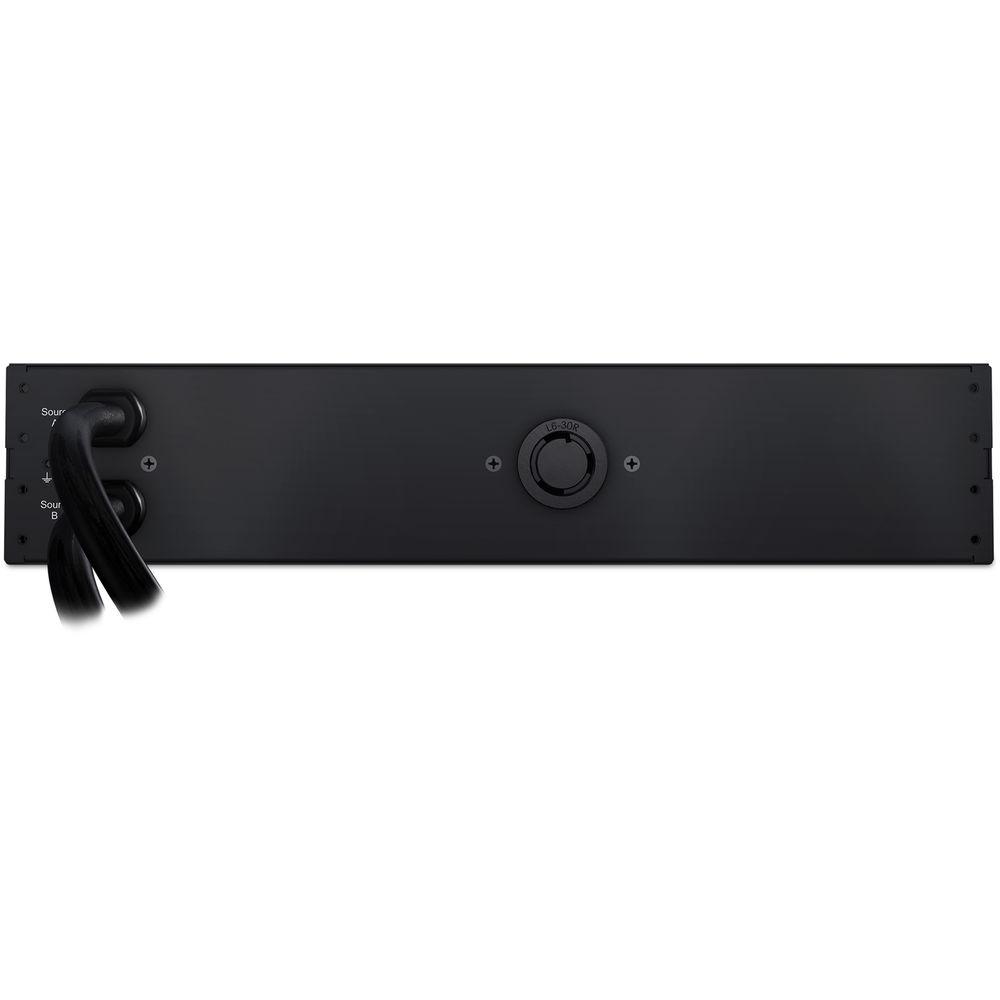

Product description The black Rack Automatic Transfer Switch (208V, 30A) from APC provides reliable, redundant power to single-corded equipment. The Rack ATS has dual input power cords that supply power to the connected load. If the primary source becomes unavailable, the Rack ATS will seamlessly switch power from the secondary source without interrupting critical loads. Networked units have built-in network connectivity, which allows for remote management via web, SNMP or Telnet interfaces. - Local Current Monitoring Display
- The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
- Wide Range of Input and Output Connections
- The Rack ATS includes a variety of input and output connections to distribute 120V, 208V or 230V power to multiple outlets. This feature allows users to adapt to varying power requirements.
- Remote Management Capabilities
- The Rack ATS has full-featured network management interfaces that provide standards-based management via web, SNMP and Telnet. This enables users to access, configure and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
- Dual-Input Power Sources
- Dual-input power sources supply redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.
UPC: 731304299882 In the Box APC Rack Automatic Transfer Switch (208V, 30A, Black) 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the APC Rack Automatic Transfer Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAPC AP7731 Specs | | | Maximum Current Draw | 30A | | Output Connections | 1x NEMA L6-30R | | | | Nominal Input Voltage | 200 to 208 VAC | | Input Frequency | 50-60 Hz | | Input Current | 24 A (North America) | | Input Connectors | NEMA L6-30P | | Cord Length | 8'(2.44 m) | | Number of Cords | 2 | | Acceptable Input Voltage | 200-240 VAC | | Maximum Line Current per phase | 30 A | | Maximum Input Current per phase | 30 A | | | | Operating Temperature | 23 to 113°F (-5 to 45°C) | | Operating humidity | 0 to 95% non-condensing | | Operating Elevation | 0 to 9842.5'(0 to 3000 m) | | Storage Temperature | -13 to 149°F (-25 to 65°C) | | Storage Relative Humidity | 0 to 95% non-condensing | | Storage Elevation | 0 to 49212.2'(0 to 15000m) | | | | RoHS Compliant | Yes | | Regulatory Approvals | FCC Part 15 Class A, ICES-003, TUV-C, TUV-NURTL, VCCI Class A | | Battery Directive Compliant | Yes | | | | Dimensions (W x H x D) | 17.00 x 3.47 x 9.30" (431.8 x 88.1 x 236.2 mm) | | Weight | 14.30 lb (6.48 kg) | | | | Package Weight | 19.2 lb | | Box Dimensions (LxWxH) | 23.0 x 14.2 x 8.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
